PRODUCT DESCRIPTION

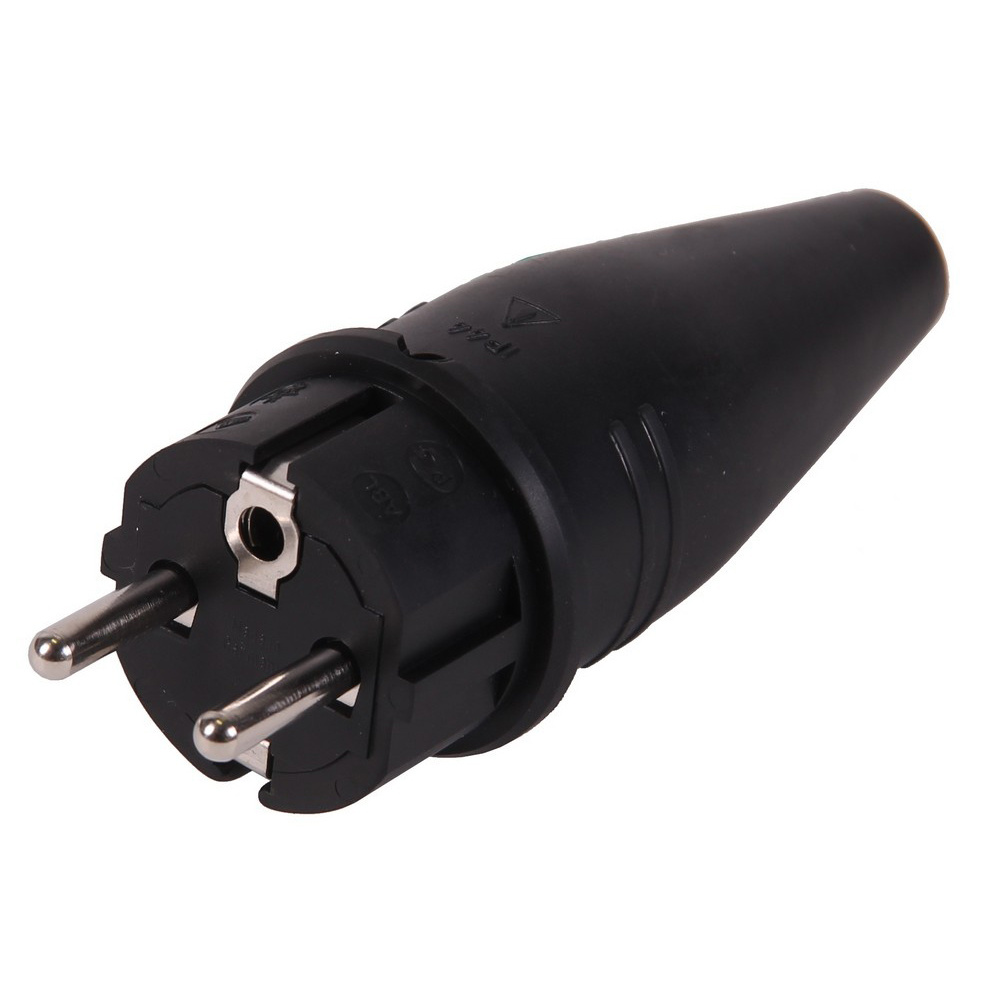

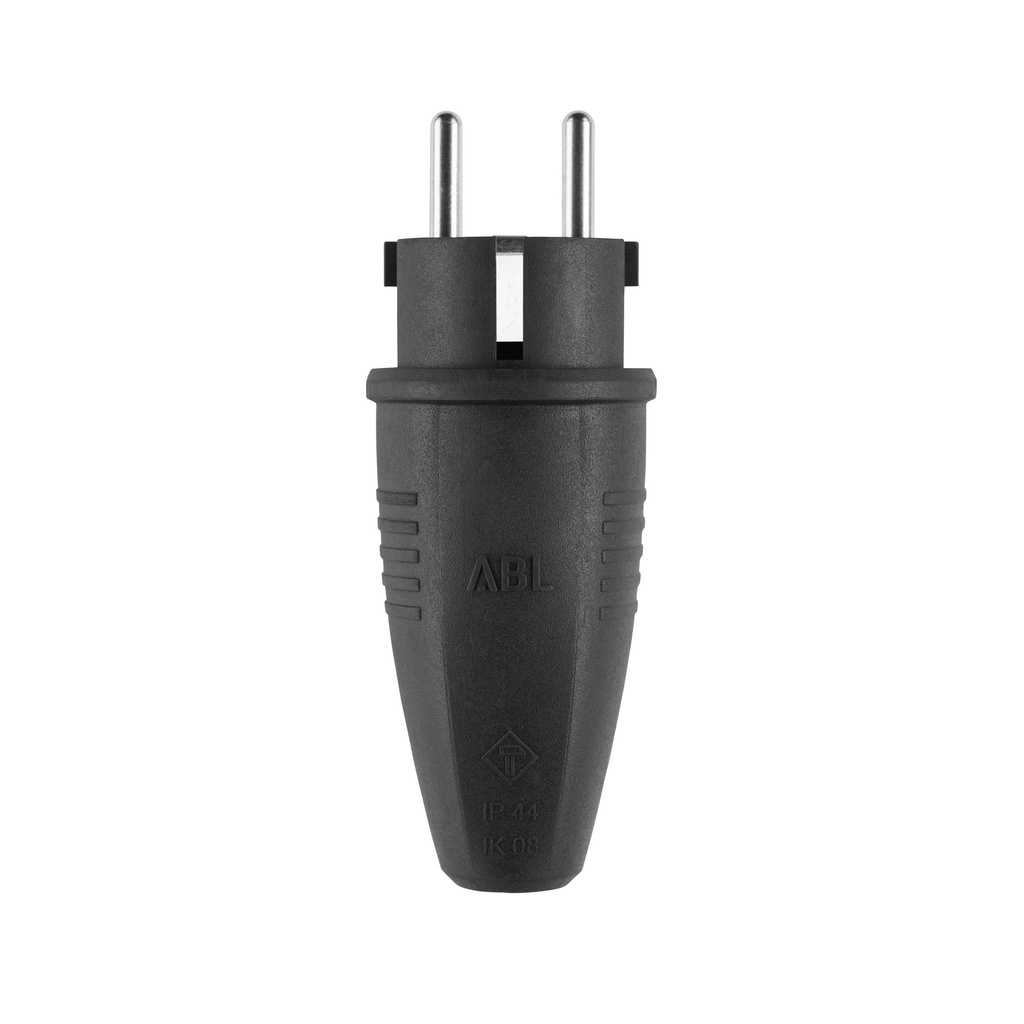

This Schuko plug from ABL is the ideal all-round connector for DIY work. The large wiring space allows for easy installation. The connector is suitable for connecting three cables up to 2.5 mm². The 2-pole connector features a double earthing system and is made of black rubber. Rubber provides protection against heat, cold and UV radiation, making the plug highly suitable for use in DIY applications.
Easy and quick connection thanks to captive screw for securing the cap, open terminal screws and connection from one direction and with a single screwdriver
For use under difficult conditions. For heavy mechanical stress in dry, damp and wet environments and outdoors.
Technical specifications
- Current = 16A
- Voltage = 230V
- Poles number = 2
- IP protection rating = IP44
- Material = Thermoplastic
- Angle of plug = Straight
- Cable diameter = 6 - 12 mm
- Connection type = Screw clamp
Dimensions and weights
- Weight =0.14Kg
- Product weight =0.14Kg
- Length =0.0mm
- Width =0.0mm
- Height =0.0mm
- Product Length =286.0mm
- Product Width =227.0mm
- Product Height =96.0mm
