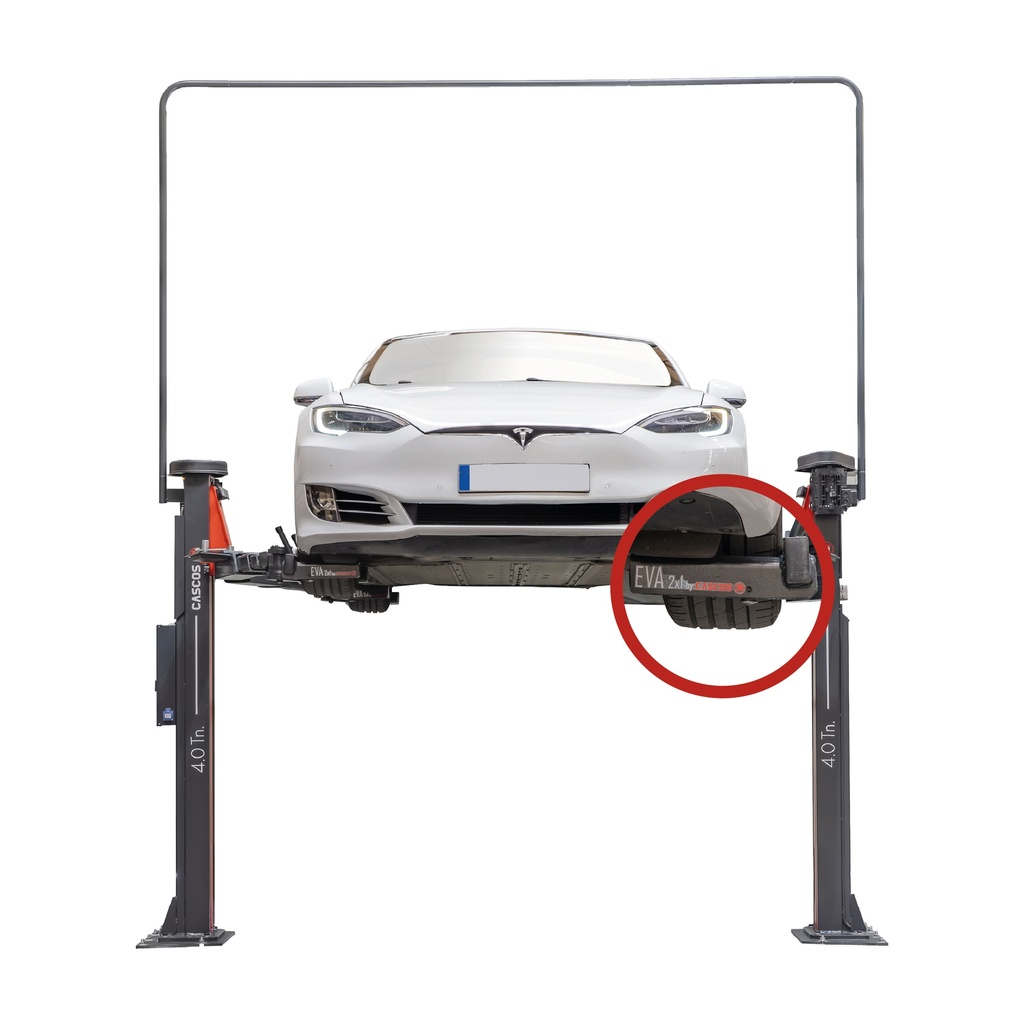

Two post lift 4000kg floorless 2 in 1 EVA Cascos

[13194S4EVA] Two post lift 4000kg floorless 2 in 1 EVA Cascos

€ 0.00 € 9,500.00

Add to cart
Contact Us

  • 100% access chassis

  • Clear floor

  • SlenderTec solid columns

  • Largest spindle on the market

  • Made in Europe

Lifts / Two post lifts

Product Code: 13194S4EVA

EAN: 8720028100552

PRODUCT DESCRIPTION

Two pole lift / spindle lift / car lift / EVA / electric vehicle adapter

Two post spindle lift EVA (Electric Vehicle Adapter) incl. wheel adapters & rubber lifting pad. This two-column spindle 2 in 1 lift bridge has a very large pick-up range and can lift electric, hybrid and fuel vehicles. Thanks to the interchangeable lifting arms, the EVA system can be used, which lifts via the tires, so no additional adapters are needed for lifting electric vehicles.

Technical specifications:

  • capacity = 4000kg

  • voltage = 400V

  • motor power = 3.3 kW

  • min. intake height = 100mm

  • max. lifting height = 1970mm

  • distance between the columns = 2700mm

  • height of the columns = 2435mm

  • total height = 4250mm

  • weight = 750kg

Note: The price for this lift does not include the delivery and placement of the lift. For more information regarding installation and service contracts you can contact one of our employees.

Technical specifications

Dimensions and weights

  • Weight =800.0Kg
  • Product weight =750.0Kg
  • Length =1200.0mm
  • Width =1000.0mm
  • Height =400.0mm
  • Product Length =3350.0mm
  • Product Width =620.0mm
  • Product Height =4250.0mm
