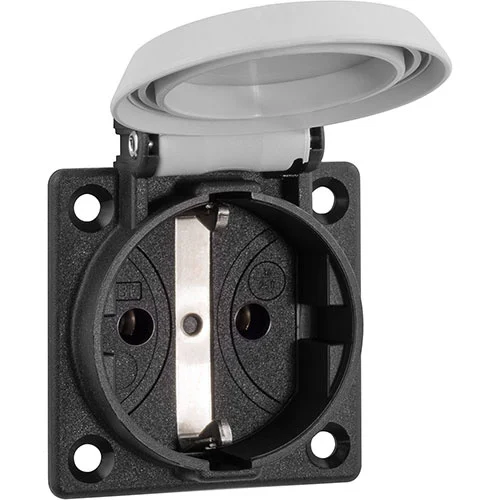

Schuko flush mounted socket 16A

[1661060] Schuko flush mounted socket 16A

€ 0.00 € 3.50

  • Current
  • Voltage
  • Poles number
  • IP protection rating
  • Colour
  • Angle of plug
  • Flange size
  • Material
  • Connection type
  • Packaging
Add to cart
Add to wishlist
Contact Us

Electrical and accessories / Electric equipment and material / Wall sockets

Product Code: 1661060

EAN: 4011721158488

PRODUCT DESCRIPTION

SCHUKO flush mounted socket 230V, 16A with screw terminals. Made of high-impact thermoplastic, resistant to heat, cold and UV radiation. Splash-proof according to IP54 and equipped with four-point flange mounting, hinged cover and rear and bottom cable entry.

Technical specifications

  • Current = 16A
  • Voltage = 230V
  • Poles number = 2
  • IP protection rating = IP54
  • Colour = Grey
  • Angle of plug = Straight
  • Flange size = 50 x 50 mm
  • Material = Thermoplastic
  • Connection type = Screw clamp

Dimensions and weights

  • Weight =0.0Kg
  • Product weight =0.04Kg
  • Length =0.0mm
  • Width =0.0mm
  • Height =0.0mm
  • Product Length =370.0mm
  • Product Width =295.0mm
  • Product Height =250.0mm
