Made in Italy
Accurate display
ISO2503
Extremely suitable for advanced MIG & TIG machines
Product Code: 25500S
EAN: 8720028093656
PRODUCT DESCRIPTION

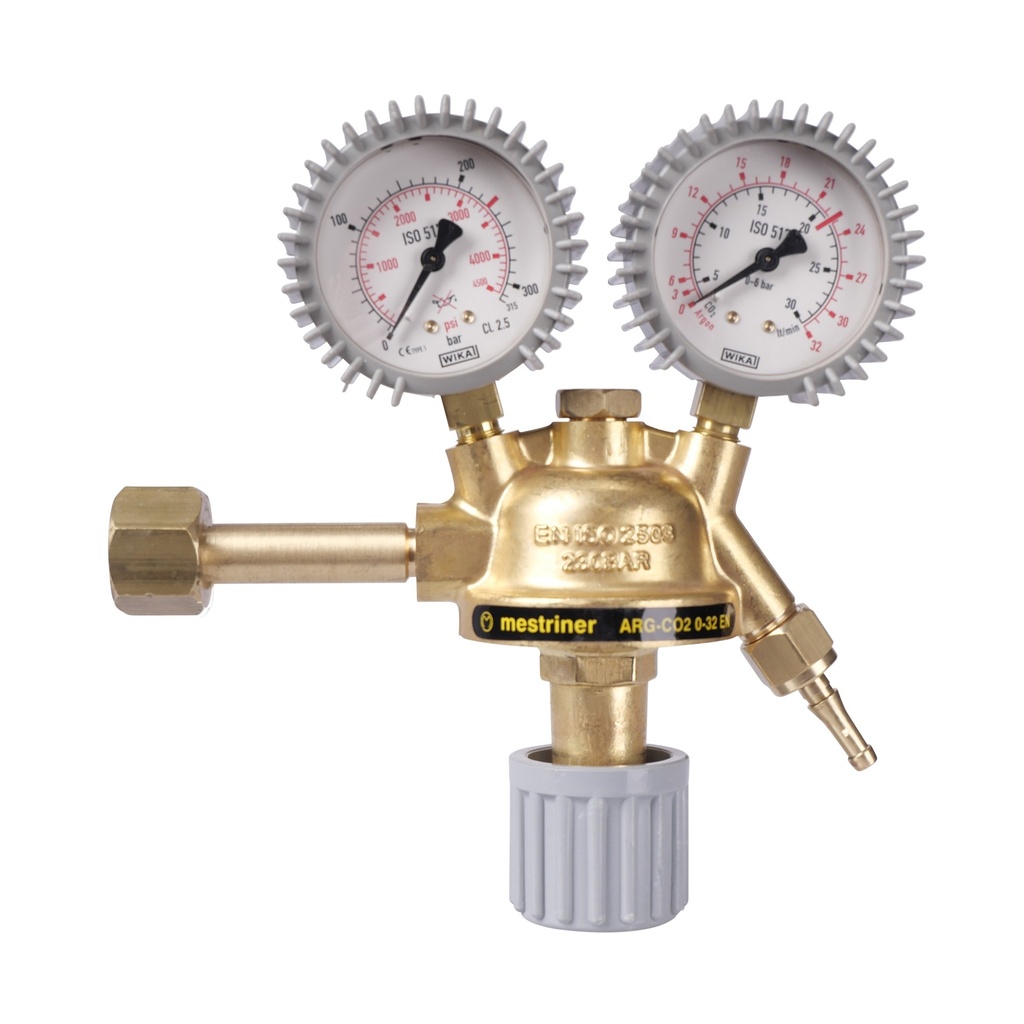

Gas regulator / pressure regulator for gas cylinder
This Mestriner gas reducer is of high European quality and meets the ISO2503 safety standard. The large solid flow chamber allows the regulator to deliver a large gas flow and an output pressure of 5 bar.
Extremely suitable for advanced MIG & TIG machines.
The pressure reducing valve is equipped with 2 pressure gauges and the gas flow can be very accurately controlled and read with an accuracy of 0-20L / min.
max. inlet pressure = 230 bar
max.output pressure = 5 bar
flow capacity = 1.5m³/h
scale division flow meter = 0 - 20L/min
connection inlet = 24.32mm internal thread
connection outlet = 6.3 and 8,3mm hose connector
Technical specifications
Dimensions and weights
- Weight =1.57Kg
- Product weight =1.39Kg
- Length =228.0mm
- Width =235.0mm
- Height =82.0mm
- Product Length =195.0mm
- Product Width =69.0mm
- Product Height =200.0mm
