Both 6.3mm and 8.3mm hose connection
Made in Italy
Accurate display
ISO2503
Product Code: 25590S
EAN: 8720028093663
PRODUCT DESCRIPTION

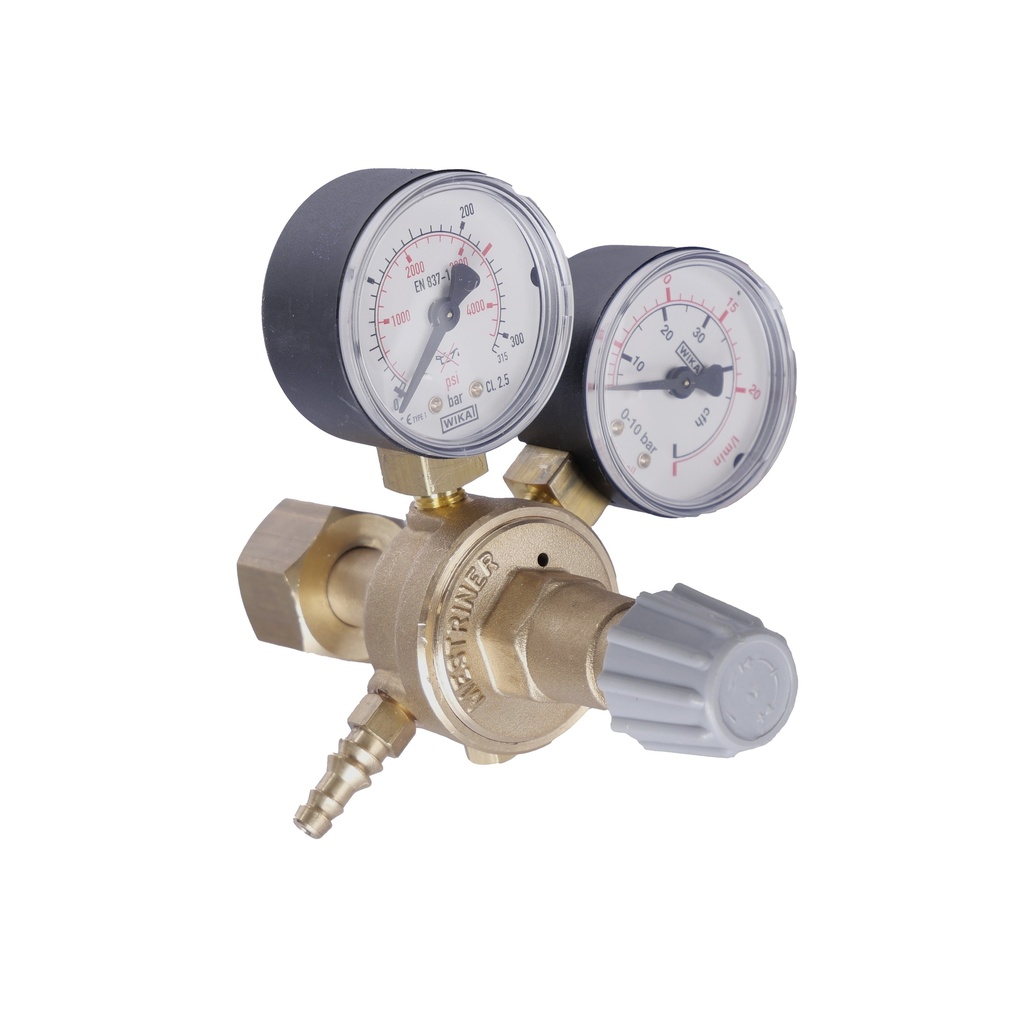

Gas regulator / pressure regulator for gas cylinder
This Mestriner gas reducer is of high European quality and meets the ISO2503 safety standard. Thanks to its compact design, this reducer is easy to apply to any cylinder and also in any space.
The pressure reducing valve is equipped with 2 pressure gauges and the gas flow can be very accurately controlled and read with an accuracy of 0-20L / min.
max. inlet pressure = 230 bar
max.output pressure = 4 bar
flow capacity = 1.5m³/h
scale division flow meter = 0 - 20L/min
connection inlet = 24.32mm internal thread
connection outlet = 6.3mm and 8,3mm hose connector
Technical specifications
Dimensions and weights
- Weight =0.57Kg
- Product weight =0.49Kg
- Length =135.0mm
- Width =118.0mm
- Height =128.0mm
- Product Length =111.0mm
- Product Width =105.0mm
- Product Height =127.0mm
