Product Code: 25800NL
EAN: 8720028102778
PRODUCT DESCRIPTION

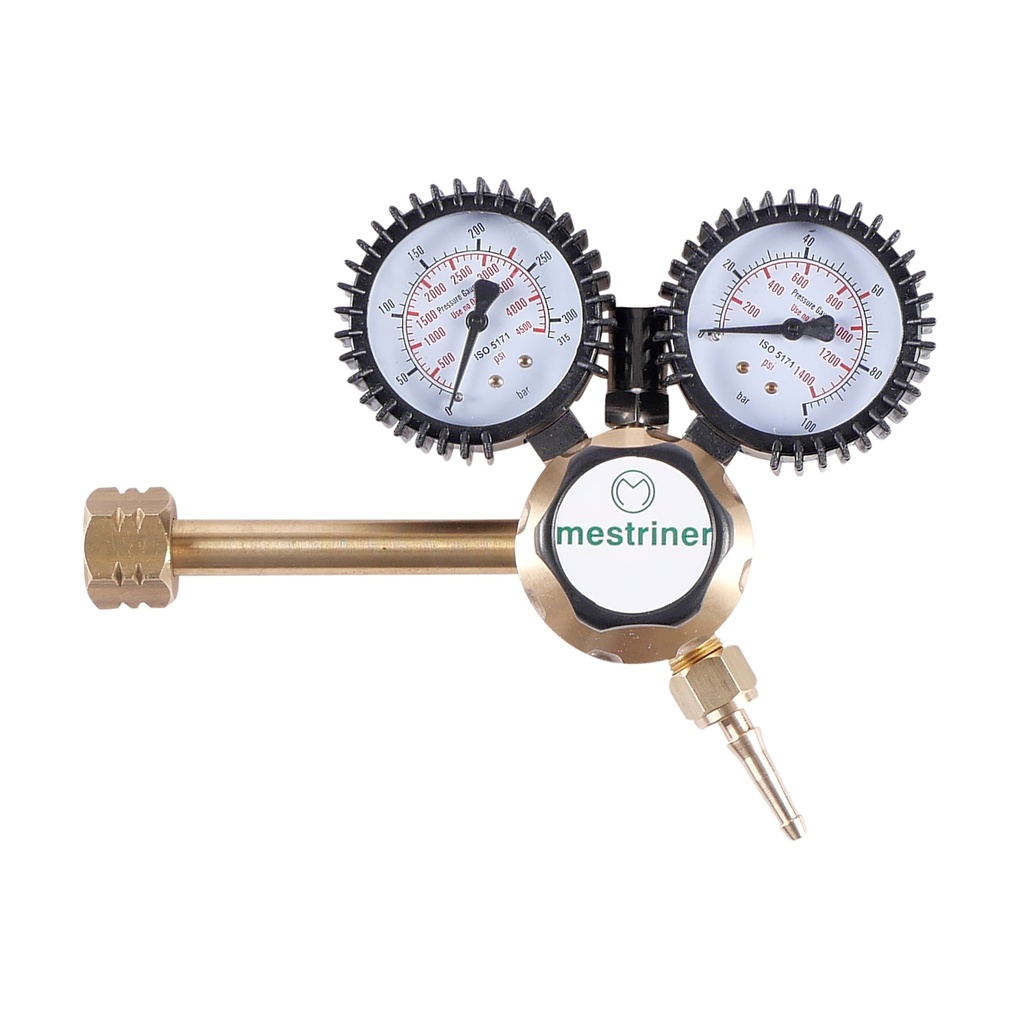

Forming gas gearbox NM3/H 21.8 F left
The forming gas reducer has high exhaust delivery rates and is used in centralization and on cylinder packs for medium pressure industrial applications.
Feautures:
- Entirely made of pressed brass (5t8)
- Meets the uni and iso 2503 standard
- Suitable for compressed gases up to 230 bar
- Equipped with a pressure relief valve
- Gases indicated: oxygen - air - nitrogen - co2 - argon
- Press. max e kg / cm 2 200
- Press. max h kg / cm2 20 bar
- Flow rate m3/h 75
Technical specifications
Dimensions and weights
- Weight =1.7Kg
- Product weight =1.579Kg
- Length =195.0mm
- Width =170.0mm
- Height =130.0mm
- Product Length =195.0mm
- Product Width =170.0mm
- Product Height =130.0mm
