Product Code: 4SM810F
EAN: 8720028083763
PRODUCT DESCRIPTION

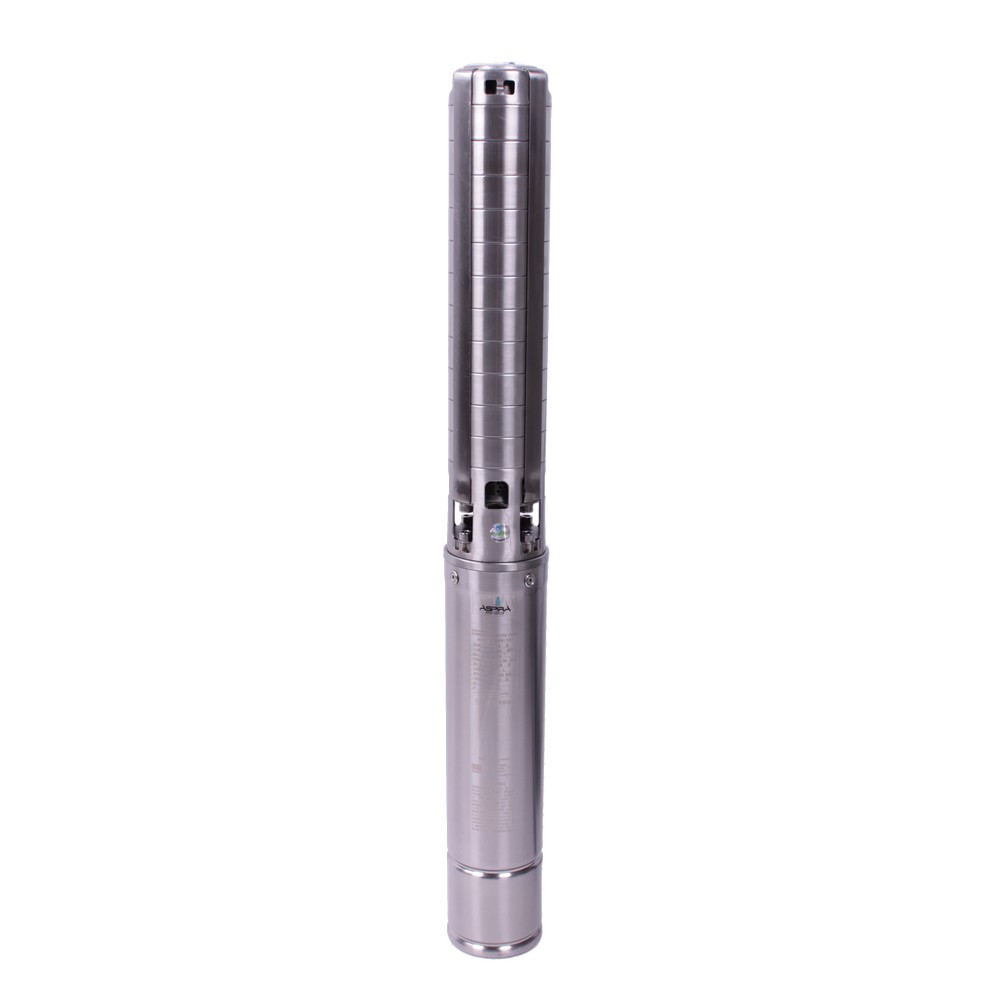

Complete Stainless steel well pump
High quality pump with good performance because of the stainless steel impellers. Profided with non-return valve to avoid damage due to back-flow of water. Outlet :2 "
Max. pressure = 6,4 bar
Performance: 2 bar 10000 litres/Hour
3,5 bar 8000 litres/Hour
4 bar 6700 litres/Hour
5 bar 4000 liters/hour
Pump is complete with 18 mtr cable and switchbox with thermal overload protector.
Motor: Nema standard
230 Volt ,50 Hz". Max fluid temperature 40' C
Protection: IP68
Technical specifications
Dimensions and weights
- Weight =24.0Kg
- Product weight =0.0Kg
- Length =1130.0mm
- Width =180.0mm
- Height =180.0mm
- Product Length =0.0mm
- Product Width =0.0mm
- Product Height =0.0mm
