PRODUCT DESCRIPTION

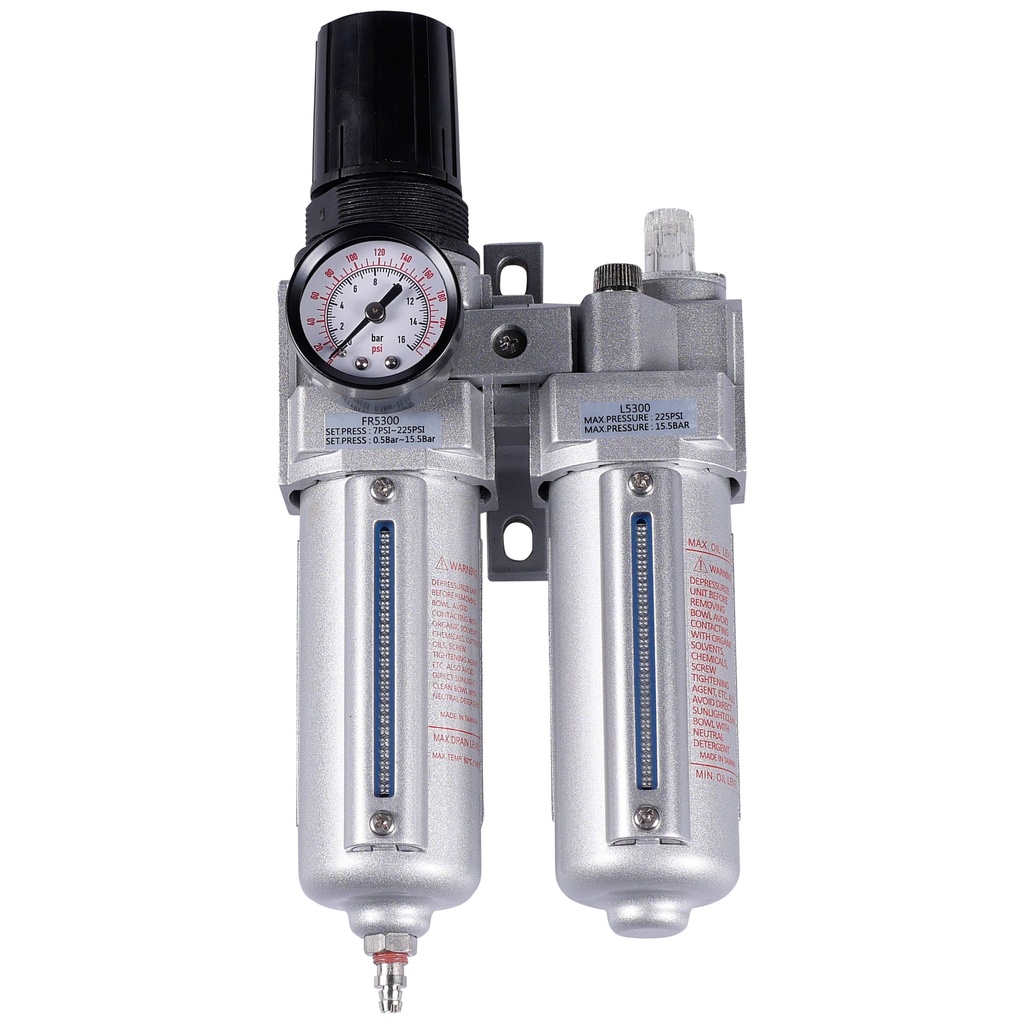

The AirPro air service unit is a reliable solution designed to improve the efficiency, lifespan, and performance of pneumatic systems and air tools.
- Effortless quick release system simplifies installation and maintenance for seamless operation.
- Pressure range form 0 to 15.5 bar, making this air treatment set suitable for use with most common compressors.
- Extended air management combination of filtration, pressure regulation, and lubrication for better performance of the pneumatic system.
- Precision pressure regulation delivers accurate pressure control to meet specific system requirements.
- Extended equipment lifespan reduces wear and tear by providing clean, lubricated air.
Technical specifications
- Material = Aluminium
- Air connection = 3/8"
- Thread type = BSP
- Filter element = 5 µm
- Temperature range = 5°C to +60°C
- Pressure range = 0 ~ 15.5 Bar
- Air flow max. = 3000 L/min
- Drain capacity = 0.06 L
- Oil capacity = 0.085 L
- Recommended lubricants = OLB32

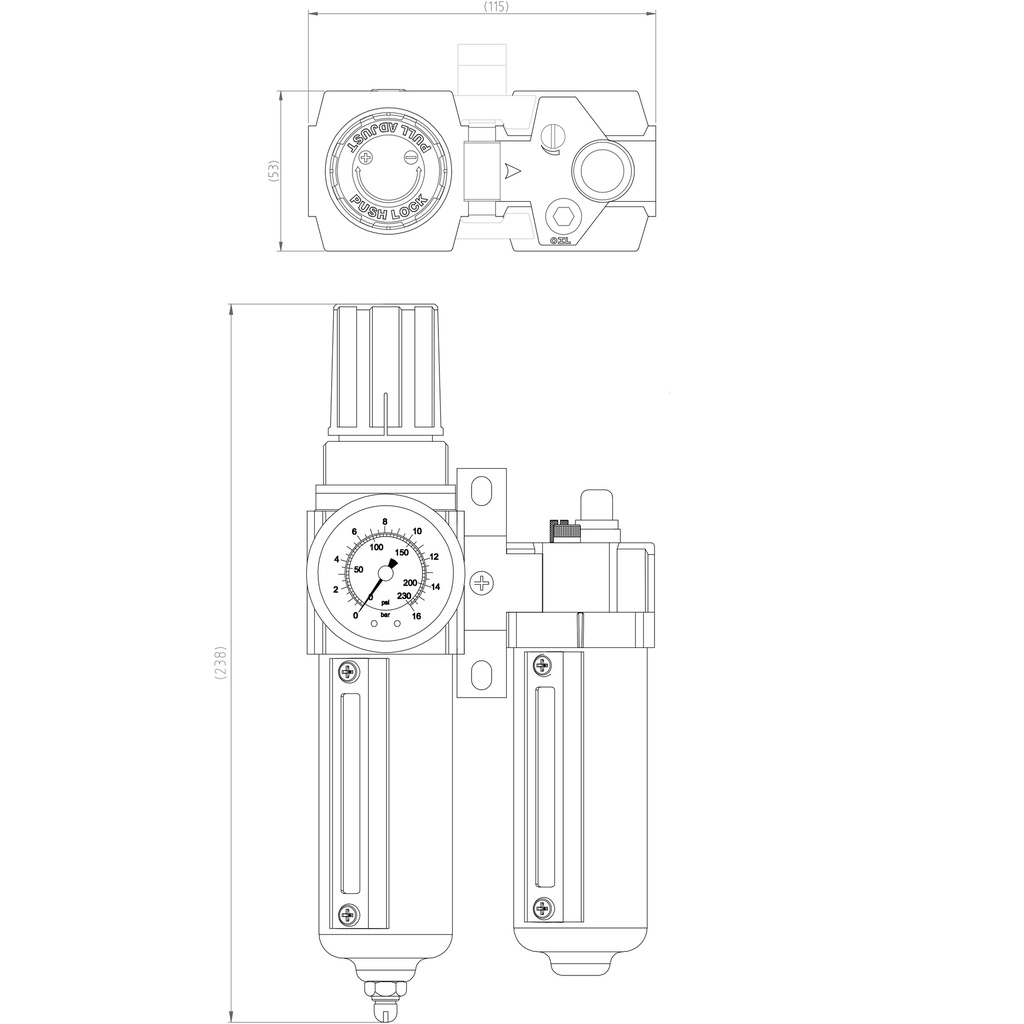

Dimensions and weights
- Weight =1.73Kg
- Product weight =1.5Kg
- Length =120.0mm
- Width =260.0mm
- Height =78.0mm
- Product Length =115.0mm
- Product Width =53.0mm
- Product Height =238.0mm
