PRODUCT DESCRIPTION

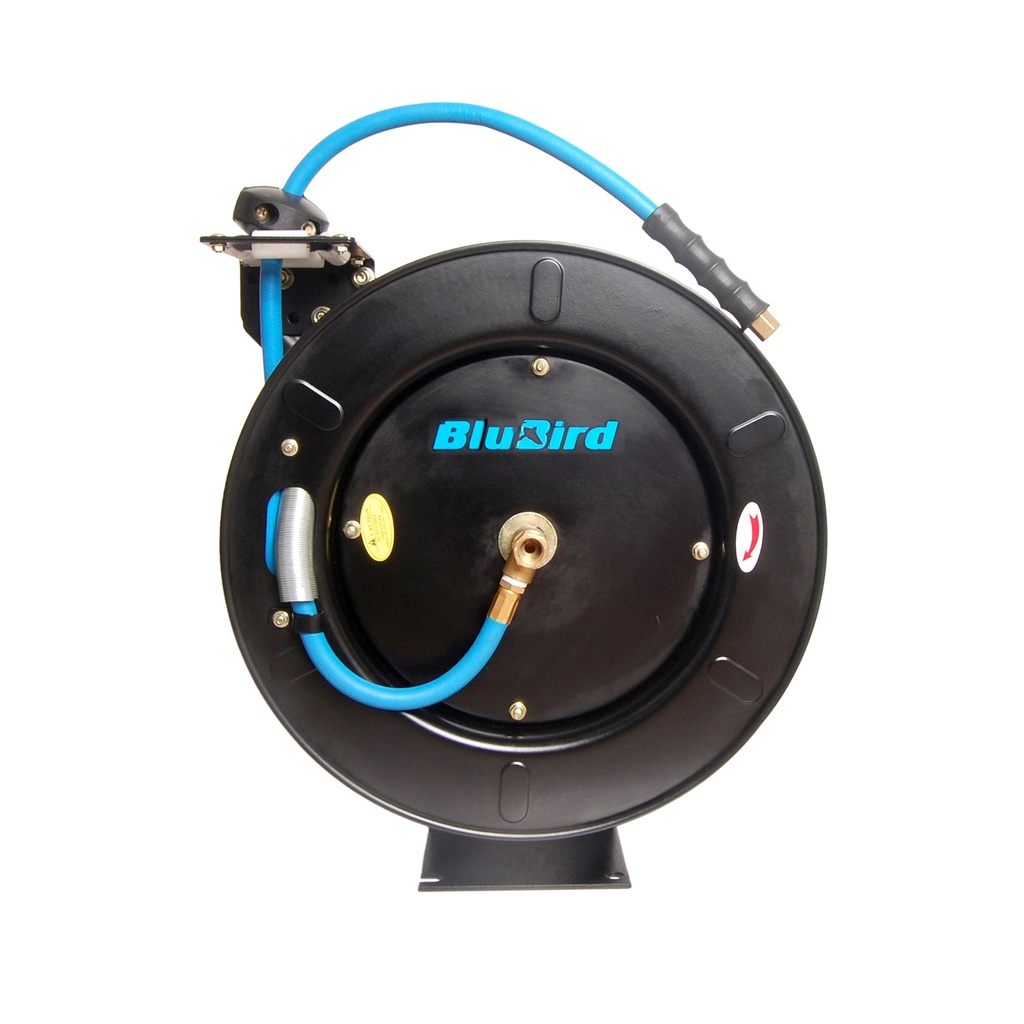

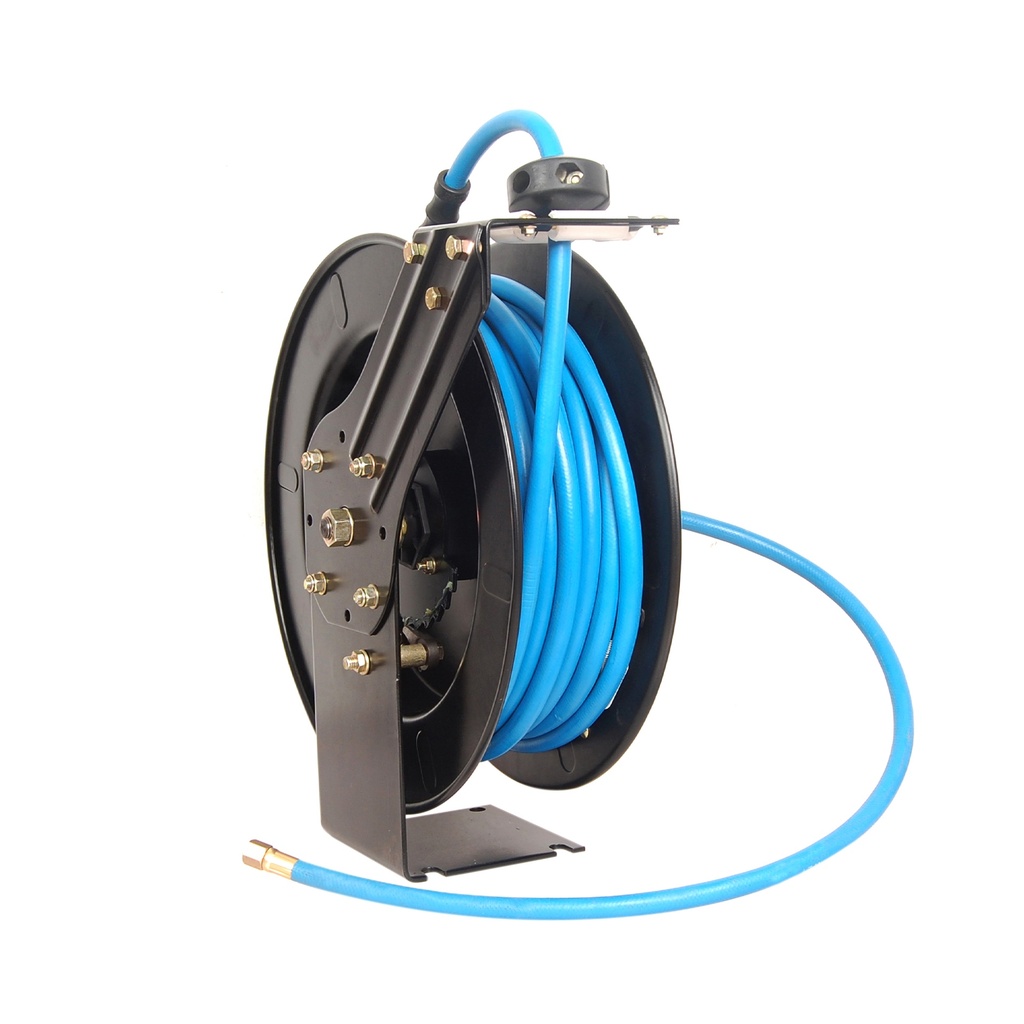

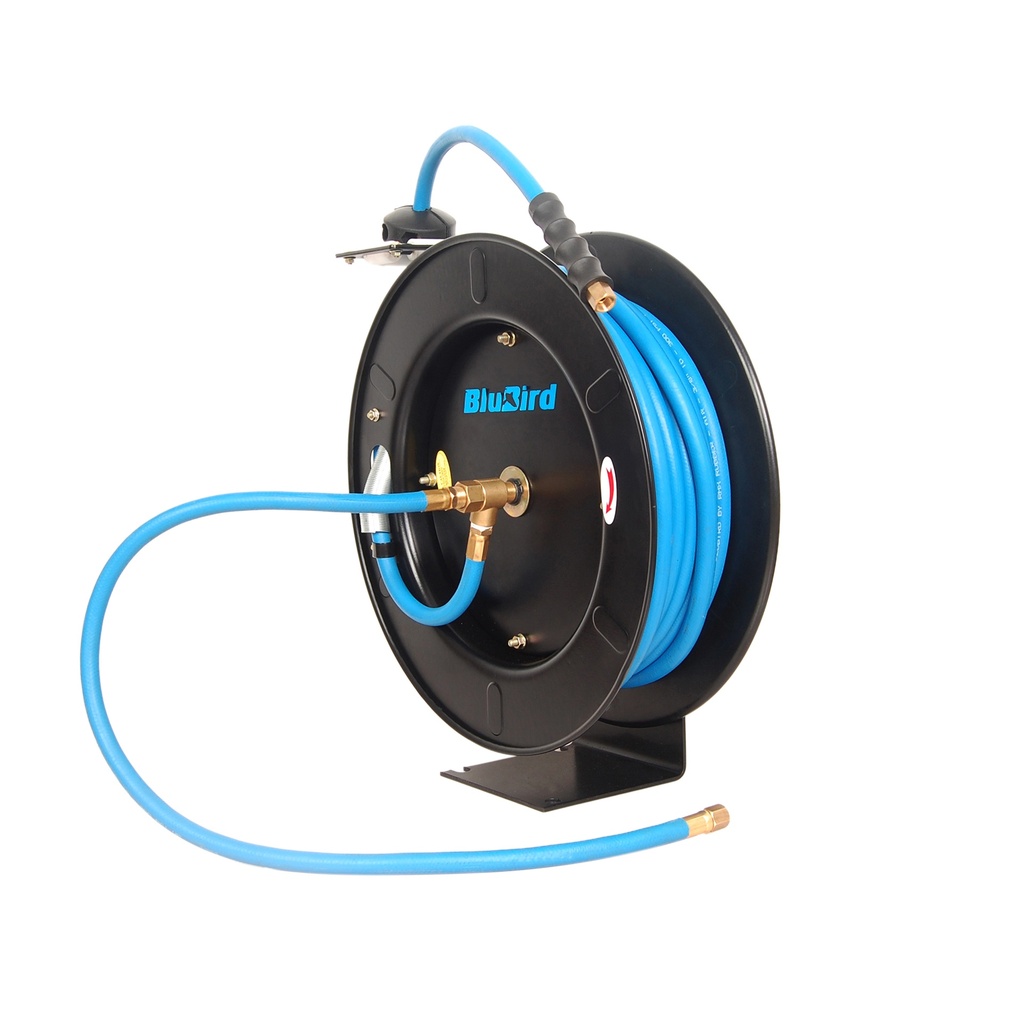

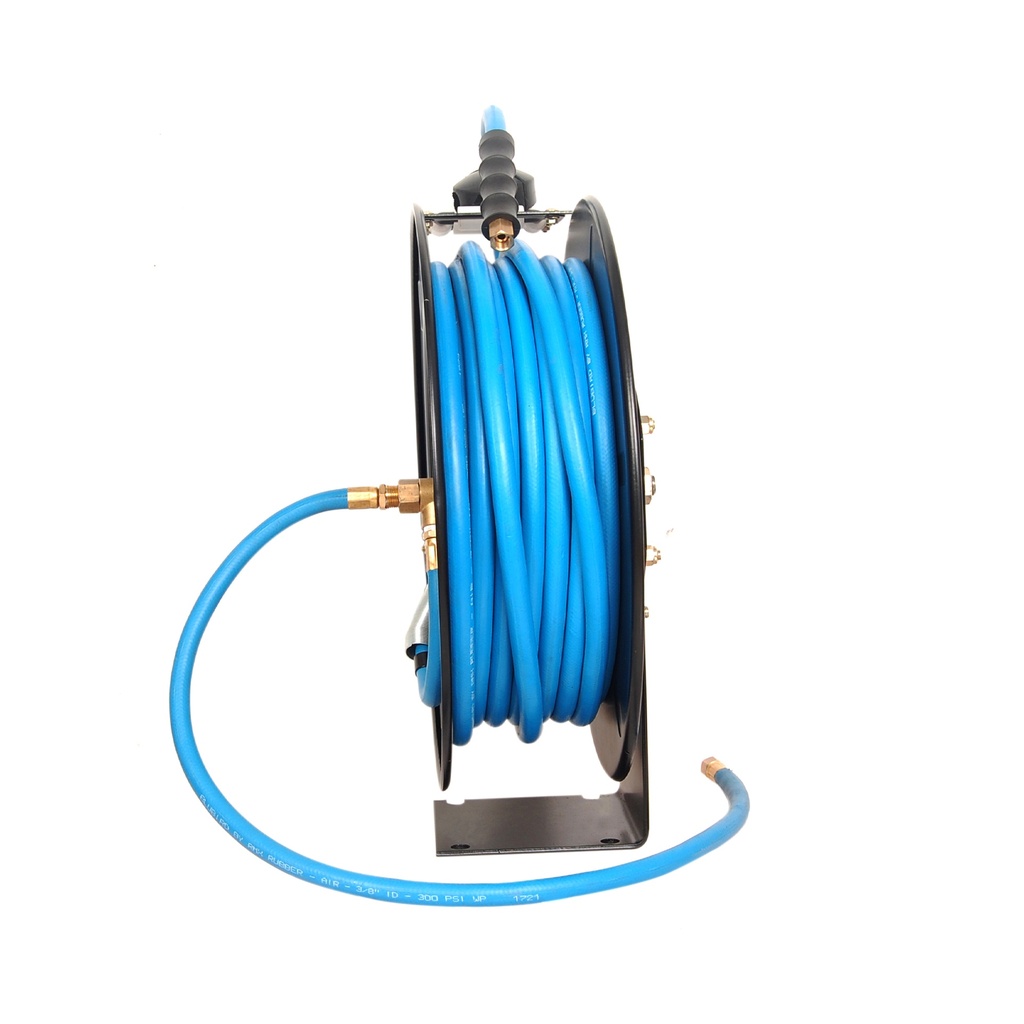

The Blubird Air Hose Reel is produced with features that guarantee optimum performance for automotive and industrial aplications. Crafted with precision, the corrosion-resistant powder-coated steel frame ensures durability and longevity. Its single adjustable guide arm and L-shaped base with groove reinforcement provide rock-solid stability and support, making it a reliable tool for any project. Paired with the Blubird Air Hose, this dynamic duo delivers exceptional performance and versatility.
Air hose reel features:
- Multi-position 12-point ratchet spring system
- Brass swivel joints in hose inlet connection
- Reel stopper and 4 non-snag roller
- Versatile mounting option
Air Hose features:
- 40% lighter than standard rubber hoses
- 20 Bar working pressure
- Solid brass fittings
- 4:1 safety factor
- Extreme weather resistant
- 4 finger grip bend restrictor
Technical specifications
- Inner hose diameter = 10 mm
- Fittings = outlet 1/4" M-BSP & reel inlet 1/4" M-BSP
- Burst pressure min. = 82 Bar
- Temperature range = -45°C to +87°C
- Working pressure max. = 20 Bar
- Safety factor = 4:1
- Braiding = Polyester
- Material = Rubber
- Hose length = 10 m
- Lead-in hose = 1 m
Dimensions and weights
- Weight =10.4Kg
- Product weight =9.6Kg
- Length =210.0mm
- Width =410.0mm
- Height =430.0mm
- Product Length =150.0mm
- Product Width =360.0mm
- Product Height =400.0mm
