PRODUCT DESCRIPTION

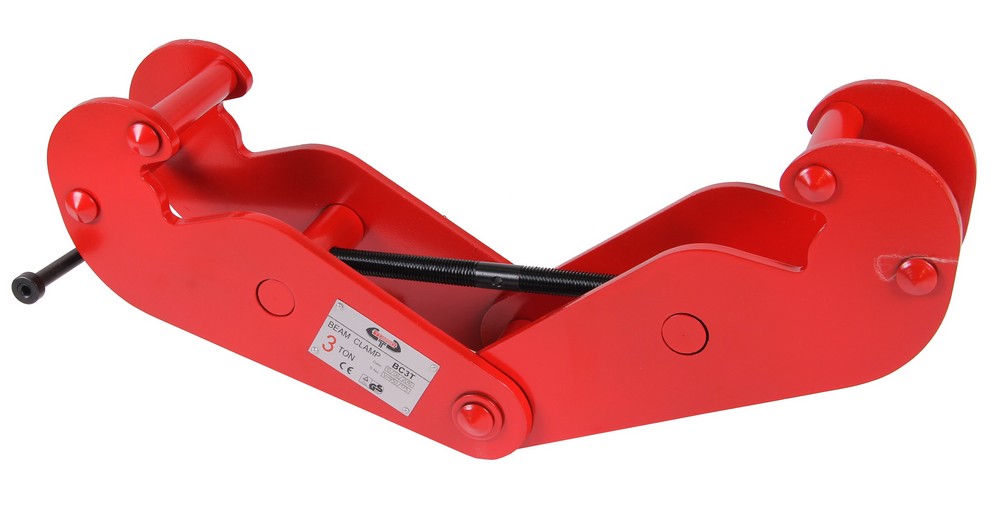

Beam clamp
This beam clamp is designed to make a safe connection from a beam to a for example chain hoist.
- capacity = 1 ton / 1000kg
- width = 75 - 220mm

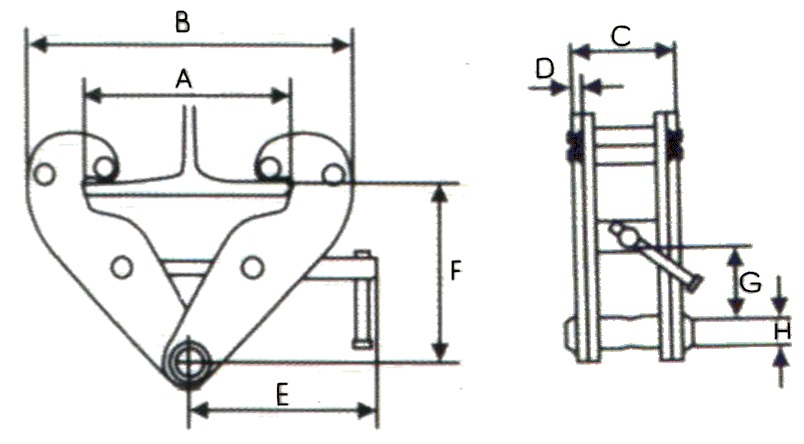

Dimensions corresponding to the image:
- max. A = 260mm
- min. / max. B = 180 / 360mm
- C = 64mm
- D = 5mm
- E = 215mm
- min. / max. F = 102 / 155mm
- G = 25mm
- H = 22mm
This beam clamp is designed to make a safe connection from a beam to a for example chain hoist.
- capacity = 1 ton / 1000kg
- width = 75 - 220mm
Dimensions corresponding to the image:
- max. A = 260mm
- min. / max. B = 180 / 360mm
- C = 64mm
- D = 5mm
- E = 215mm
- min. / max. F = 102 / 155mm
- G = 25mm
- H = 22mm
Technical specifications
Dimensions and weights
- Weight =4.8Kg
- Product weight =4.0Kg
- Length =385.0mm
- Width =250.0mm
- Height =100.0mm
- Product Length =360.0mm
- Product Width =220.0mm
- Product Height =230.0mm
