[BJ08H] Mammuth bottle jack 8 ton

€ 0.00 € 25.00

  • Lifting capacity
  • Lifting height min.
  • Lifting height max.
  • Stroke
  • Length of screw spindle
  • Saddle diameter
  • Handle length
  • Oil type
  • Oil capacity
  • Packaging
Add to cart
Add to wishlist
Contact Us
  • Lifting capacity 8 ton
  • Lifting range 226 to 464 mm
  • Adjustable screw
  • Welded housing

Lifting and hoisting tools / Garage jacks and jack stands / Bottle jacks / Bottle jacks

Product Code: BJ08H

EAN: 8720028146505

PRODUCT DESCRIPTION

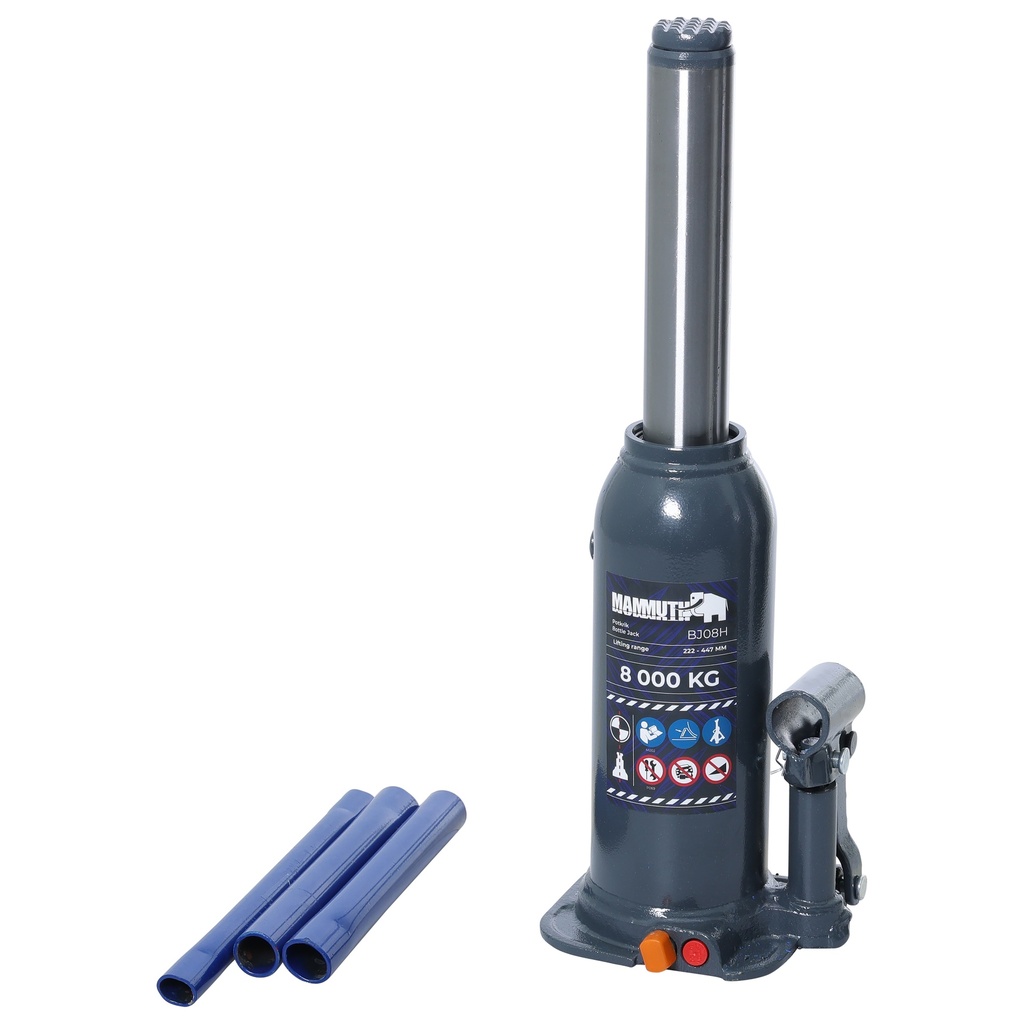

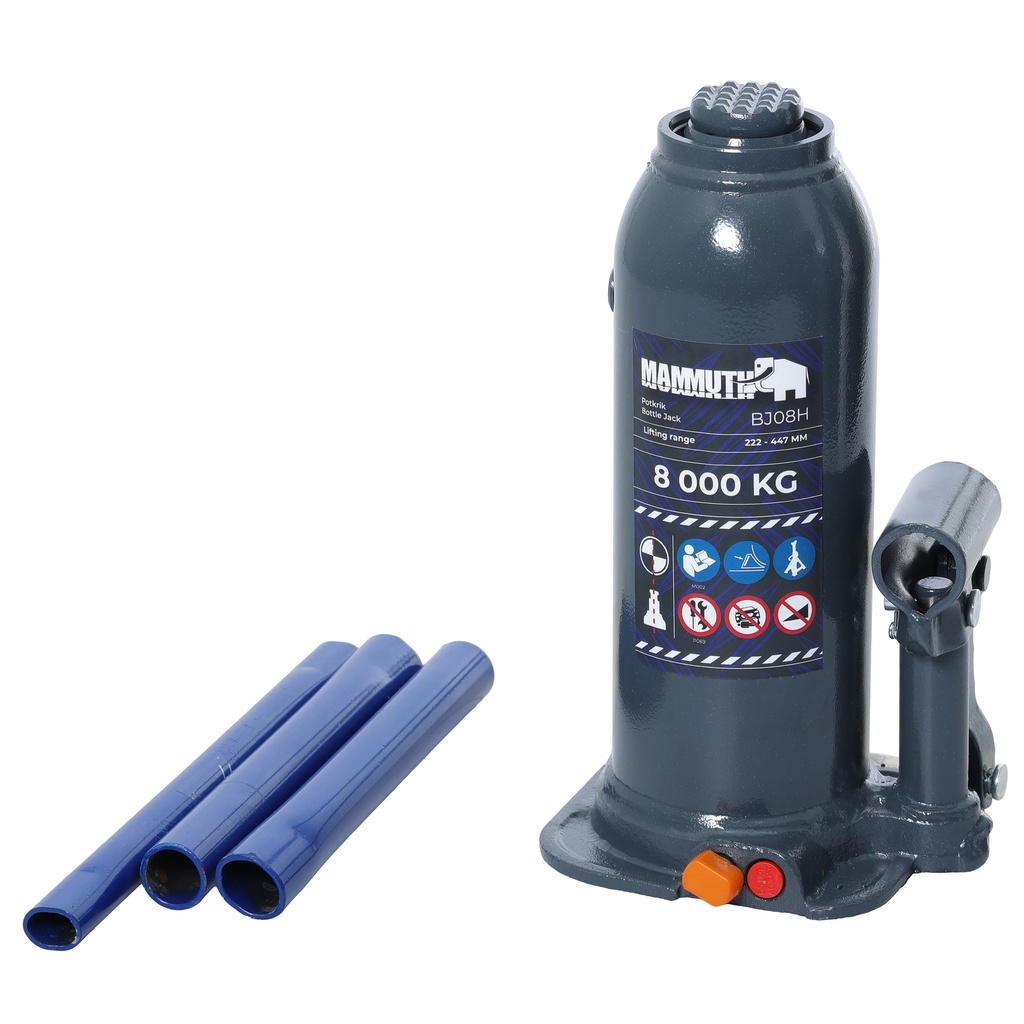

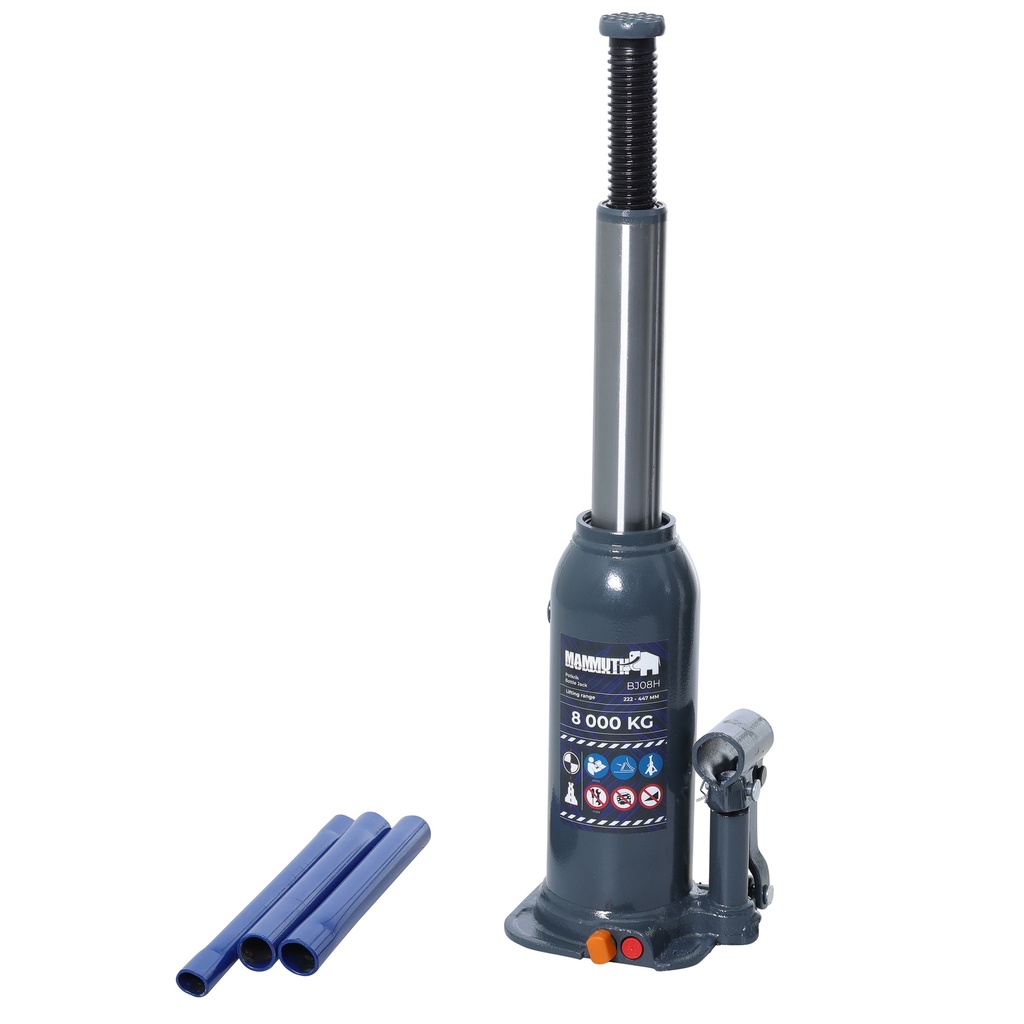

The Mammuth bottle jack is suitable for loads up to 8 ton and has a lifting range of 226 to 464 mm. This hydraulic bottle jack is used for lifting vehicles, machines and other loads. The adjustable screw allows additional height adjustment.


Key features:


  • Lifting capacity 8 ton

Suitable for lifting vehicles, machines and other loads.


  • Lifting range 226 to 464 mm

Minimum height of 226 mm and maximum height of 464 mm.


  • Adjustable screw

Allows additional height adjustment before lifting.


  • Welded housing

Forms a welded unit.

Technical specifications

  • Lifting capacity = 8000 kg
  • Lifting height min. = 226 mm
  • Lifting height max. = 464 mm
  • Stroke = 158 mm
  • Length of screw spindle = 80 mm
  • Saddle diameter = 32 mm
  • Handle length = 496 mm
  • Oil type = CH32
  • Oil capacity = 0.240 L

Dimensions and weights

  • Weight =5.63Kg
  • Product weight =5.0Kg
  • Length =130.0mm
  • Width =120.0mm
  • Height =240.0mm
  • Product Length =130.0mm
  • Product Width =113.0mm
  • Product Height =230.0mm
