PRODUCT DESCRIPTION

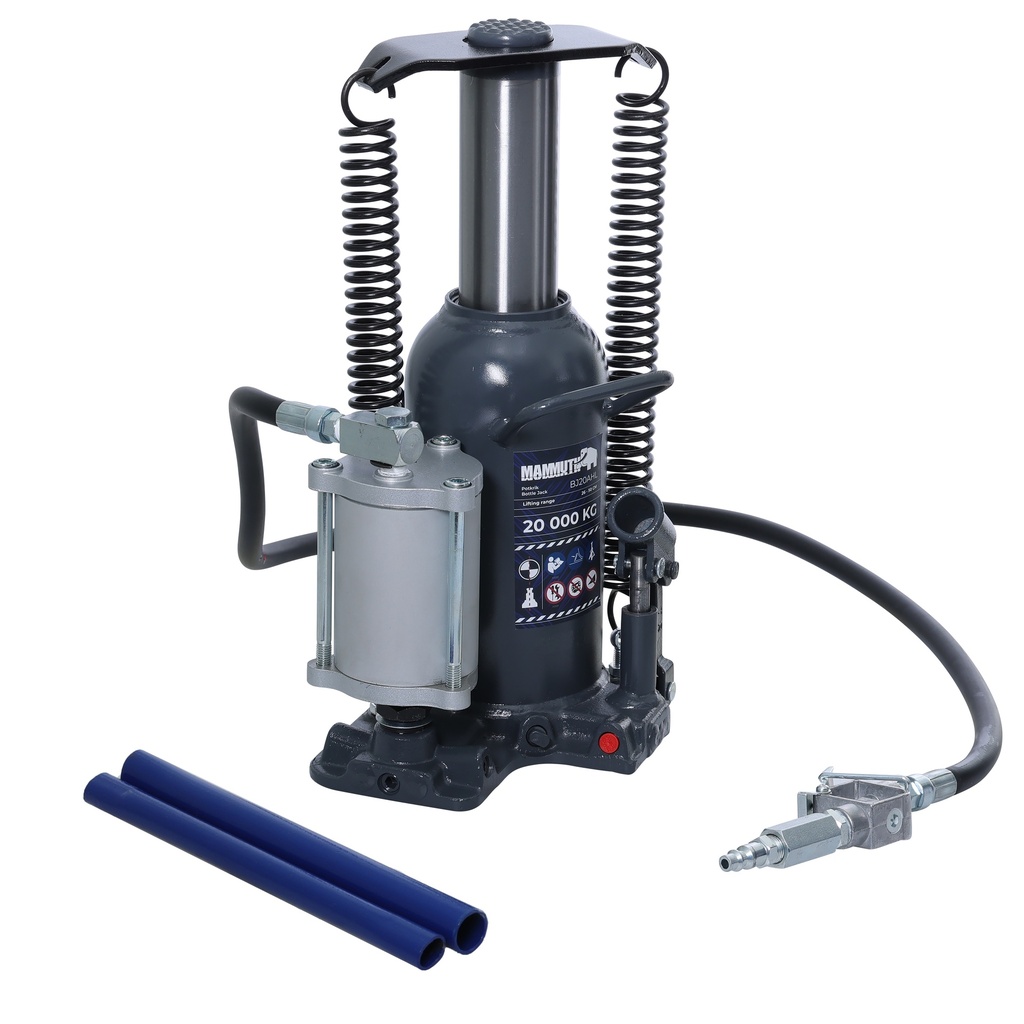

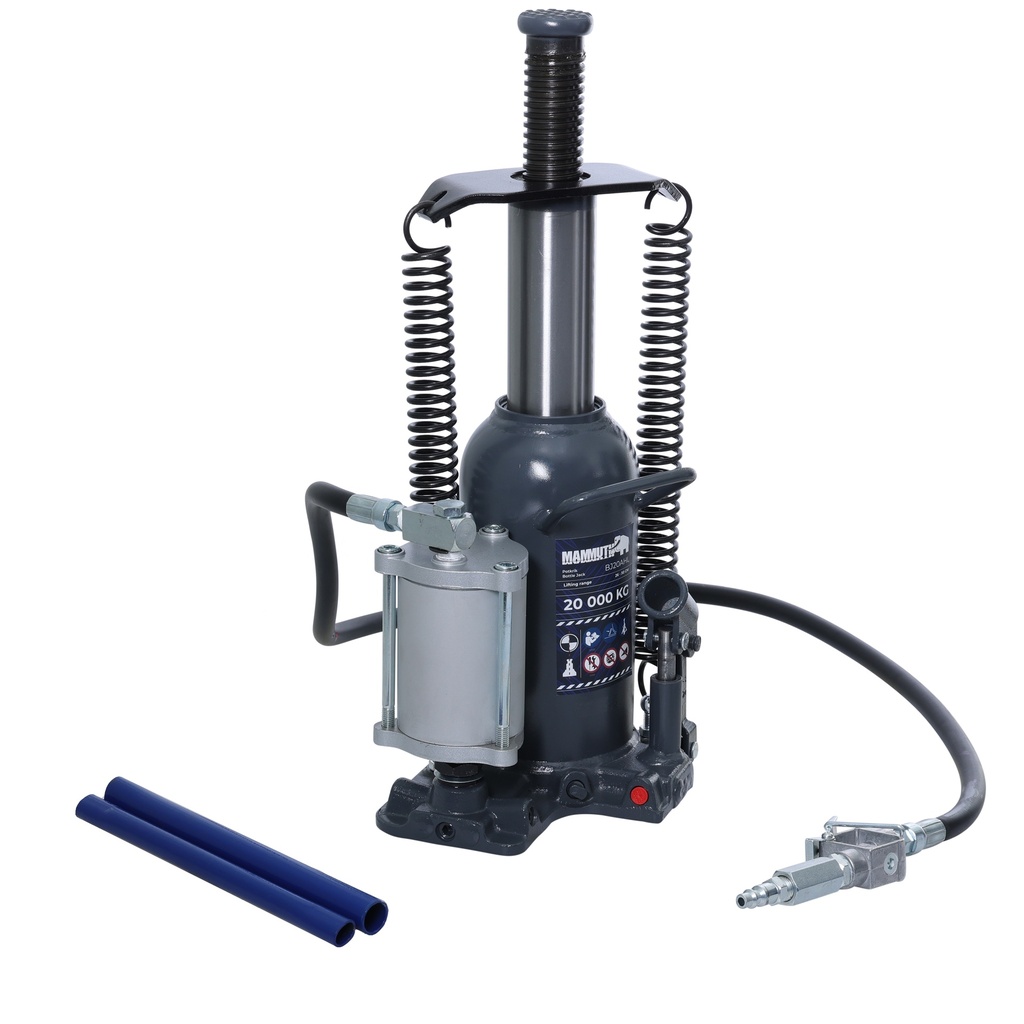

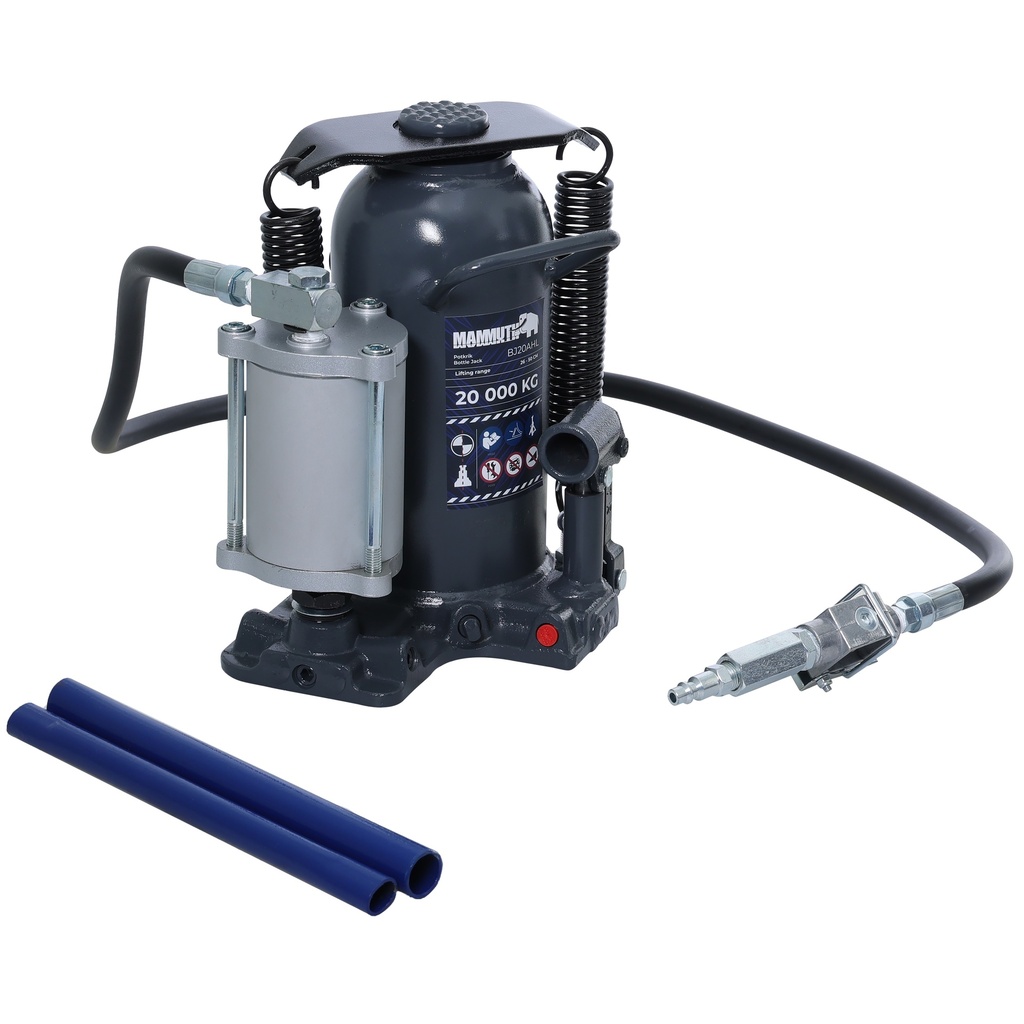

The Mammuth pneumatic bottle jack is suitable for loads up to 20 ton and has a lifting range of 261 to 510 mm. This hydraulic bottle jack is suitable for lifting vehicles, machines and other loads.
In addition to pneumatic operation, manual use is also possible without compressed air. The adjustable screw allows additional height adjustment.
Key features:
- Pneumatic operation
Operation possible both pneumatically and manually.
- Lifting capacity 20 ton
Suitable for lifting vehicles, machines and other loads.
- Lifting range 261 to 510 mm
Minimum height of 261 mm and maximum height of 510 mm.
- Adjustable screw
Allows additional height adjustment before lifting.
- Welded housing
Forms a welded unit.
Technical specifications
- Lifting capacity = 20000 kg
- Lifting height min. = 261 mm
- Lifting height max. = 510 mm
- Stroke = 167 mmm
- Length of screw spindle = 82 m
- Saddle diameter = 45 mm
- Handle length = 496 mm
- Oil type = CH32
- Working air pressure = 6 - 10 Bar
Dimensions and weights
- Weight =14.0Kg
- Product weight =0.0Kg
- Length =280.0mm
- Width =200.0mm
- Height =280.0mm
- Product Length =185.0mm
- Product Width =130.0mm
- Product Height =245.0mm
