PRODUCT DESCRIPTION

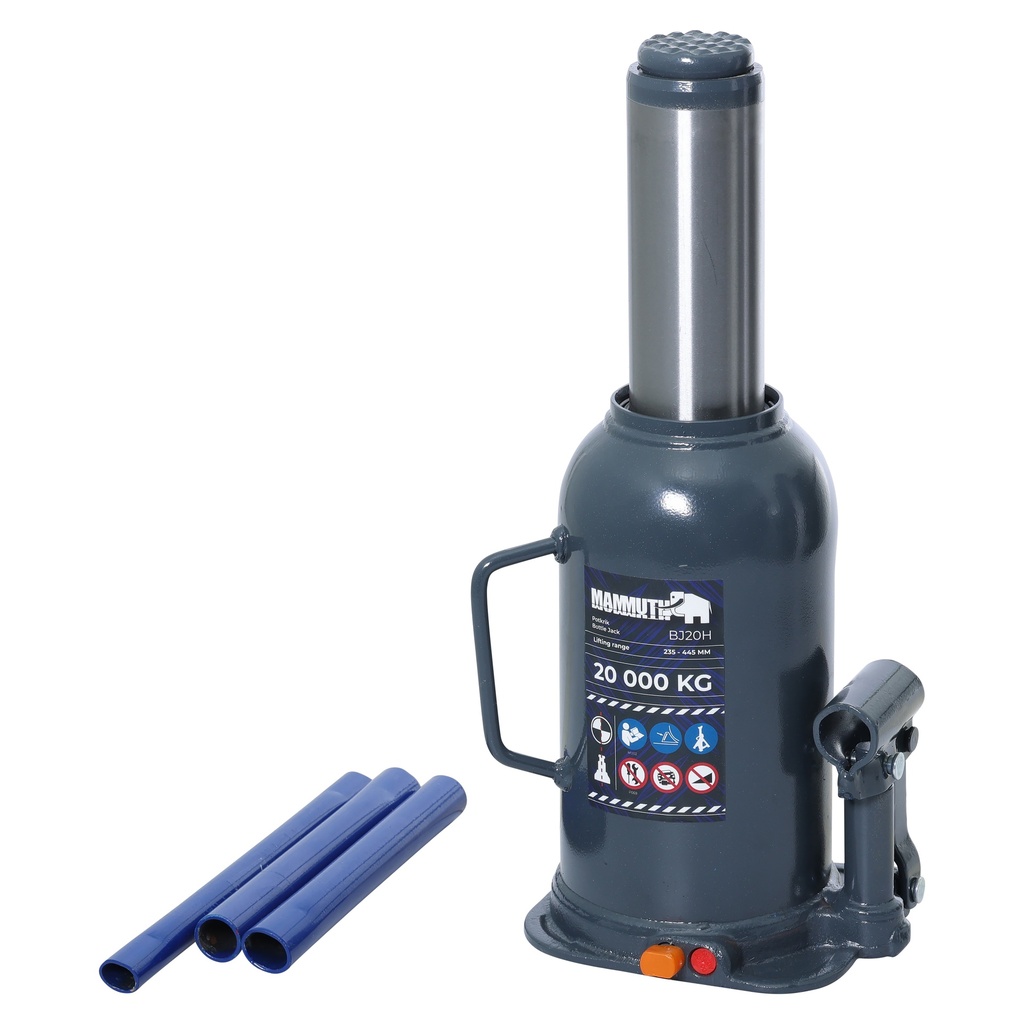

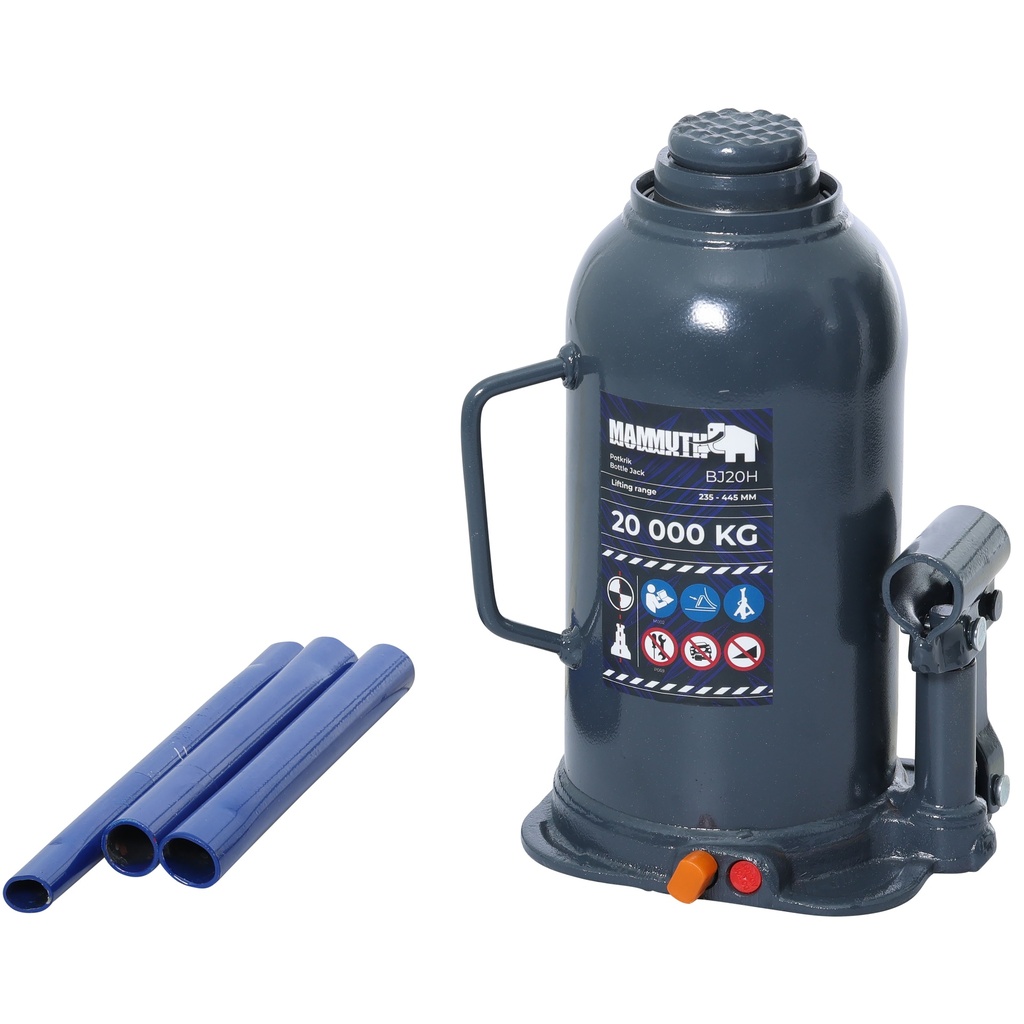

The Mammuth bottle jack is suitable for loads up to 20 ton and has a lifting range of 238 to 463 mm. This hydraulic bottle jack is used for lifting vehicles, machines and other loads. The adjustable screw allows additional height adjustment.
Key features:
- Lifting capacity 20 ton
Suitable for lifting vehicles, machines and other loads.
- Lifting range 238 to 463 mm
Minimum height of 238 mm and maximum height of 463 mm.

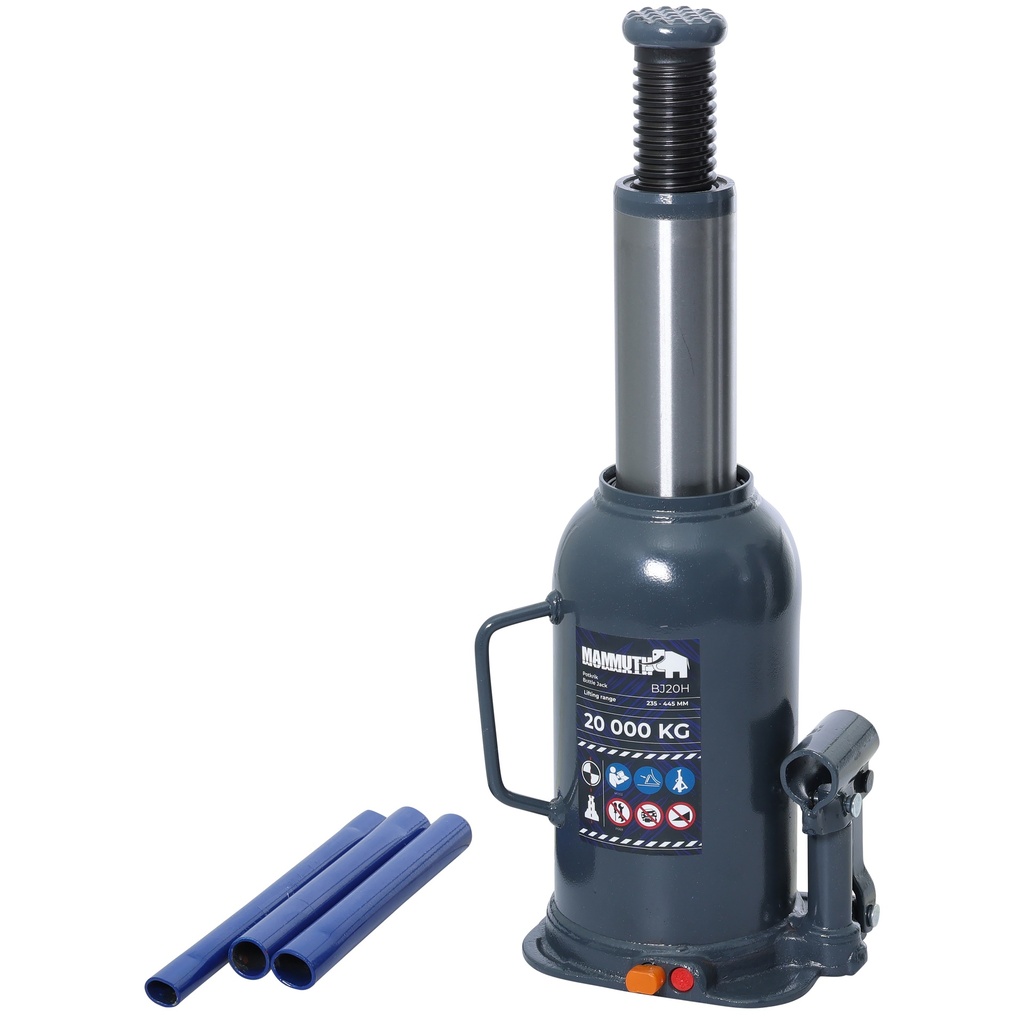

- Adjustable screw
Allows additional height adjustment before lifting.
- Welded housing
Forms a welded unit.
Technical specifications
- Lifting capacity = 20000 kg
- Lifting height min. = 238 mm
- Lifting height max. = 463 mm
- Stroke = 165 mm
- Length of screw spindle = 60 mm
- Saddle diameter = 45 mm
- Handle length = 496 mm
- Oil type = CH32
- Oil capacity = 0.4 L
Dimensions and weights
- Weight =10.63Kg
- Product weight =10.0Kg
- Length =160.0mm
- Width =150.0mm
- Height =255.0mm
- Product Length =158.0mm
- Product Width =137.0mm
- Product Height =245.0mm
