PRODUCT DESCRIPTION

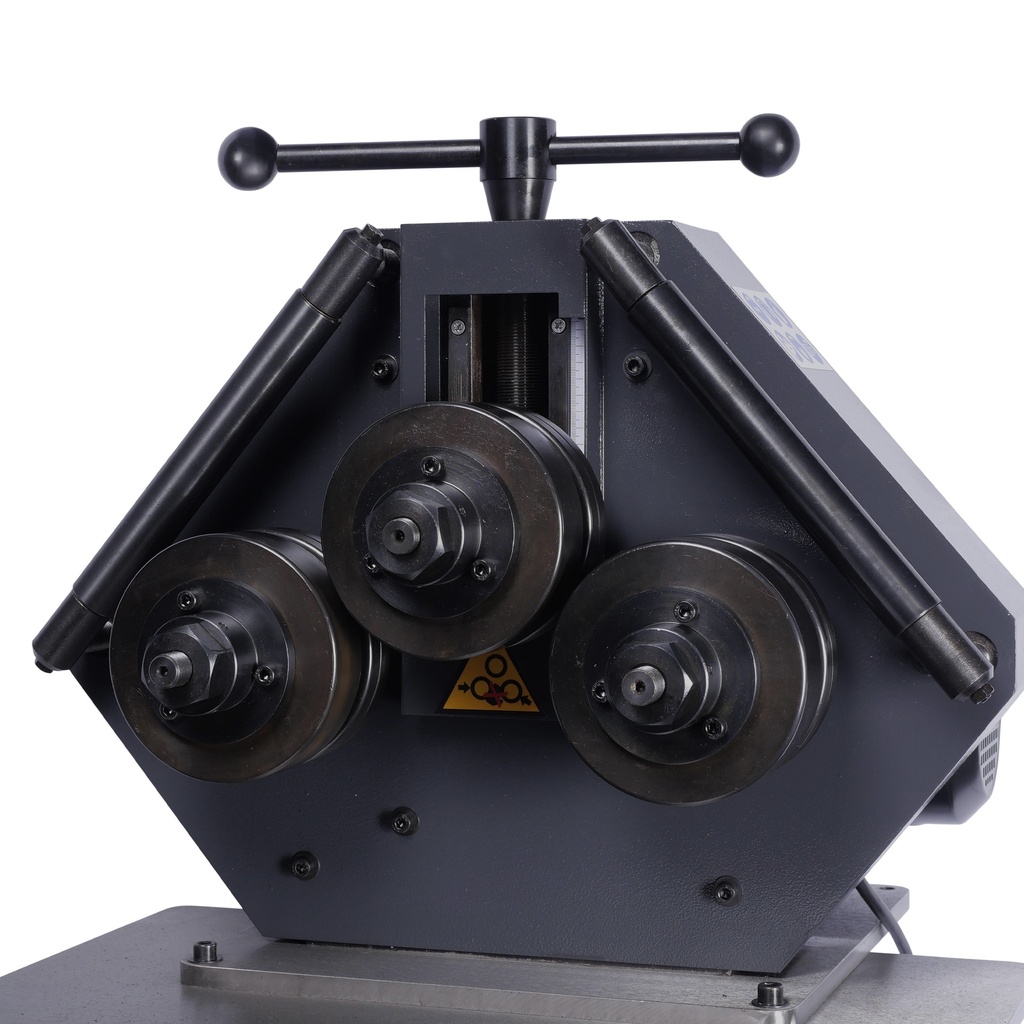

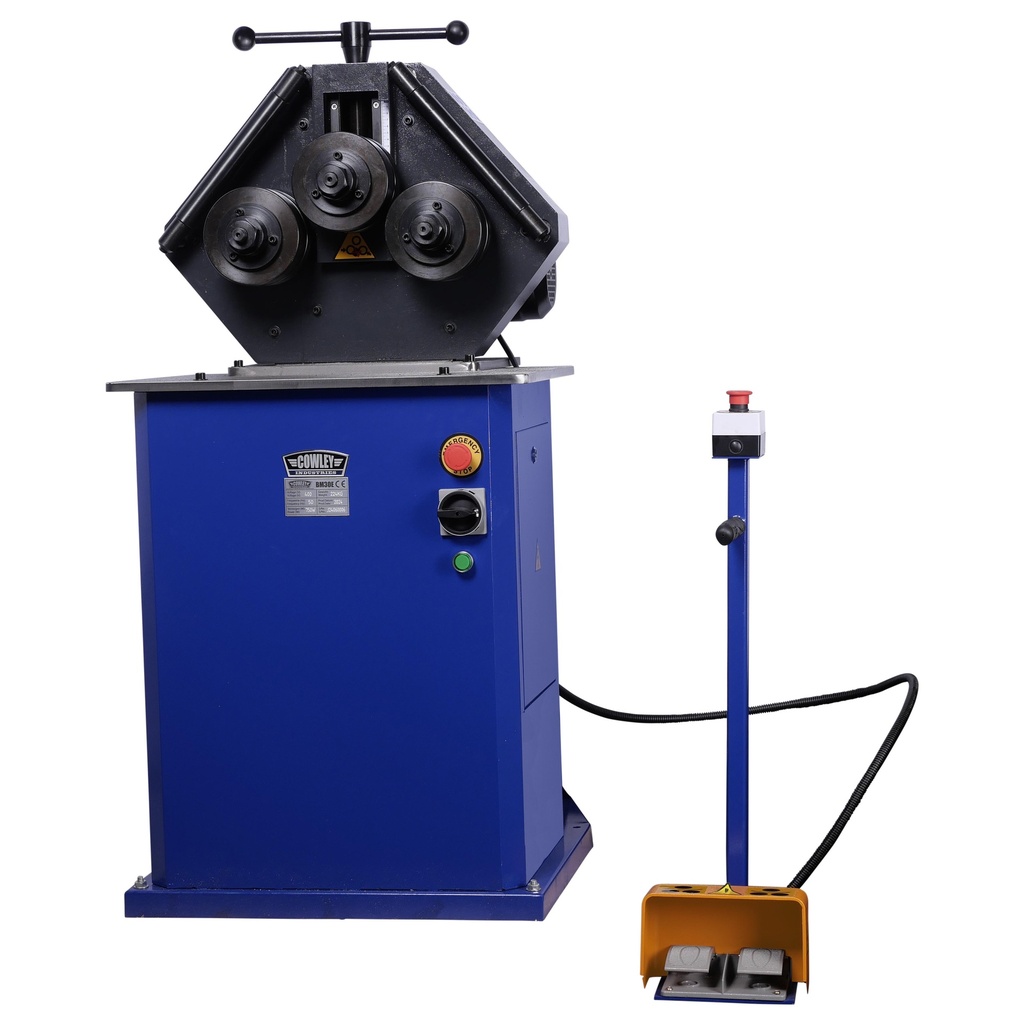

Round bending machine
- max. capacity:
pipe steel = 30 x 1mm
square tube steel = 30 x 30 x 1mm
round steel = 16mm
flat steel = 30 x 10mm
- diameter of roller shaft = 30mm

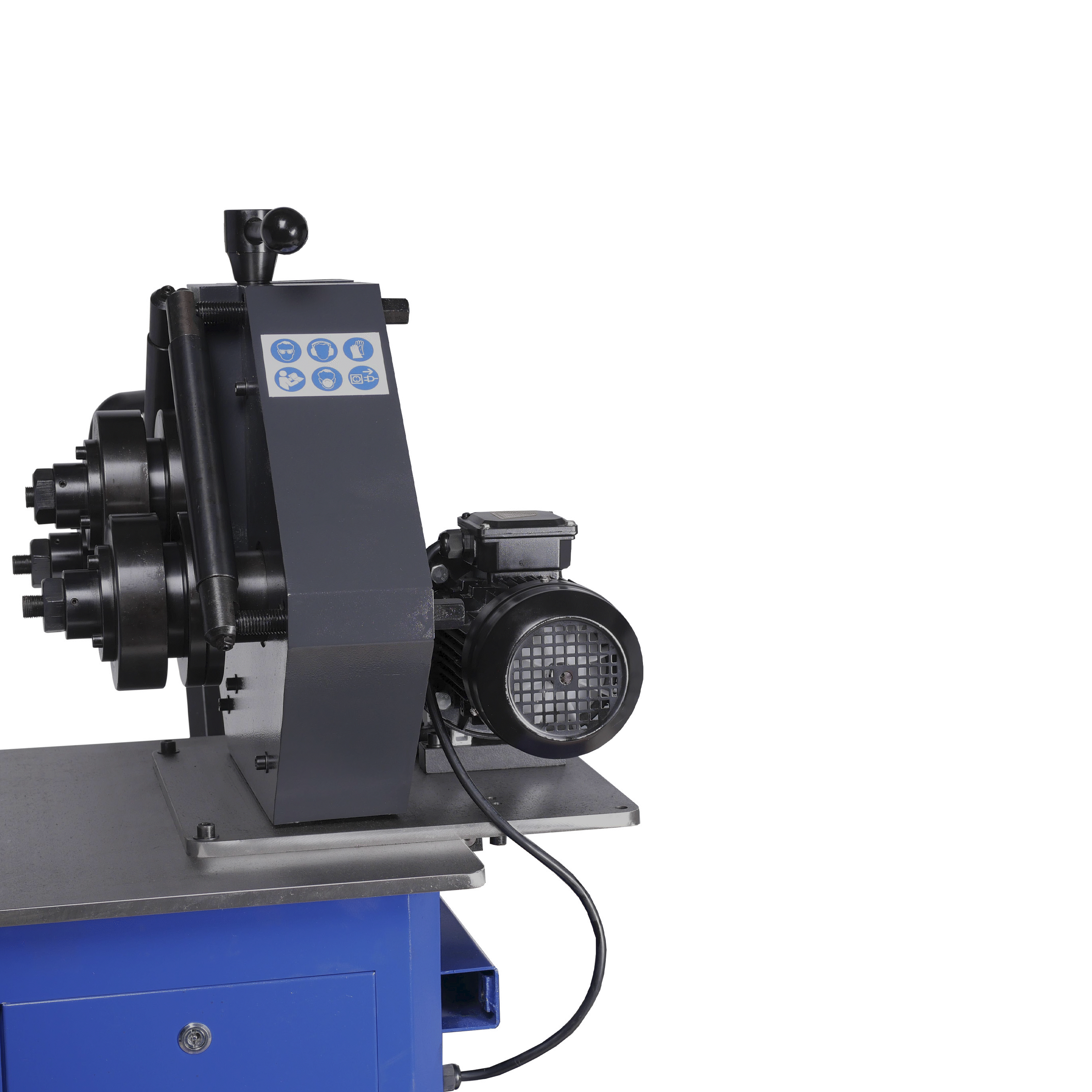

- motor power = 0,75kW / 1HP
- power = 400V / 16A
- rotate speed = 9rpm
- standard deliverd with rolls as on image
- horizontal en vertical operation
Technical specifications
Dimensions and weights
- Weight =282.0Kg
- Product weight =244.0Kg
- Length =1200.0mm
- Width =750.0mm
- Height =1210.0mm
- Product Length =1100.0mm
- Product Width =700.0mm
- Product Height =1150.0mm
