Product Code: BSIH10
EAN: 8720028081448
PRODUCT DESCRIPTION

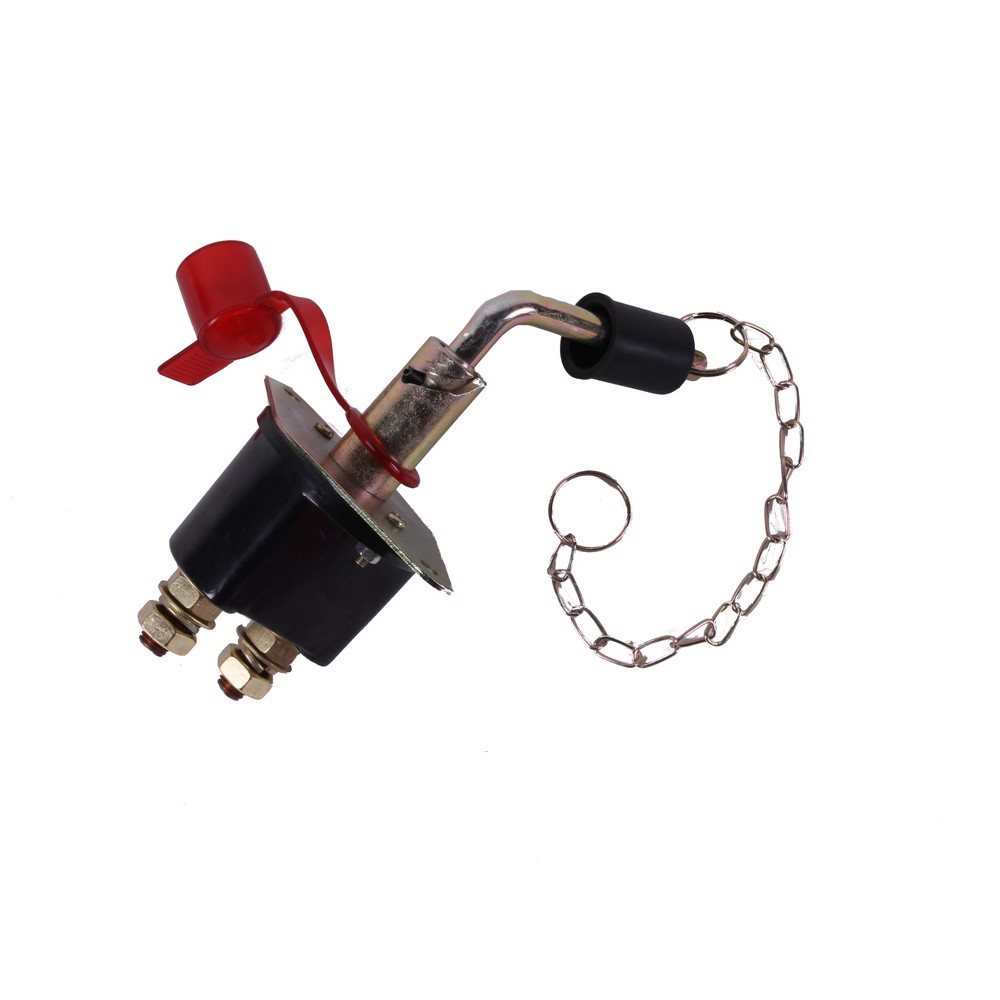

Battery isolator kill switch
This Battery kill switch allows you to instanly shut of the power of youre battery. The switch is equiped with an removable key, ideal against current leakage and unauthorized use.
Specifications:
- voltage = 12v/24v
- current = 500amp at 12v and 250amp at 24v (continuous)
- max current = 1000amp (intermittent)
- build in size = 63mm
- fixing holes dia = 6mm
- fixing holes centr = 100mm
- height above panel = 40mm (without key)
- height above panel = 100mm (with key)
- depth below panel = 80mm
Technical specifications
Dimensions and weights
- Weight =0.8Kg
- Product weight =0.6Kg
- Length =110.0mm
- Width =65.0mm
- Height =95.0mm
- Product Length =120.0mm
- Product Width =65.0mm
- Product Height =160.0mm
