PRODUCT DESCRIPTION

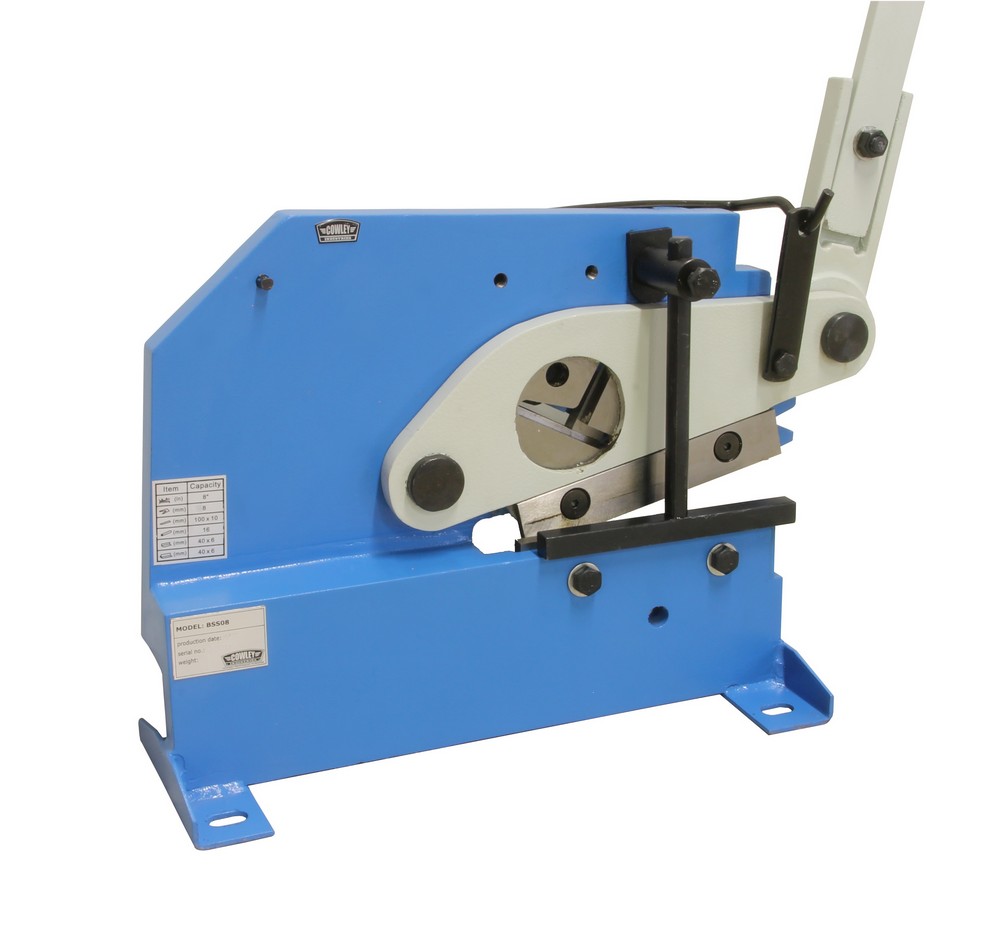

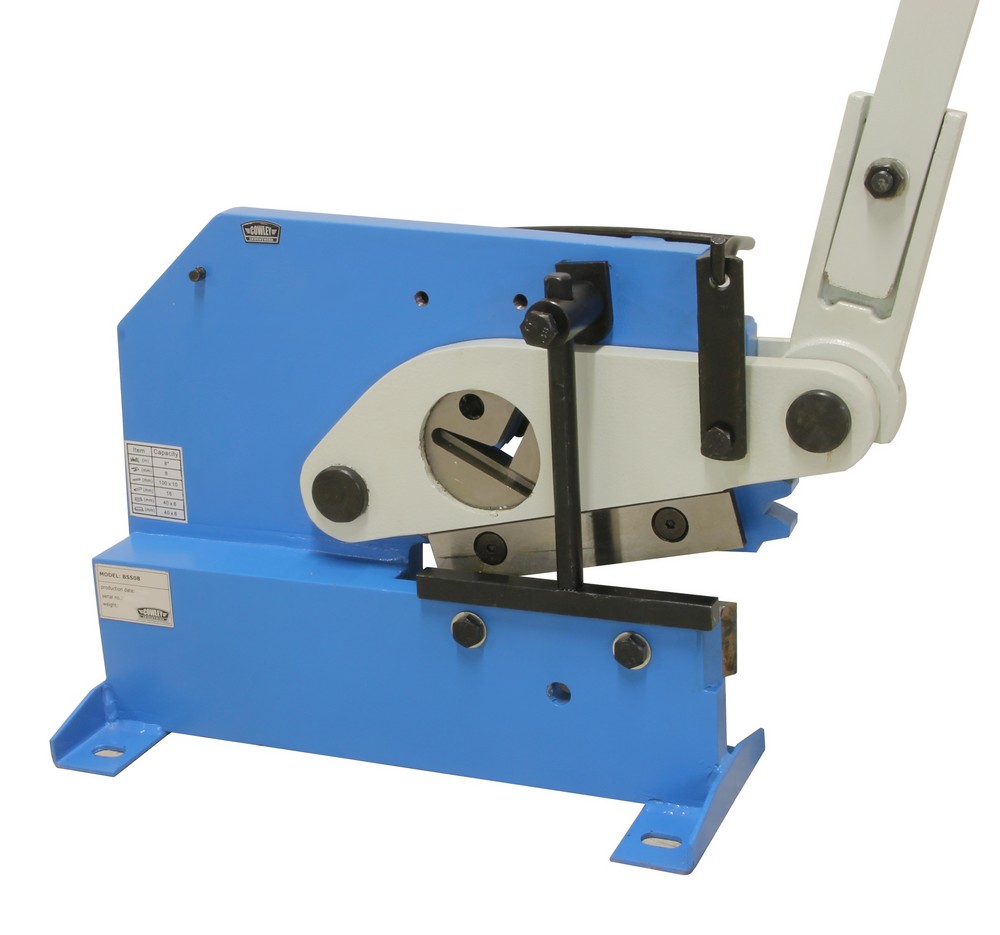

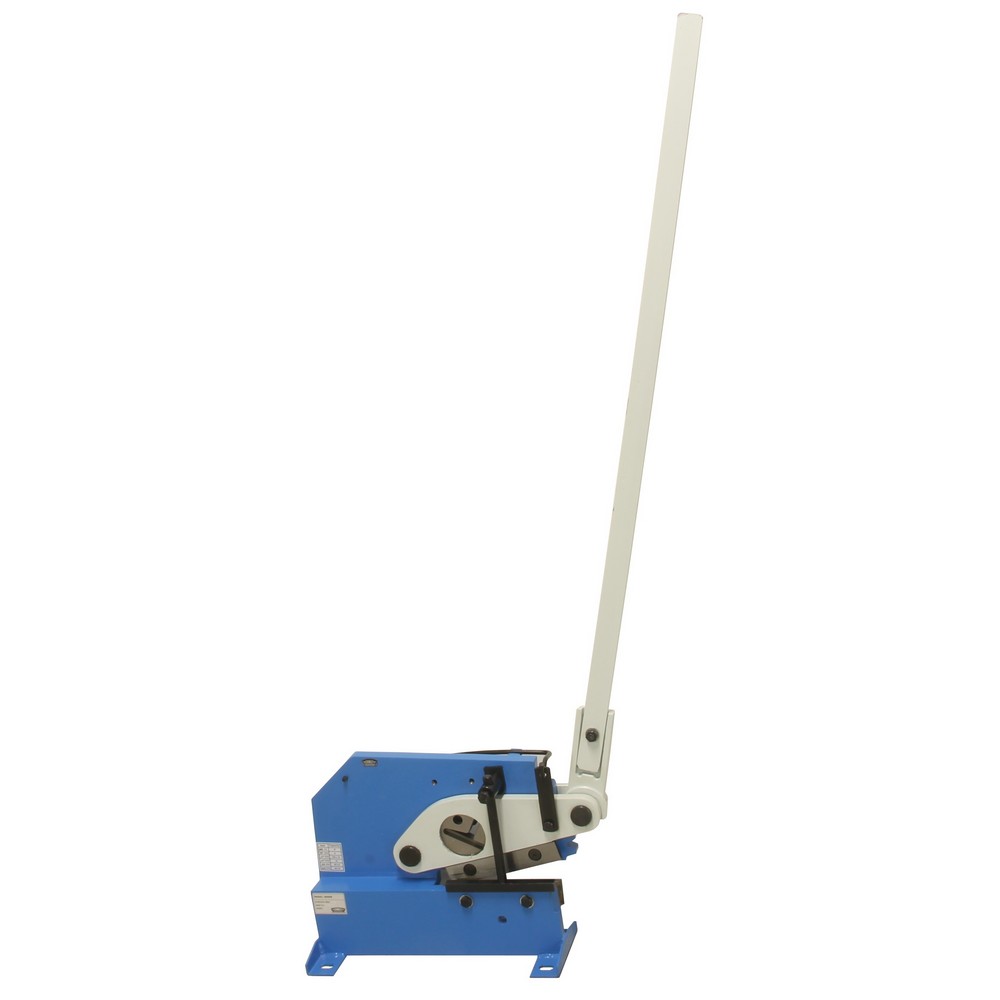

Bar and section shear
- size blade = 200mm
Capacity mild steel:
- round steel = 16mm
- square steel = 16mm
- flat steel = 100 x 10mm
- angle steel = 40 x 6mm
- T-steel = 40 x 6mm
- plate steel = 8mm
Technical specifications
Dimensions and weights
- Weight =52.0Kg
- Product weight =45.0Kg
- Length =660.0mm
- Width =280.0mm
- Height =610.0mm
- Product Length =1180.0mm
- Product Width =260.0mm
- Product Height =590.0mm
