Product Code: BZ2362
EAN: 8720028053841
PRODUCT DESCRIPTION

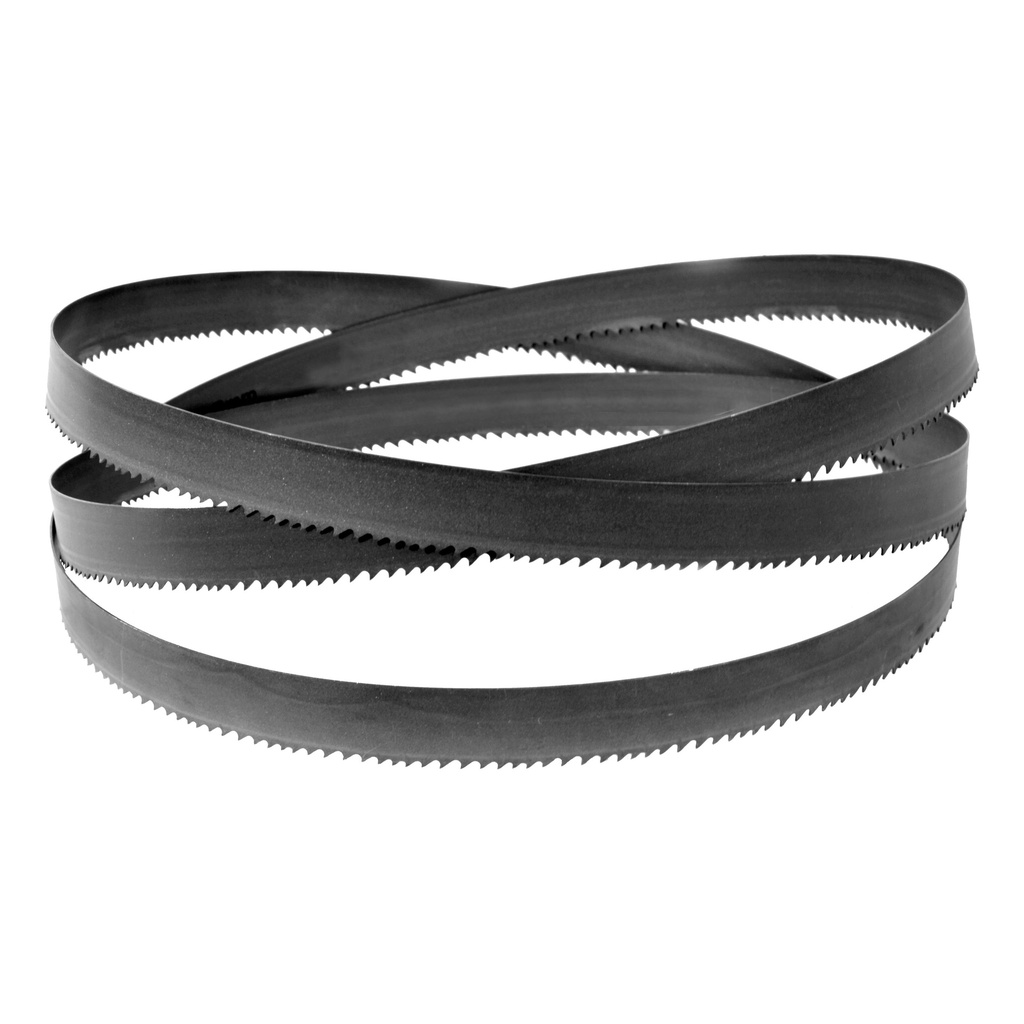

Band saw
This bimetallic band saw consists of an alloyed refined steel strip on which a strip of high-alloy HSS cobalt-molybdenum steel is welded by using electrodes.
In here, the teeth are machined, after which the saw is hardened to 67 - 69 HRC.
The band saw is used in ferrous and non-ferrous materials, each bimetal quality has its own specific application.
M42 bimetal band saw:
Due to the high hardness of the edges, 67 - 69 HRC, longer service life can be achieved and higher cutting speeds can be used. Among others used for stainless steel and materials with a tensile strength up to 1400 N /mm².
Technical specifications
- Width x thickness = 20 x 0.9 mm
- Length = 2362 mm
- TPI (teeth per inch) = 5/8
- Material = HSS steel
Dimensions and weights
- Weight =0.58Kg
- Product weight =0.33Kg
- Length =440.0mm
- Width =425.0mm
- Height =65.0mm
- Product Length =260.0mm
- Product Width =260.0mm
- Product Height =40.0mm
