Product Code: BZ3770G
EAN: 8720028107629
PRODUCT DESCRIPTION

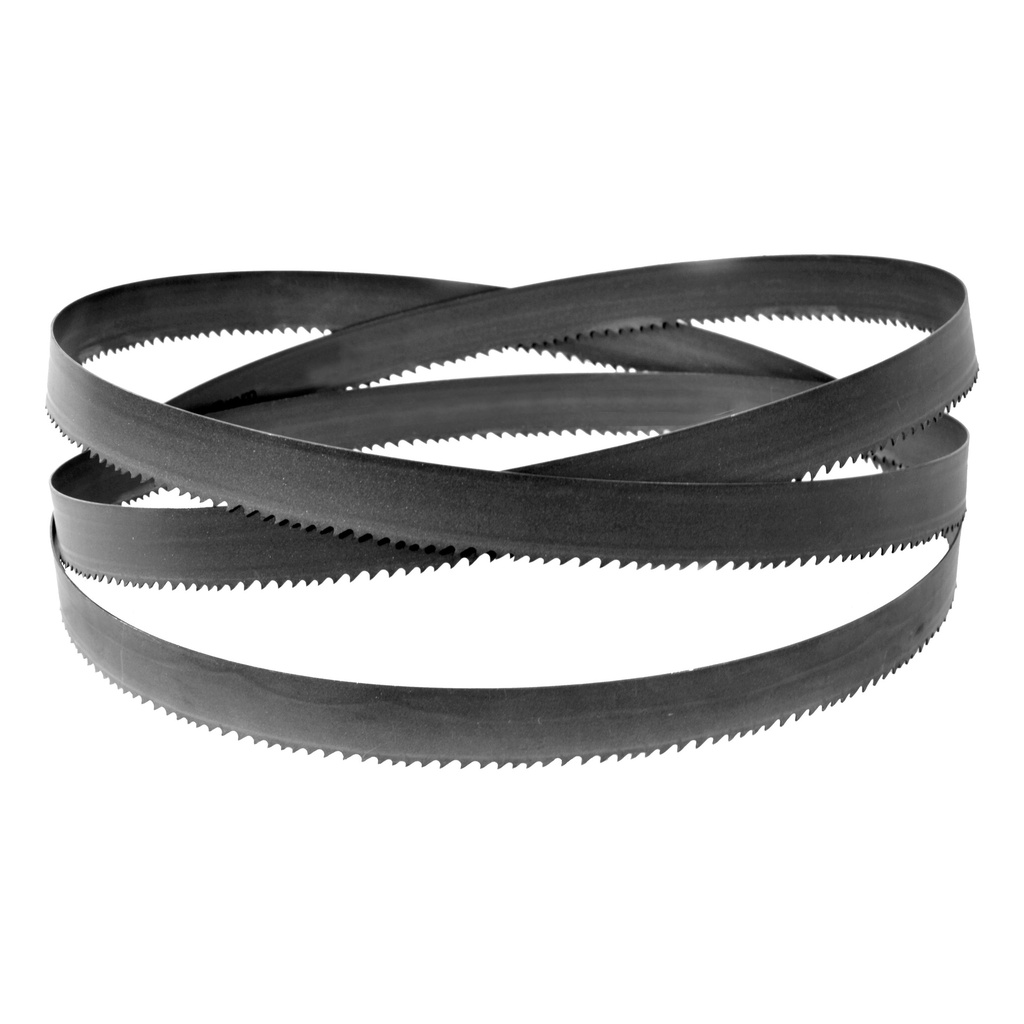

bandsaw
This bimetallic band saw from Cowley consists of an alloyed refined steel strip on which a strip of high-alloy HSS cobalt-molybdenum steel is welded by using electrodes.
Here, the teeth are machined, after which the saw is hardened to 67 - 69 HRC.
The band saw is used in ferrous and non-ferrous materials, each bimetal quality has its own specific application.
M42 bimetal band saw:
Due to the high hardness of the edges, 67 - 69 HRC, longer service life can be achieved and higher cutting speeds can be used. Among others used for stainless steel and materials with a tensile strength up to 1400 N /mm².
Technical specifications
- Width x thickness = 34 x 1.1 mm
- Length = 3770 mm
- TPI (teeth per inch) = 4/6
- Material = HSS steel
Dimensions and weights
- Weight =1.37Kg
- Product weight =1.075Kg
- Length =420.0mm
- Width =445.0mm
- Height =65.0mm
- Product Length =3770.0mm
- Product Width =1.1mm
- Product Height =34.0mm
