Lifting height of 6 meters
360 degree rotatable hooks with safety valve
Sealing against dust and moisture
High quality drive shaft, nest wheel and gearbox
Brake mechanism mounted in sturdy housing
Product Code: CB20C6
EAN: 8720028097326
PRODUCT DESCRIPTION

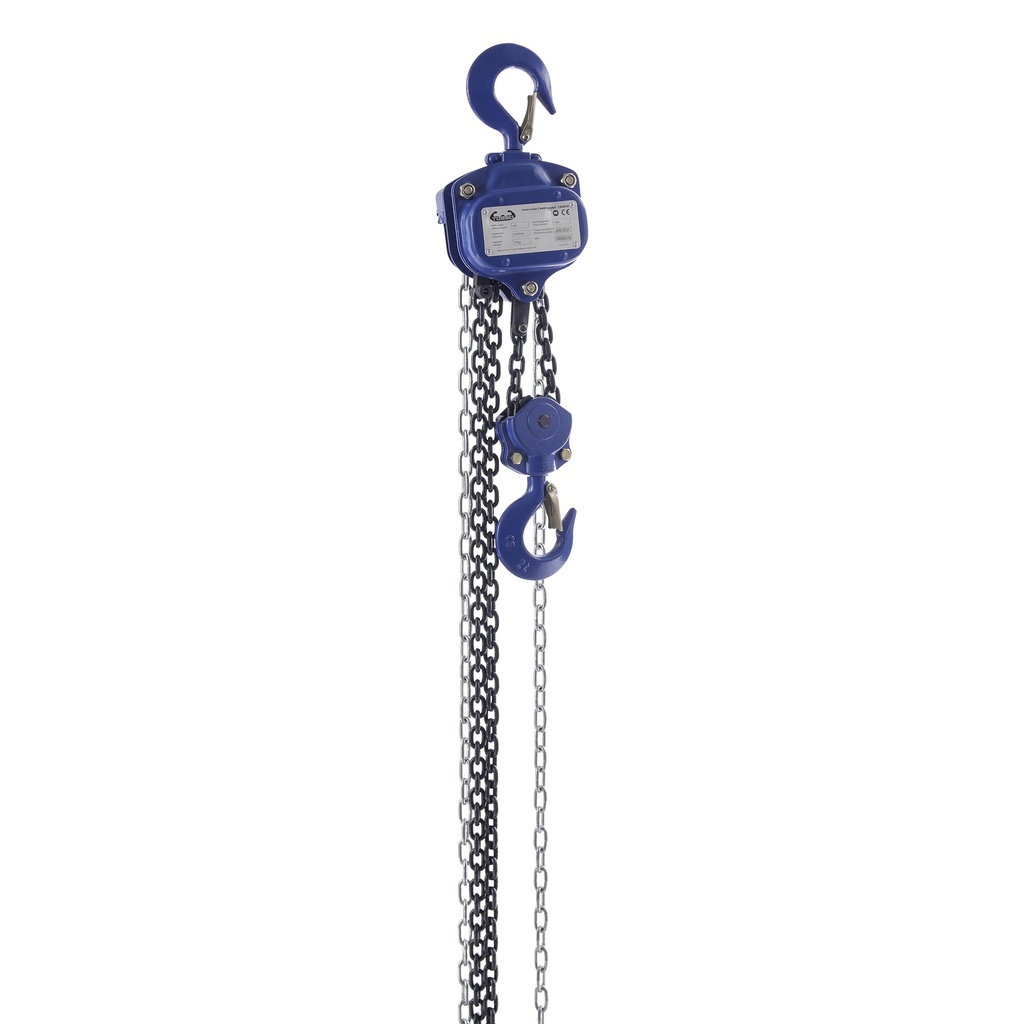

Chain hoist
These robust Torso chain hoists are ideal for lifting operations. Using the light chain its easy to lift vertically. The chain hoists are supplied with a heavy load chain and both hooks (below and above) are provided with a safety valve.
Technical specifications:
capacity = 2 ton
lifting height = 6m
max. distance between hooks = 6,35m
load chain = 6 x 30mm grade 80
load chain length = 12m
operating chain = 5 x 32mm
operating chain length = 2 x 6m
Technical specifications
Dimensions and weights
- Weight =23.54Kg
- Product weight =22.9Kg
- Length =260.0mm
- Width =215.0mm
- Height =250.0mm
- Product Length =6400.0mm
- Product Width =170.0mm
- Product Height =120.0mm
