PRODUCT DESCRIPTION

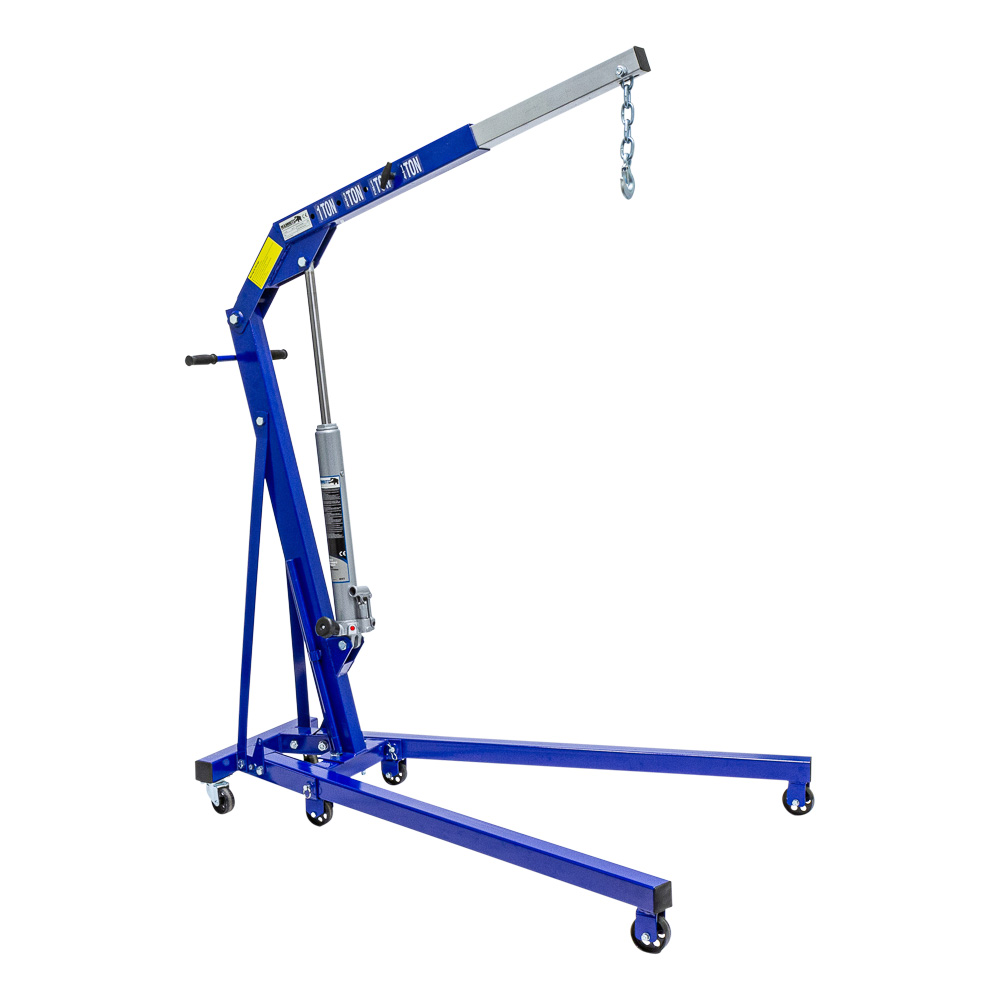

This Mammuth engine crane is a reliable choice for lifting and moving loads up to 1 ton. Ideal for workshops and garages, this crane offers the power and reliability you need.
- Weight 66kg: Sturdy steel frame.

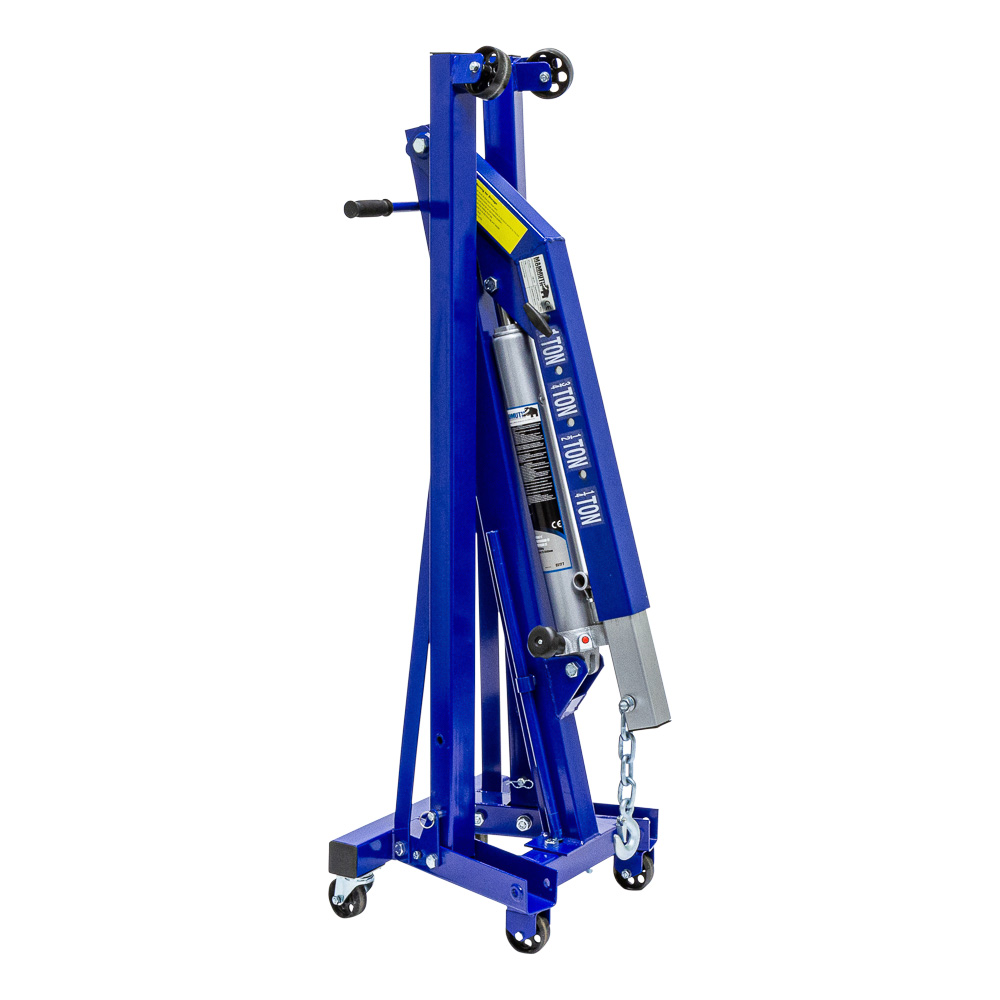

- Foldable: Takes up minimal space for storage or transport.
- Turn knob for lowering: Easy to operate.
- 4 positions: Choose the right position for every task.
Position 1 (250Kg)
Minimum height: 160mm
Maximum height: 2040mm
Arm length: 1260mm
Position 2 (500Kg)
Minimum height: 245mm
Maximum height: 1975mm
Arm length: 1170mm
Position 3 (750Kg)
Minimum height: 330mm
Maximum height: 1910mm
Arm length: 1080mm
Position 4 (1000Kg)
Minimum height: 415mm
Maximum height: 1845mm
Arm length: 990mm
Technical specifications
- Material = Steel
- Lifting capacity = 1000 kg
- Length folded = 570 mm
- Width folded = 485 mm
- Height folded = 1520 mm
- Base height = 185 mm
- Wheel material = Cast iron
- Front wheel diameter = ø89 mm
- Middle wheel diameter = ø76 mm
- Rear wheel diameter = ø76 mm
- Oil capacity = 0.55 L
- Oil type = OKCH68
Dimensions and weights
- Weight =69.0Kg
- Product weight =66.0Kg
- Length =1440.0mm
- Width =455.0mm
- Height =180.0mm
- Product Length =1515.0mm
- Product Width =1050.0mm
- Product Height =1445.0mm
