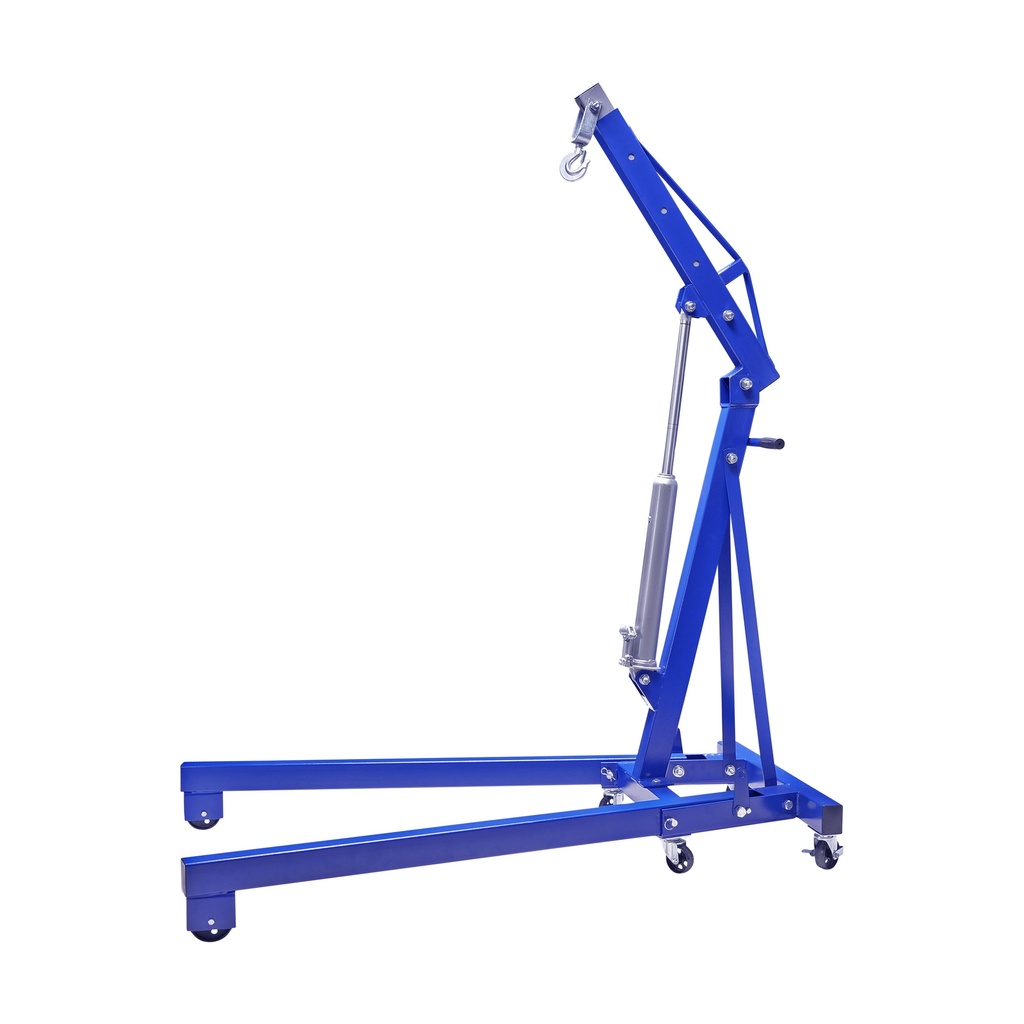

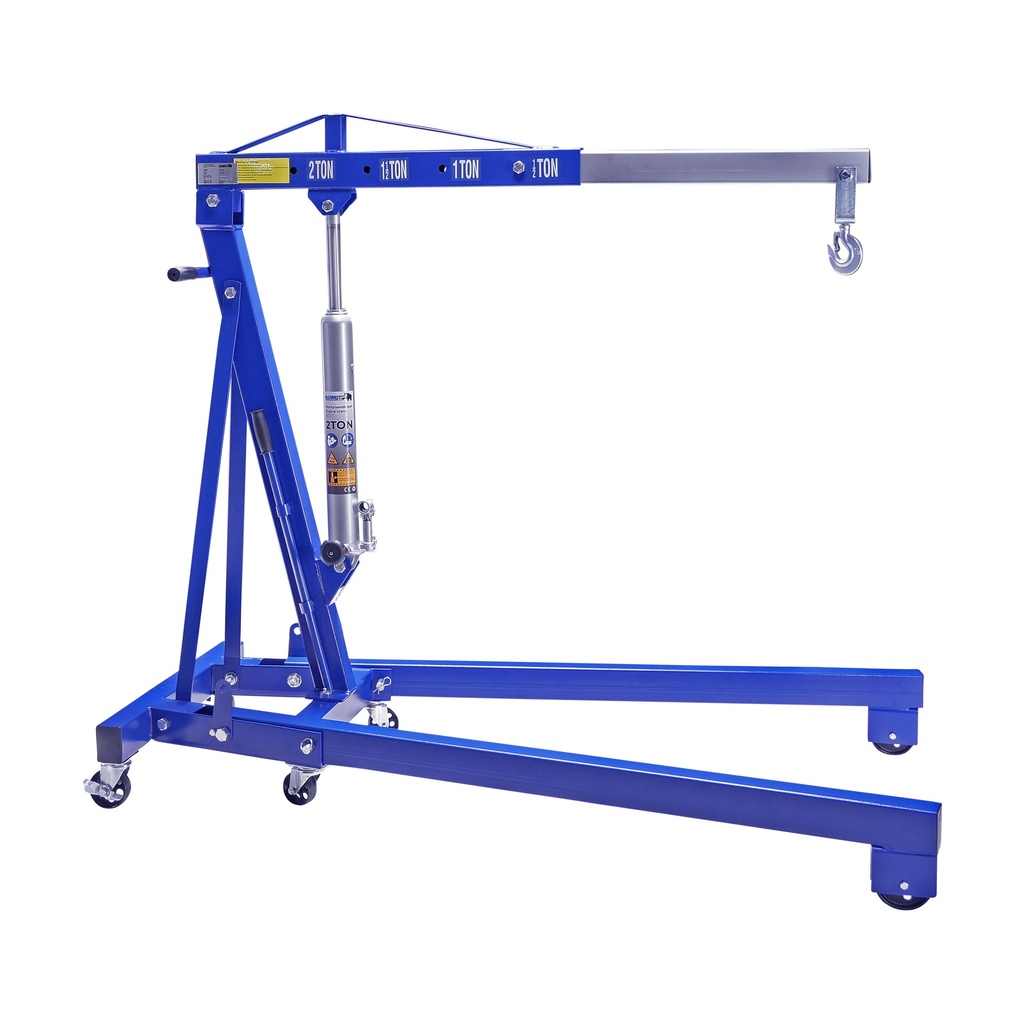

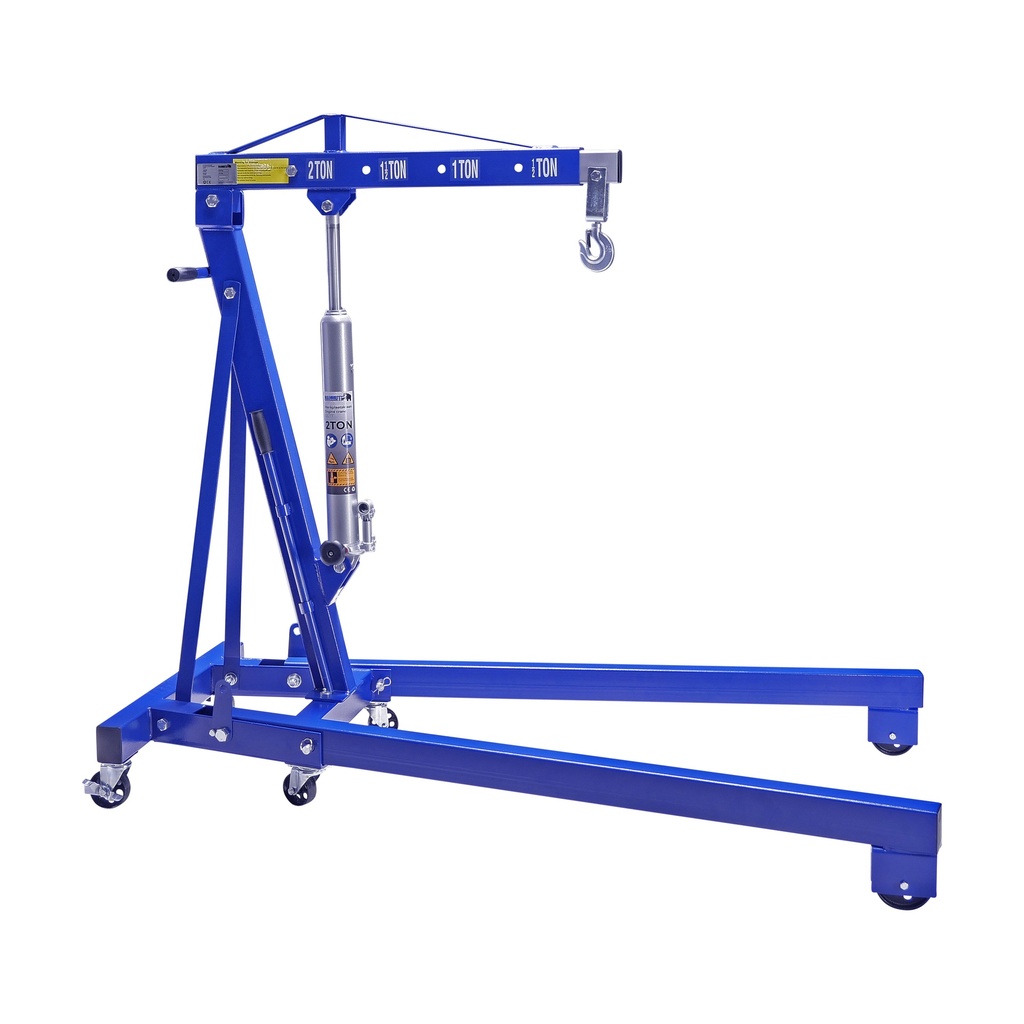

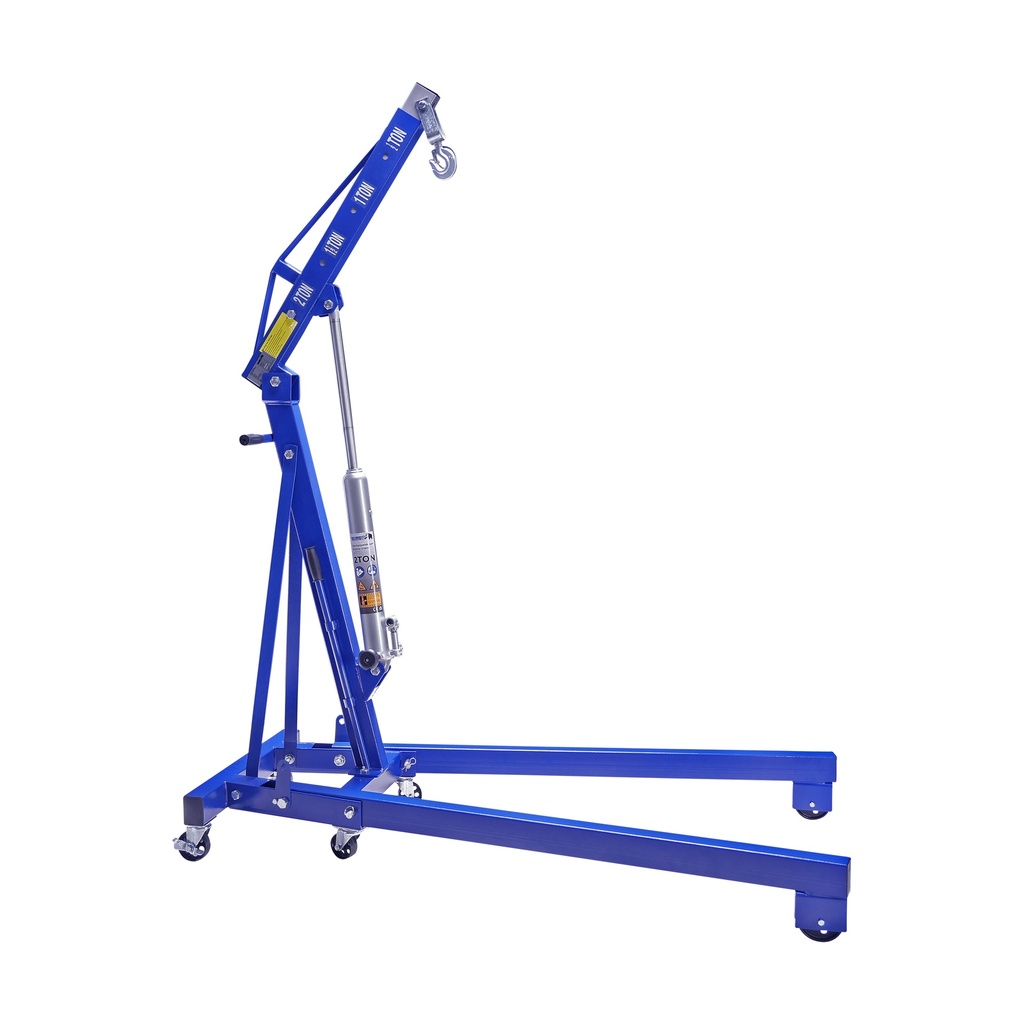

PRODUCT DESCRIPTION
This Mammuth engine crane is a reliable choice for lifting and moving loads up to 2 ton. Ideal for workshops and garages, this crane offers the power and reliability you need.
- Weight 91kg: Sturdy steel frame.

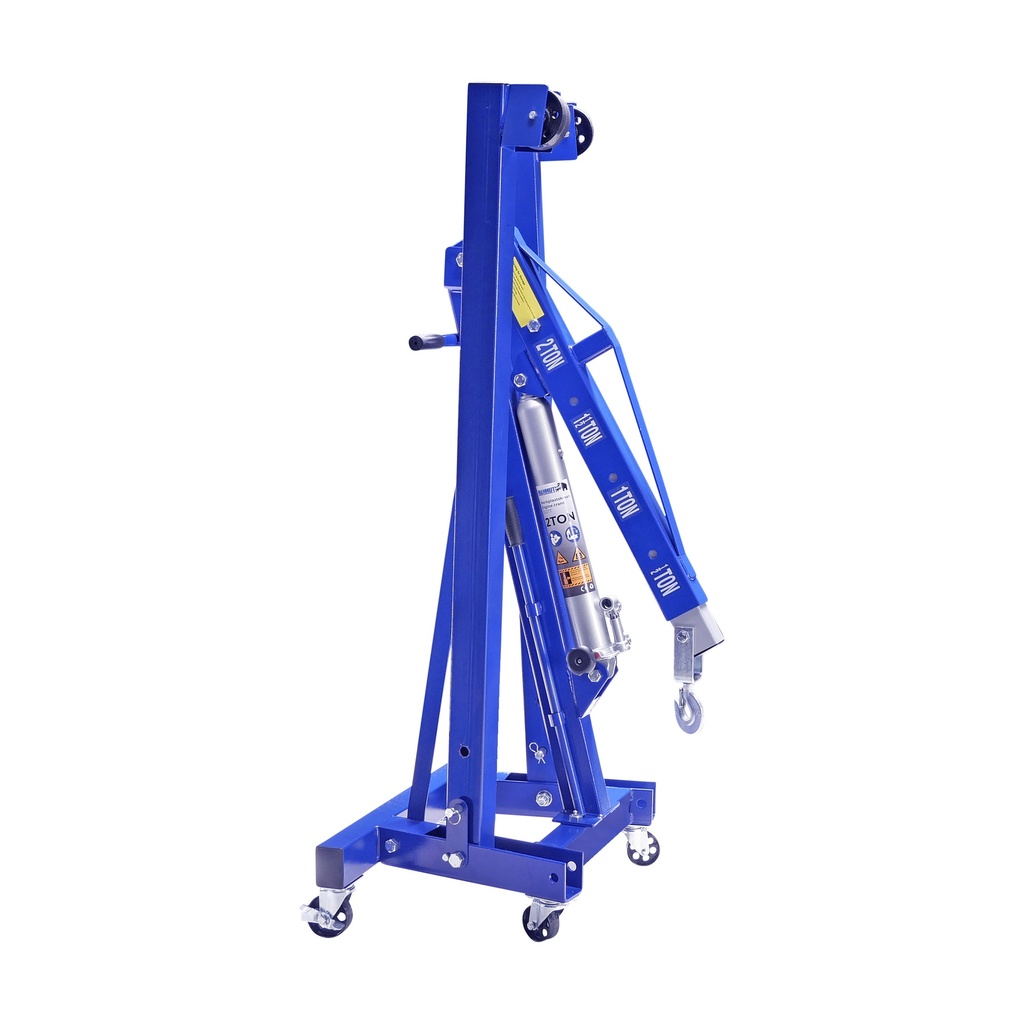

- Foldable: Takes up minimal space for storage or transport.
- Turn knob for lowering: Easy to operate.
- Lifting capacity 2 tons: Suitable for heavy lifting tasks.
- 4 positions: Choose the right position for every task.
Position 1 (500Kg)
Minimum height: 25mm
Maximum height: 2240mm
Arm length: 1460mm
Position 2 (1000Kg)
Minimum height: 138mm
Maximum height: 2108mm
Arm length: 1290mm
Position 3 (1500Kg)
Minimum height: 285mm
Maximum height: 1976mm
Arm length: 1120mm
Position 4 (2000Kg)
Minimum height: 405mm
Maximum height: 1845mm
Arm length: 950mm
Technical specifications
- Material = Steel
- Lifting capacity = 2000 kg
- Length folded = 590 mm
- Width folded = 480 mm
- Height folded = 1515 mm
- Base height = 200 mm
- Wheel material = Cast iron
- Front wheel diameter = ø110 mm
- Middle wheel diameter = ø76 mm
- Rear wheel diameter = ø89 mm
- Oil capacity = 0.65 L
- Oil type = OKCH68
Dimensions and weights
- Weight =96.0Kg
- Product weight =91.0Kg
- Length =1585.0mm
- Width =320.0mm
- Height =190.0mm
- Product Length =1710.0mm
- Product Width =1005.0mm
- Product Height =1490.0mm
