Product Code: CP390
EAN: 8720028080441
PRODUCT DESCRIPTION

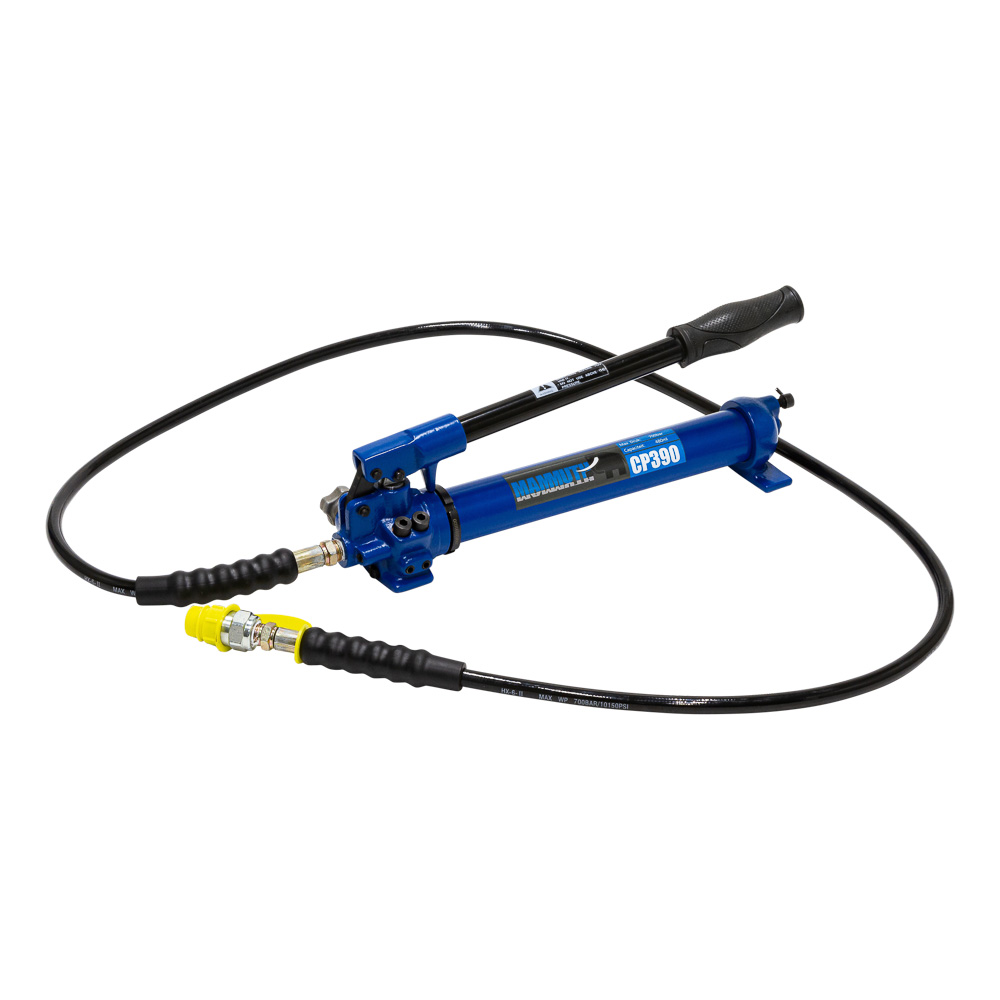

Hydraulic hand pump
Hydraulic operated pump to drive crimping head, cutting heads and punching head. Including high pressure hose and couple plug.
- max. output pressure: low pressure = 20 bar / 2MPa
high pressure = 700 bar / 70MPa
- output of the oil: low pressure = 10cc / 10ml
high pressure = 1.8cc / 1.8ml
- capacity of the oil = 320ml
Technical specifications
Dimensions and weights
- Weight =6.0Kg
- Product weight =5.0Kg
- Length =610.0mm
- Width =230.0mm
- Height =145.0mm
- Product Length =0.0mm
- Product Width =0.0mm
- Product Height =0.0mm
