Product Code: CP700B
EAN: 8720028080427
PRODUCT DESCRIPTION

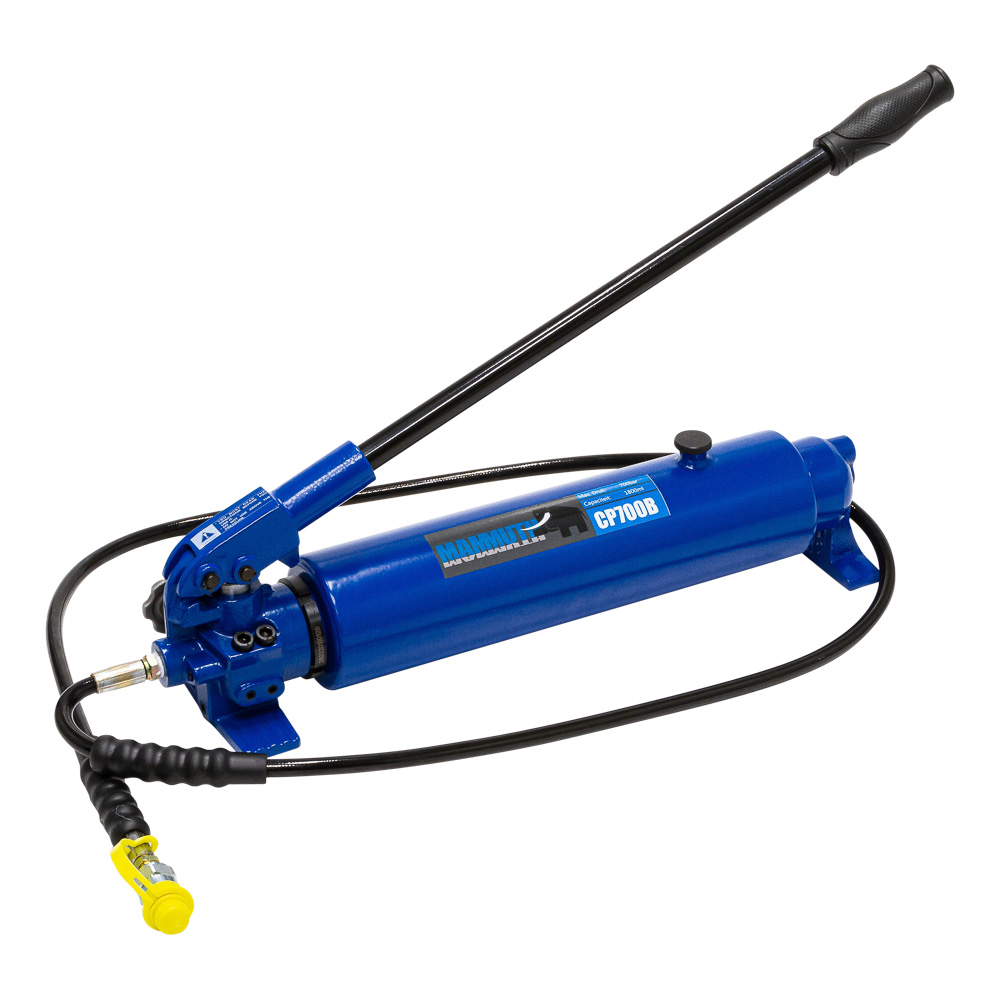

Hydraulic hand pump
Hydraulic operated pump to drive crimping head, cutting heads and punching head. Including 2M high pressure hose and couple plug.
- max. output pressure: low pressure = 20 bar / 2MPa
high pressure = 700 bar / 70MPa
- output of the oil: low pressure = 13cc / 13ml
high pressure = 2.3cc / 2.3ml
- capacity of the oil = 2000ml
Technical specifications
Dimensions and weights
- Weight =14.0Kg
- Product weight =12.25Kg
- Length =770.0mm
- Width =225.0mm
- Height =250.0mm
- Product Length =510.0mm
- Product Width =140.0mm
- Product Height =160.0mm
