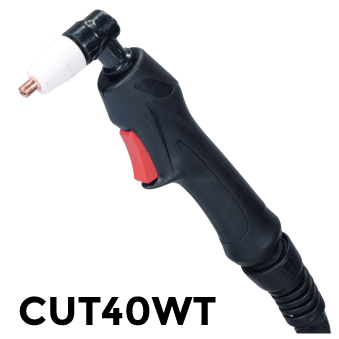

[CUT40WT] Plasmacutter torch CUT40

Plasma torch CUT40 / plasma cutting torch / cutting torch

This Soldatech plasma cutting torch has an ergonomic handle and a ball joint at the bottom of the torch. This, in combination with the optimal position of the switch, ensures great ease of use in all cutting positions.
The connection is made via a union nut with a connection thread (M16x1.5 mm screw connection). The switching contact for the ignition is established via a 2-pin connector plug.
All consumables for this torch are also available.
Suitable for several plasma cutters being sold in Europe incl.: Parkside PPS40B2, AVALON40, Stamos s-cutter 50.1 & S-cutter 40.
Plasmacutter torch CUT40 comes standard with:

• 3x CUT40WTT TIP,
• 3x CUT40WTC Ceramic cap,
• 3x CUT40WTTH Electrode,
• 1x CUT40WTCR Ceramic Ring.

Specifications:

• Length = 3 meters
• Connection =  euro connector threaded joint M16 x 1.5mm

• Duty cycle = 50%
• Current = 40A
• Air pressure = 3.5 - 6.5 bar
• Air consumption = 80L/min
