Product Code: CYL1516
EAN: 8720028081493
PRODUCT DESCRIPTION

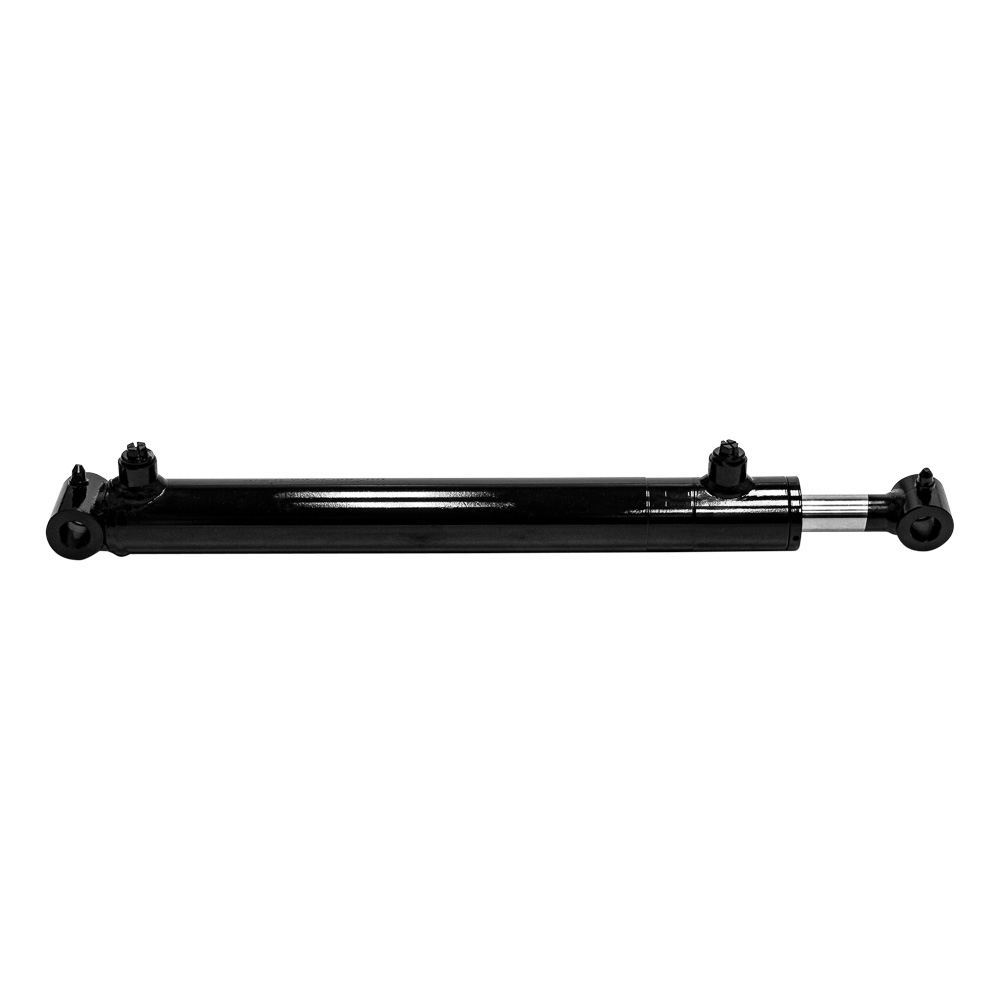

Hydraulic cilinder double action
200bar model that is designed to withstand shock loads up to 400bar
bore = 1,5'' / 38,1mm
stroke = 16'' / 406,4mm
max. push load = 2408kg
max. pull load = 1337,8kg
shaft = 1'' / 25,4mm
retracted length = 24'' / 609,6mm
Technical specifications
Dimensions and weights
- Weight =6.2Kg
- Product weight =5.9Kg
- Length =0.0mm
- Width =0.0mm
- Height =0.0mm
- Product Length =0.0mm
- Product Width =0.0mm
- Product Height =0.0mm
