Product Code: CYL1518
EAN: 8720028079957
PRODUCT DESCRIPTION

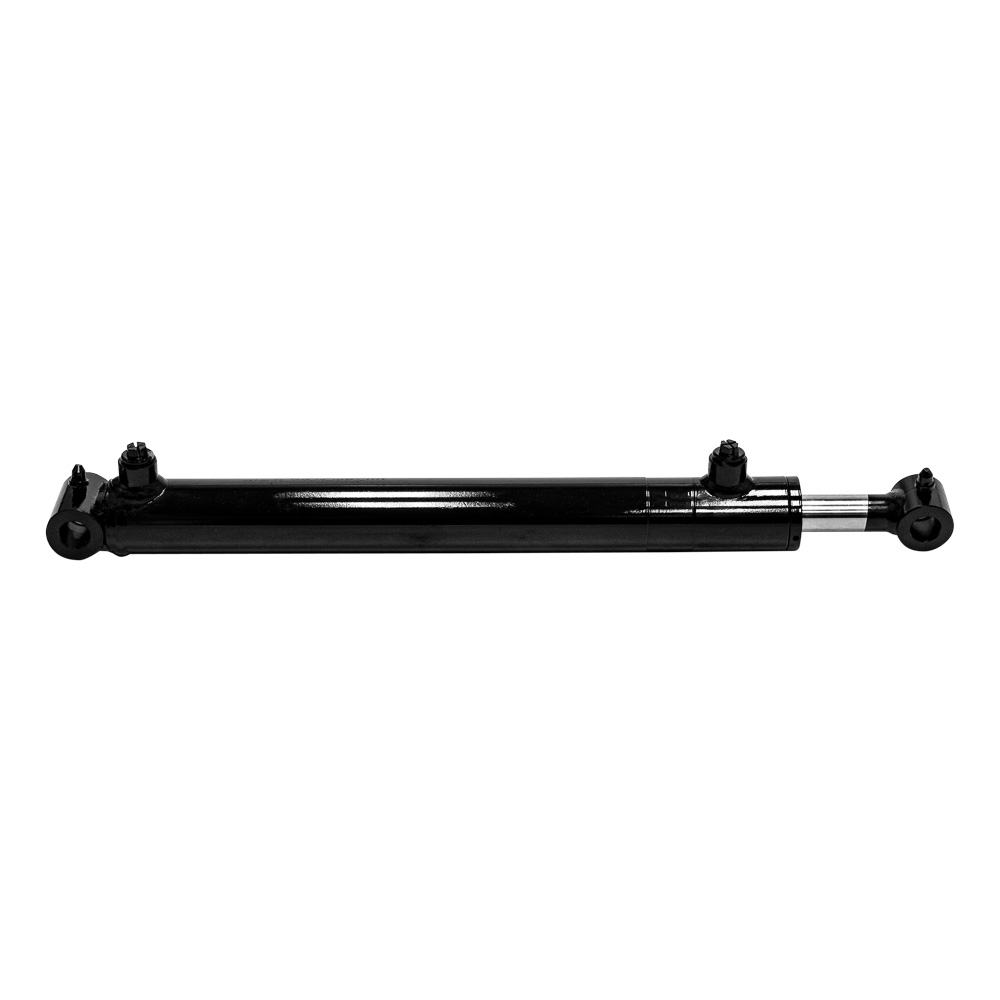

Hydraulic cilinder double action
200bar model that is designed to withstand shock loads up to 400bar
bore = 1,5'' / 38,1mm
stroke = 18'' / 457,2mm
max. push load = 2408kg
max. pull load = 1337,8kg
shaft = 1'' / 25,4mm
retracted length = 26'' / 660,4mm
Technical specifications
Dimensions and weights
- Weight =6.6Kg
- Product weight =6.4Kg
- Length =750.0mm
- Width =75.0mm
- Height =75.0mm
- Product Length =660.4mm
- Product Width =70.0mm
- Product Height =85.0mm
