Product Code: CYL2008
EAN: 8720028054930
PRODUCT DESCRIPTION

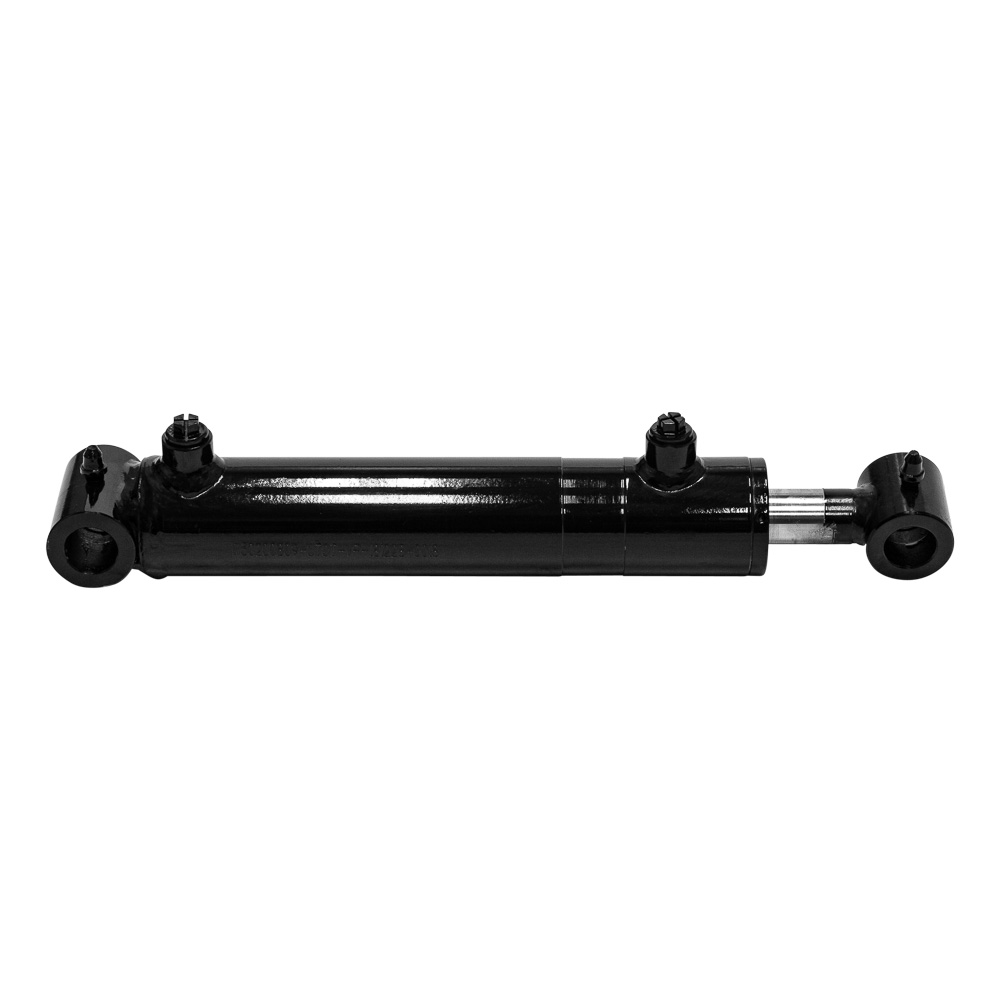

Hydraulic cylinder double action
200bar model that is designed to withstand shock loads up to 400bar
bore = 2'' / 50,8mm
stroke = 8'' / 203,2mm
max. push load = 4281kg
max. pull load = 2926,5kg
shaft = 1-1/18'' / 28,6mm
retracted length = 16'' / 406,4mm
Technical specifications
Dimensions and weights
- Weight =6.1Kg
- Product weight =5.9Kg
- Length =0.0mm
- Width =0.0mm
- Height =0.0mm
- Product Length =0.0mm
- Product Width =0.0mm
- Product Height =0.0mm
