- ATS port
- AVR (Automatic Voltage Regulation)
- Sound-dampening housing 85 dB
- Mobile chassis
- Stage V certified
Product Code: DG11000SE3A
EAN: 8720028145539
PRODUCT DESCRIPTION

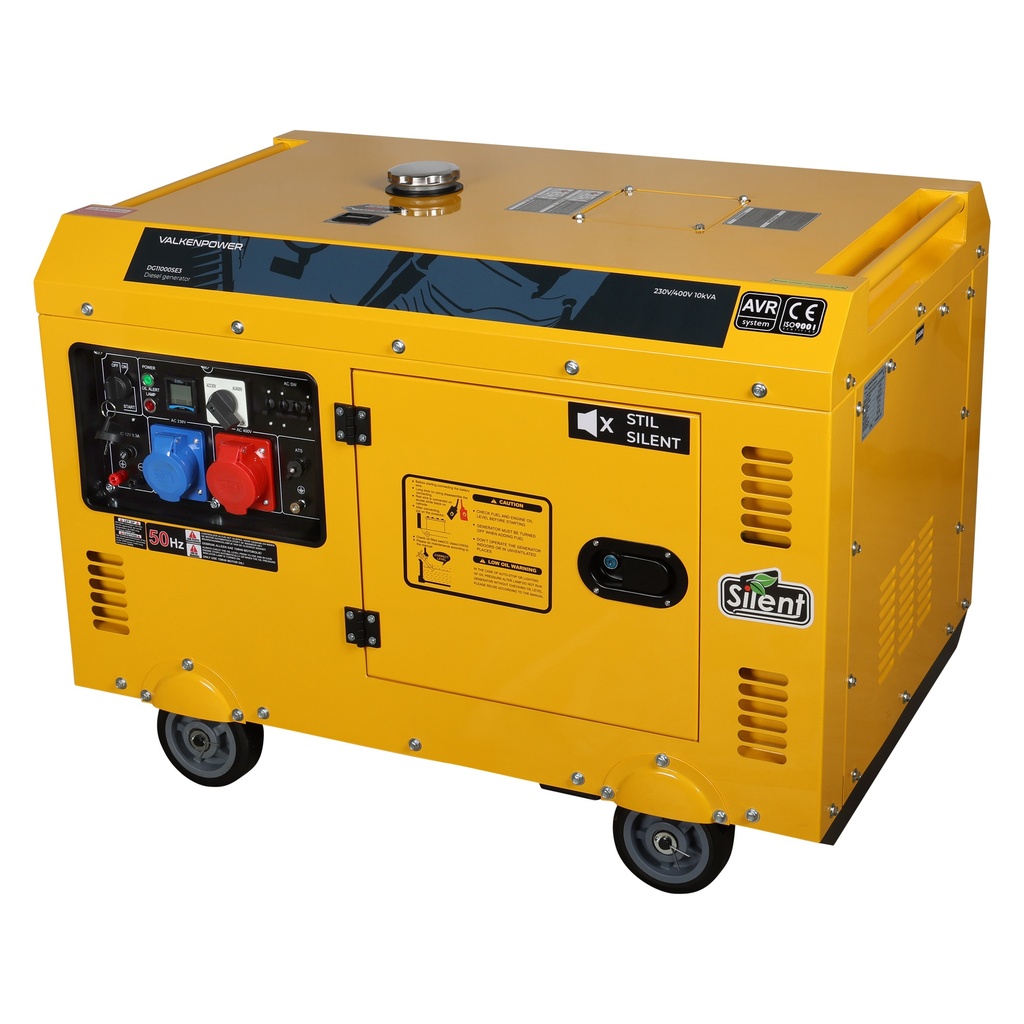

This mobile diesel generator is suitable for professional use on construction sites, in workshops, or as a reliable standby generator and backup power solution for home use. With a maximum output of 8000 watts at 400V and 6.5 kW at 230V, it is highly versatile.
AVR technology ensures a constant output voltage, making it safe for powering sensitive electronics such as laptops, battery chargers or measuring instruments. The built-in ATS connection also enables automatic mains switchover in the event of a power outage, ensuring a continuous power supply.
The unit features electric start and built-in protection against low oil level, overload and overheating. With a 30-litre fuel tank and consumption of 3.44 l/h at full load, the generator can be used for extended periods. The mobile frame allows easy relocation.
The digital VFT meter provides real-time data on voltage, frequency and operating hours. Stage V certification ensures this generator meets strict EU environmental standards for use in low-emission zones.
Key features:
- ATS port
Enables automatic mains switchover during power failure.
- Automatic Voltage Regulation (AVR)
Provides stable voltage output, suitable for sensitive electronics.
-
Sound-dampening housing 85 dB
Suitable for noise-restricted areas such as residential zones.
-
Mobile chassis
Easy to relocate thanks to the wheeled frame.
- Stage V certified
Meets EU emission standards for use in eco-sensitive areas.
This diesel generator is not only suitable for professional use, but also as a reliable backup power source for home or on-site needs.

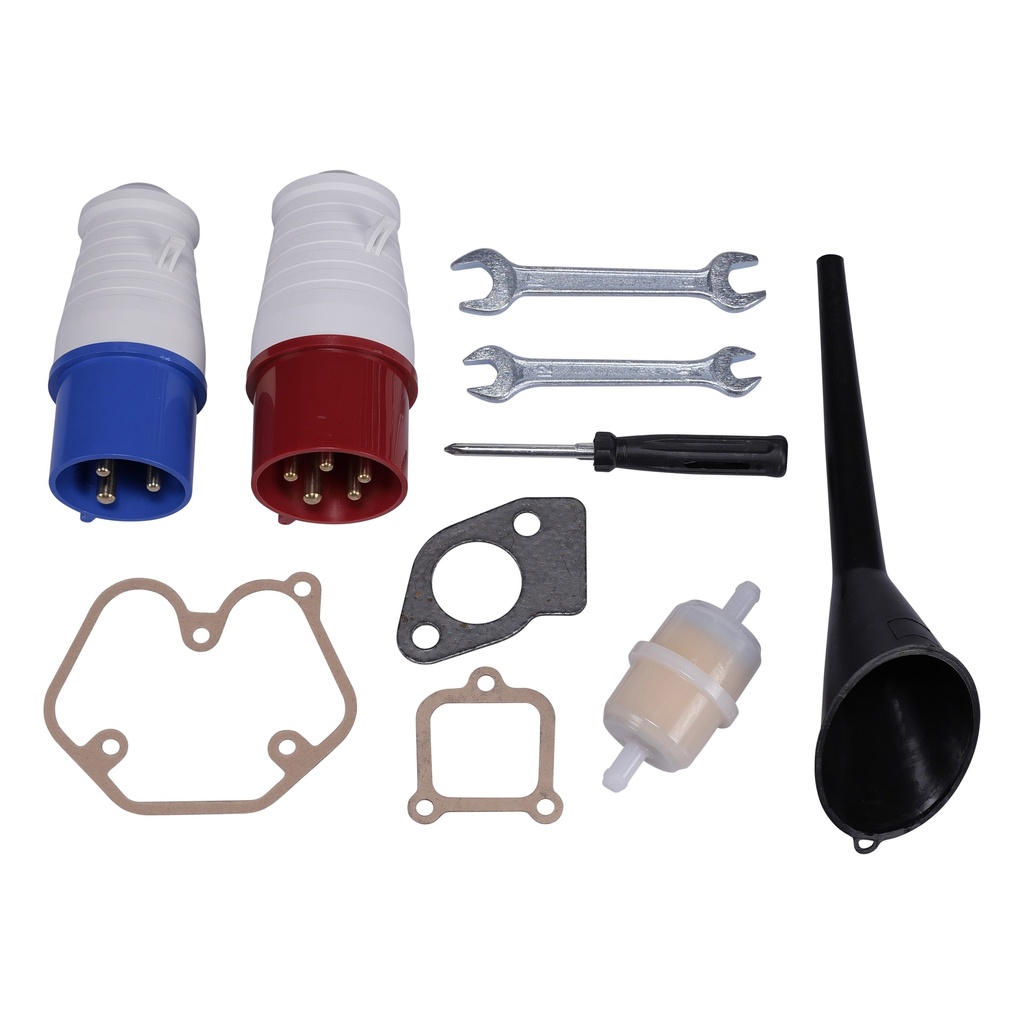

Supplied with:
1x 230V 32A plug (3-pin), 1x 400V 32A plug (5-pin), gasket set, air filter, screwdriver, 2 spanners (10–12 & 14–17), fuel funnel, and user manual.
Technical specifications
- Max. power = 8 kW
- Rated output (230V) = 6.0 kW
- Max. output (230V) = 6.5 kW
- Rated output (400V) = 7.5 kW
- Max. output (400V) = 8kW
- Output voltage = 230V / 400V
- Frequency = 50 Hz
- AC Output = 230V / 32A (3-pin) , 400V / 32A(5-pin)
- DC Output = 12V / 8.3A
- AVR = Yes
- Engine model = HR198FA
- Engine type = 4 stroke, single cylinder
- Motor speed = 3000 rpm
- Cylinder number = 1
- Cylinder capacity = 633cc
- Cooling system = air-cooled
- Starting system = Electric
- Fuel type = Diesel
- Fuel tank capacity = 30L
- Fuel consumption at 50% load = 1.7 L/h
- Fuel consumption at 100% load = 2.8 L/h
- Oil type = O15W40
- Oil capacity = 1.85 L
- Noise level = 85 dB
- Isonorm = 9001
Dimensions and weights
- Weight =240.0Kg
- Product weight =212.0Kg
- Length =1100.0mm
- Width =750.0mm
- Height =760.0mm
- Product Length =1100.0mm
- Product Width =750.0mm
- Product Height =760.0mm
