PRODUCT DESCRIPTION

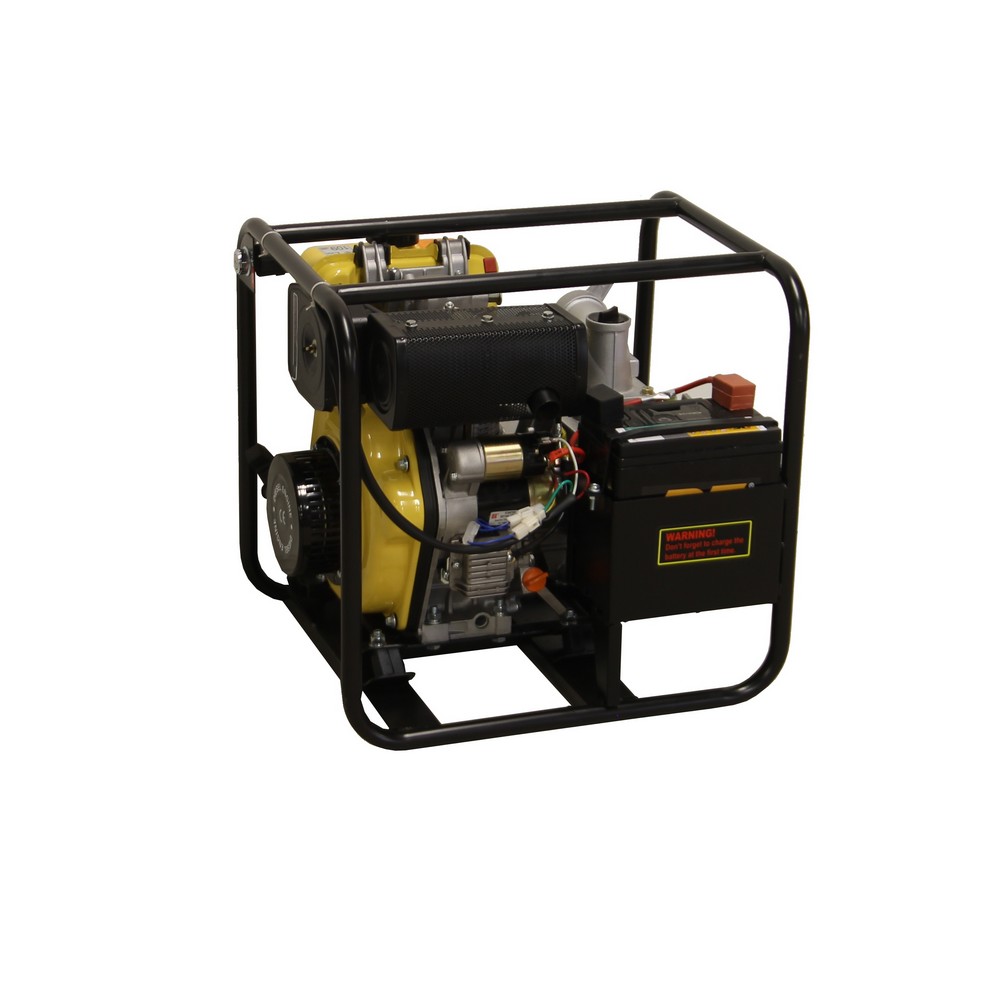

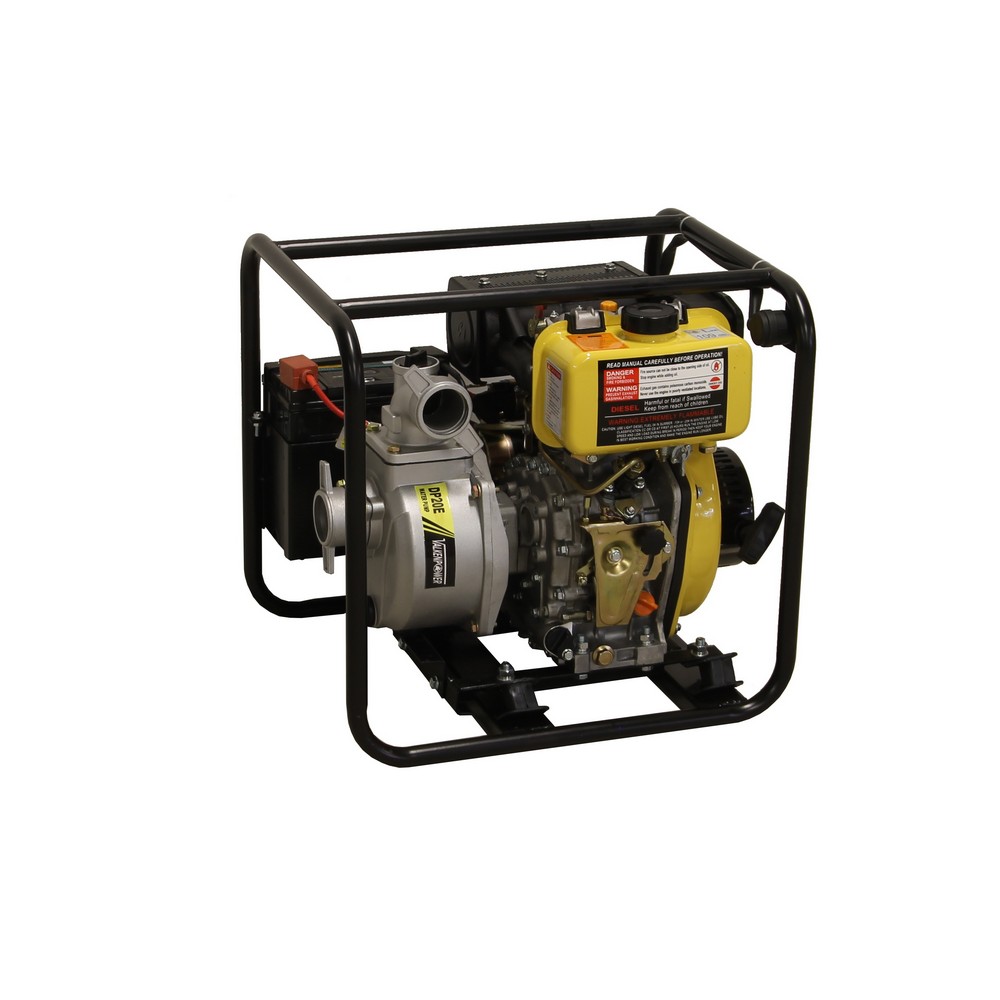

Diesel waterpump electric start
waterpump:
- connection = 50mm / 2''
- cont. head = 26m
- self-priming time = 70s/4m
- max. suction head = 8m
- cont. capacity = 36m3/hr / 600L/min
- dB (10m) = 72
- LWa = 100dB
engine:
- engine model = 170F
- engine speed = 3600rpm
- engine type = single-cylinder 4 stroke air cooled diesel engine
- displacement = 211cc
- bore stroke = 70 x 55mm
- electric start
- fuel tank capacity = 2,5L
* including hose connections
Technical specifications
Dimensions and weights
- Weight =55.0Kg
- Product weight =52.0Kg
- Length =540.0mm
- Width =470.0mm
- Height =530.0mm
- Product Length =525.0mm
- Product Width =455.0mm
- Product Height =510.0mm
