PRODUCT DESCRIPTION

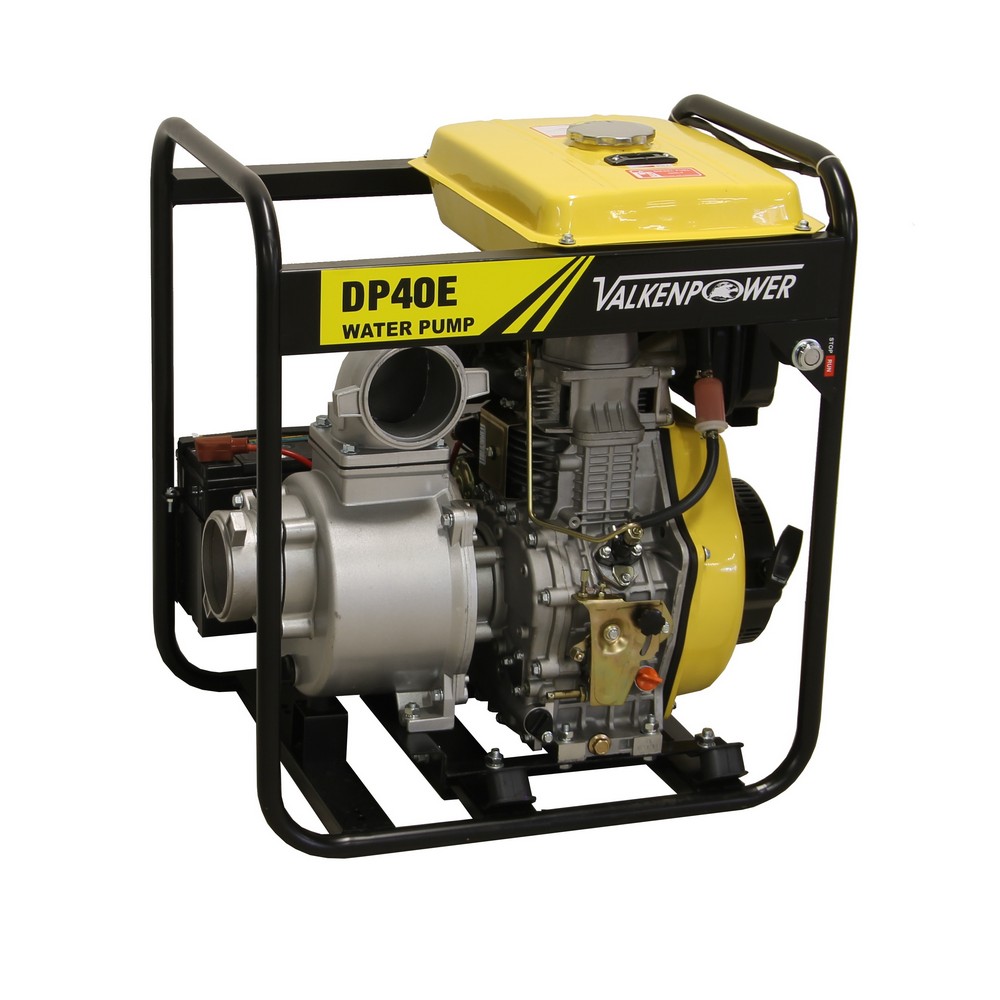

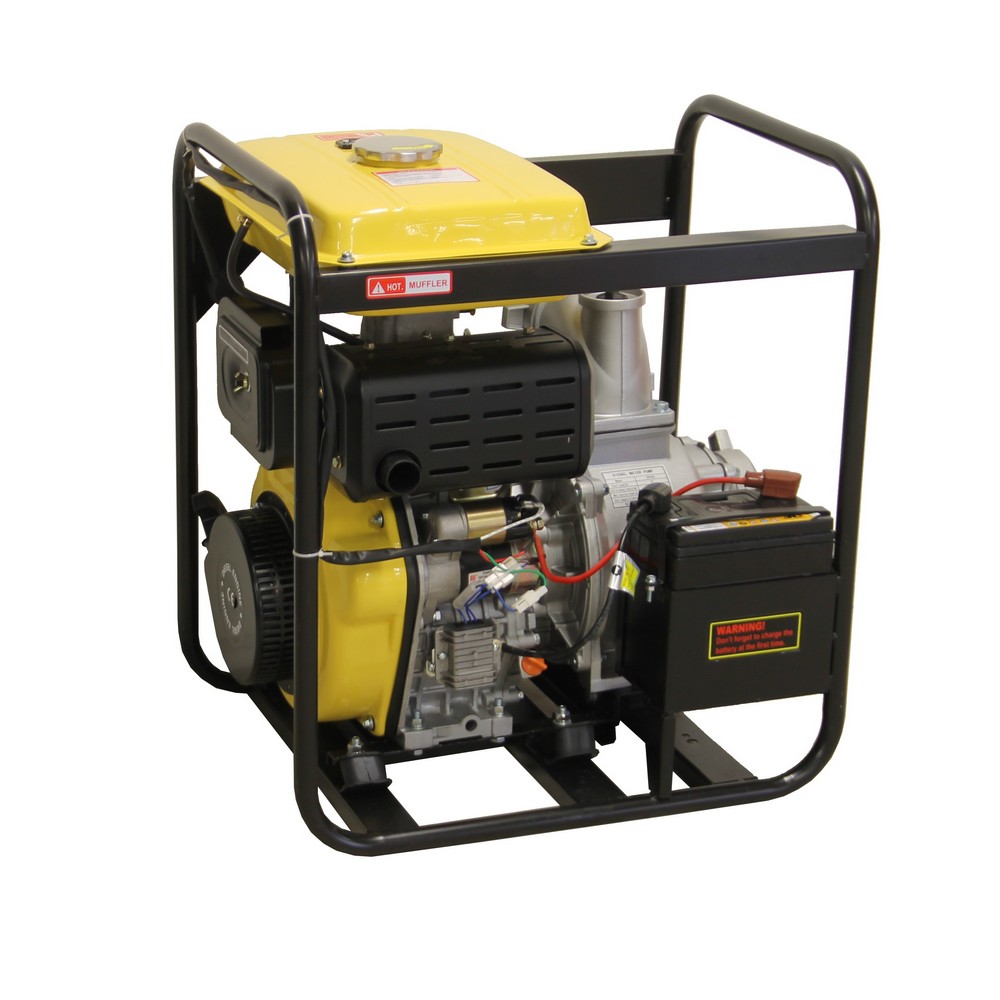

Diesel waterpump electric start
waterpump:
- connection = 100mm / 4''
- cont. head = 31m
- self-priming time = 180s/4m
- max. suction head = 8m
- cont. capacity = 96m3/hr / 1600L/min
- dB (10m) = 90
- LWa = 118dB
engine:
- engine model = 186F
- engine speed = 3600rpm
- engine type = single-cylinder 4 stroke air cooled diesel engine
- displacement = 296cc
- bore stroke = 86 x 70mm
- electric start
- fuel tank capacity = 5,5L
* including hose connections
Technical specifications
Dimensions and weights
- Weight =85.0Kg
- Product weight =69.0Kg
- Length =655.0mm
- Width =500.0mm
- Height =740.0mm
- Product Length =645.0mm
- Product Width =490.0mm
- Product Height =720.0mm
