Product Code: DP60B8A
EAN: 8720028079278
PRODUCT DESCRIPTION

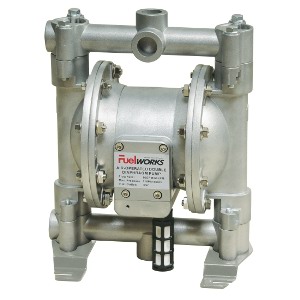

Diaphragm Pump
features an externally servicable air distribution system and all bolted construction.Include ground capability to eliminate static discharge
- material = Aluminium
- max. flow rate = 16GPM / 60 LPM
- max. suction height = 6,5FT / 2M
- max. pressure = 8bar
- inlet / outlet = 3/4"
- air inlet = 1/4''
- fluid = biodiesel and water
Technical specifications
Dimensions and weights
- Weight =7.9Kg
- Product weight =7.3Kg
- Length =335.0mm
- Width =315.0mm
- Height =205.0mm
- Product Length =240.0mm
- Product Width =190.0mm
- Product Height =285.0mm
