PRODUCT DESCRIPTION

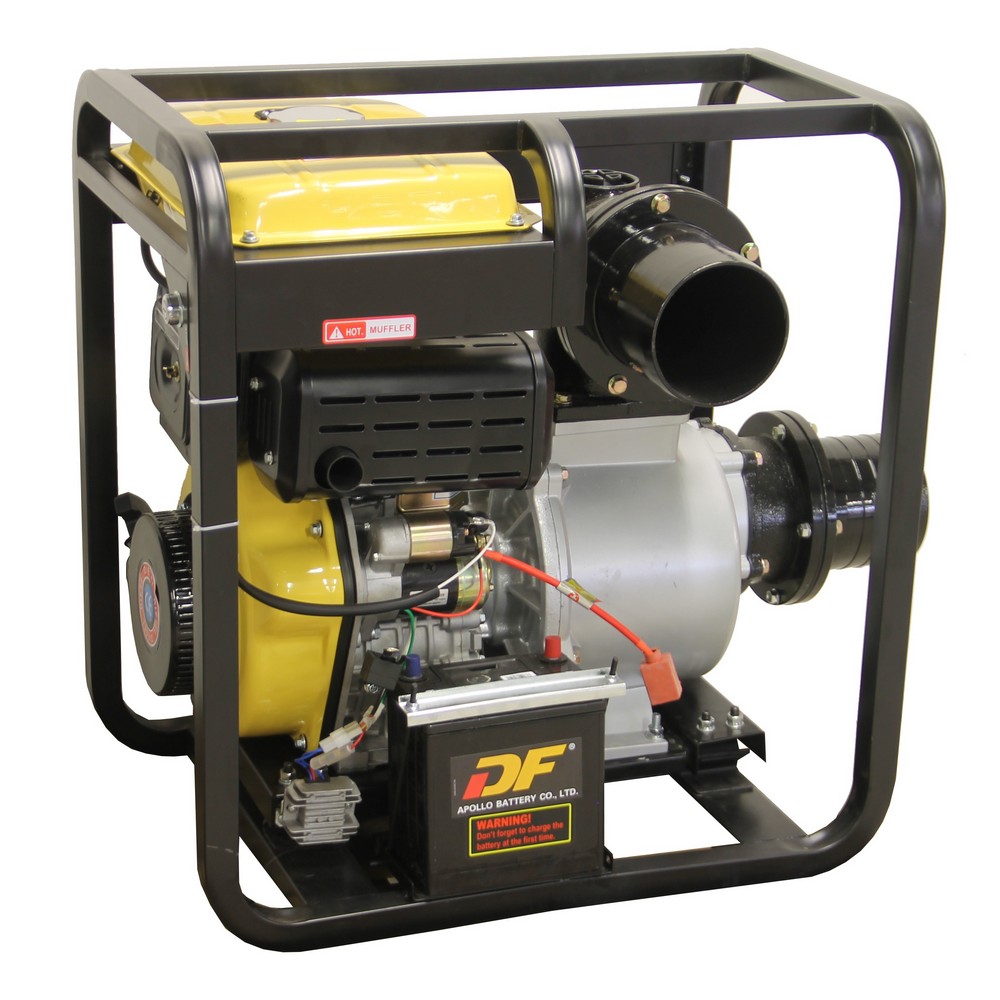

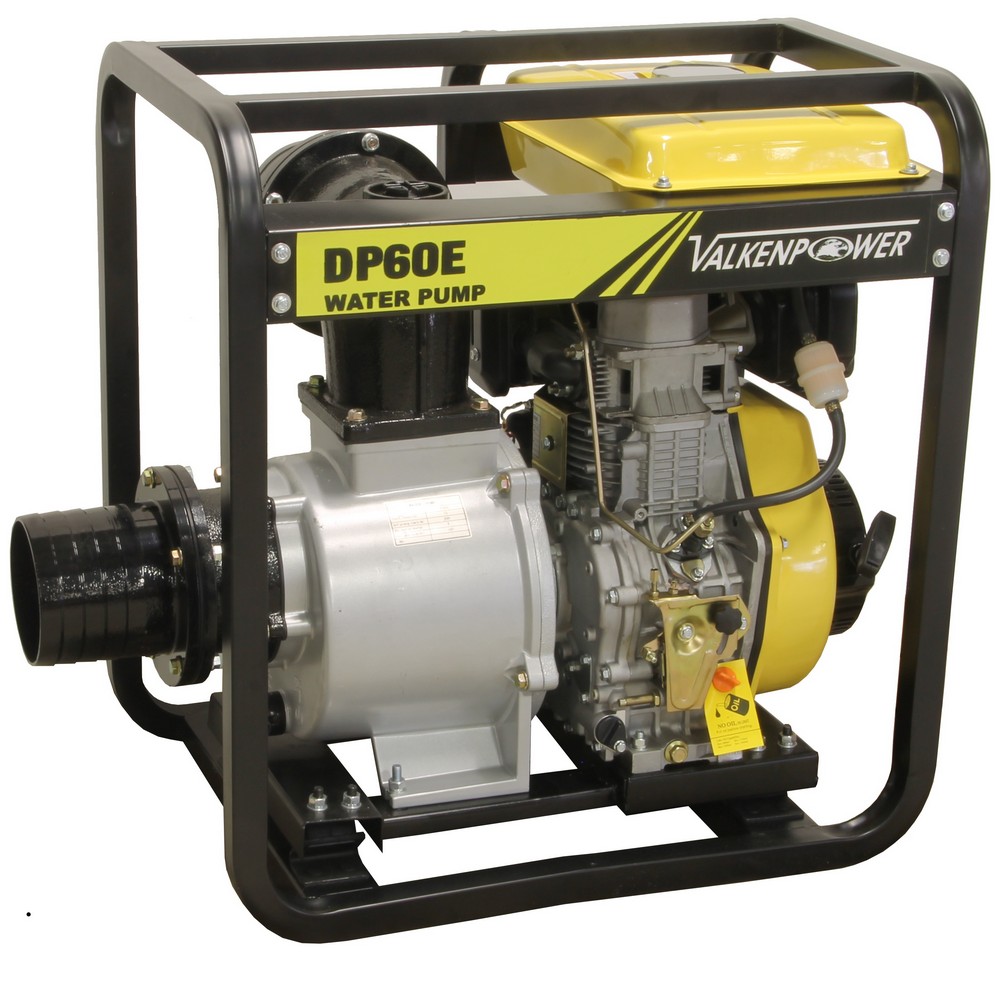

Diesel waterpump electric start
waterpump:
- connection = 150mm / 6''
- cont. head = 15m
- self-priming time = 200s/4m
- max. suction head = 6m
- cont. capacity = 180m3/hr / 3000L/min
- dB (10m) = 86
- LWa = 114dB
engine:
- engine model = 192FE
- engine speed = 3600rpm
- engine type = single-cylinder 4 stroke air cooled diesel engine
- displacement = 498cc
- bore stroke = 92 x 75mm
- electric start
- fuel tank capacity = 12,5L
Technical specifications
Dimensions and weights
- Weight =150.0Kg
- Product weight =147.0Kg
- Length =765.0mm
- Width =540.0mm
- Height =835.0mm
- Product Length =755.0mm
- Product Width =530.0mm
- Product Height =825.0mm
