Product Code: DRM31N
EAN: 8720028140763
PRODUCT DESCRIPTION

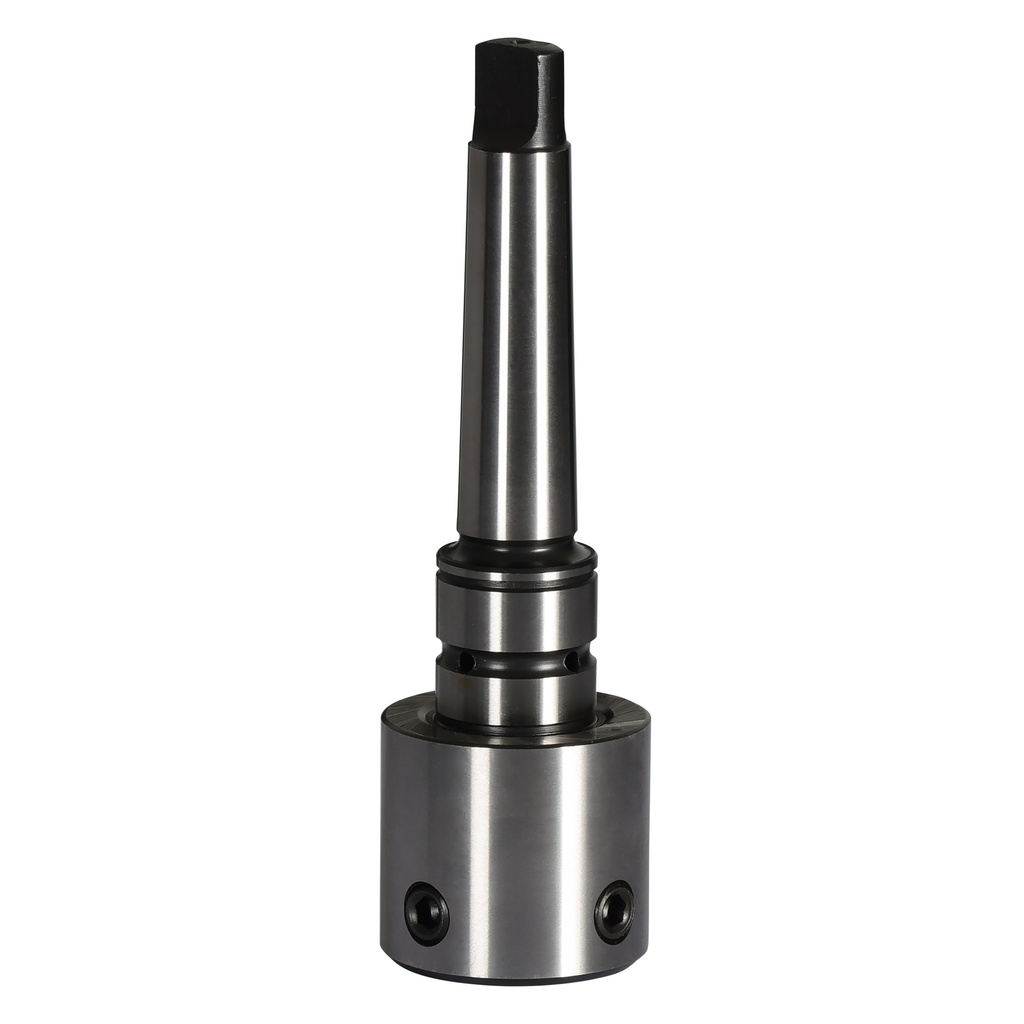

This adapter connects a Morse Taper MT3 connection to a 31.75 mm (1¼″) Weldon mount. Suitable for Fluxon MB100 core drilling machines, allowing core drills with large Weldon mounts to be used easily.
Technical specifications
- Connection 1 = type: Morse taper (MT3) / model: external
- Connection 2 = type: Weldon / size: 31.75 mm (1¼″) / model: internal
- Inner diameter min. = 61 mm
- Outer diameter = 100 mm
- Measuring system = metric (mm)
- Include = Cooling ring
Dimensions and weights
- Weight =0.96Kg
- Product weight =0.94Kg
- Length =190.0mm
- Width =105.0mm
- Height =60.0mm
- Product Length =185.0mm
- Product Width =55.0mm
- Product Height =55.0mm
