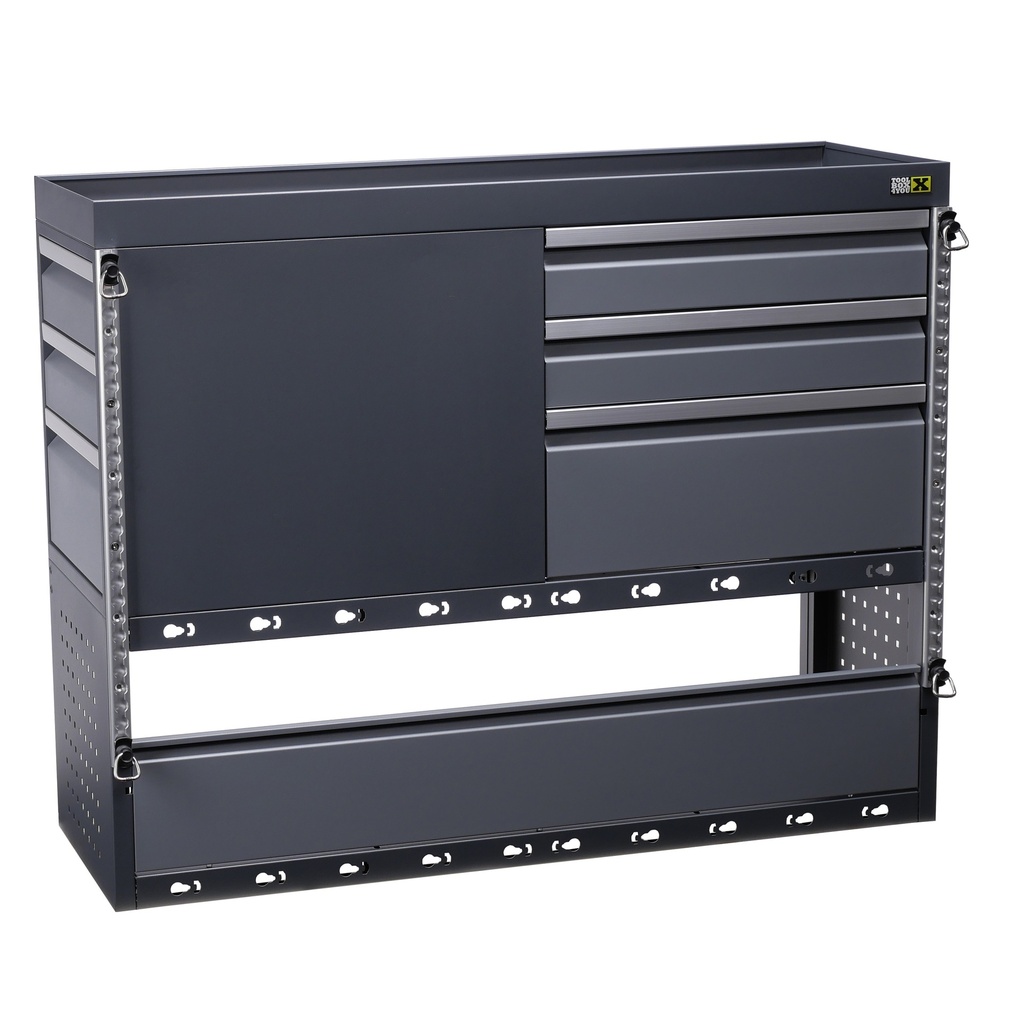

[DVC06S] Universal built-in cabinet for van 6 drawers

€ 0.00 € 600.00

  • Colour
  • Thickness
  • Drawers number
  • Drawers size
  • Drawers size
  • Drawers size
  • Drawers size
  • Top open compartment dimensions
  • Lower compartment dimensions
  • Material
  • Load capacity per drawer
  • Cabinet capacity
  • 1.5 mm steel powder coated cabinet
  • Drawers incl locks
  • Double bearing drawers
  • Incl 3 side drawers
  • Incl Rail with 4pcs bajonethooks

Shop equipment / Shop equipment / Built-in cabinets

Product Code: DVC06S

EAN: 8720028111206

PRODUCT DESCRIPTION

The Universal built-in cabinet for van 6 drawers  is a must-have for anyone looking for a sturdy and reliable storage solution. With its sturdy design, you can trust that your items will be kept safe and secure. The drawers also come with locks, ensuring that your belongings stay in place during transit. The double bearing drawers allow for smooth opening and closing, making it easy to access your items on the go.
The Built in Cabinet is powder coated in RAL7011 and RAL7016. Made from durable steel with a thickness of 1.5 mm, this cabinet is built to last.
The 2 front sides of the cabinet are equipped with 2 aluminium rails incl 4 adjustable bajonet hooks.
The Universal built-in cabinet for van 6 drawers  features 6 spacious drawers in various sizes to accommodate all your storage needs. Two front drawers measure 540 x 395 x 90 mm, one drawer measures 540 x 395 x 210 mm. On the side of the cabinet there are  two drawers measure 330 x 475 x 90 mm, and one drawer measures 330 x 475 x 170 mm. Additionally, it has a top open compartment measuring 1280 x 400 x 60 mm and a lower compartment measuring 1220 x 350 x 360 mm.
Each drawer has a weight capacity of 25 kg, providing ample room for your tools and equipment. With a cabinet capacity of 200 kg, you can trust that this cabinet will meet all your storage needs.
The cabinet comes fully assembled and fits practically all vans in L2, L3 and L4 lengths.

Technical specifications

  • Colour = RAL7011 / RAL7016
  • Thickness = 1.5 mm
  • Drawers number = 6
  • Drawers size = 2 pcs.: 540 x 395 x 90 mm , 1 pcs.: 540 x 395 x 210 mm , 2 pcs.: 330 x 475 x 90 mm , 1 pcs.: 330 x 475 x 170 mm
  • Top open compartment dimensions = 1280 x 400 x 60 mm
  • Lower compartment dimensions = 1220 x 350 x 360 mm
  • Material = Steel
  • Load capacity per drawer = 25 kg
  • Cabinet capacity = 200 kg

Dimensions and weights

  • Weight =73.0Kg
  • Product weight =65.0Kg
  • Length =450.0mm
  • Width =1300.0mm
  • Height =1120.0mm
  • Product Length =430.0mm
  • Product Width =1280.0mm
  • Product Height =1050.0mm
