Electric operation
6 meter chain
One-handed operation + emergency stop
Collection bag for chain
Simple attachment
Product Code: ECB0300
EAN: 8720028091492
PRODUCT DESCRIPTION

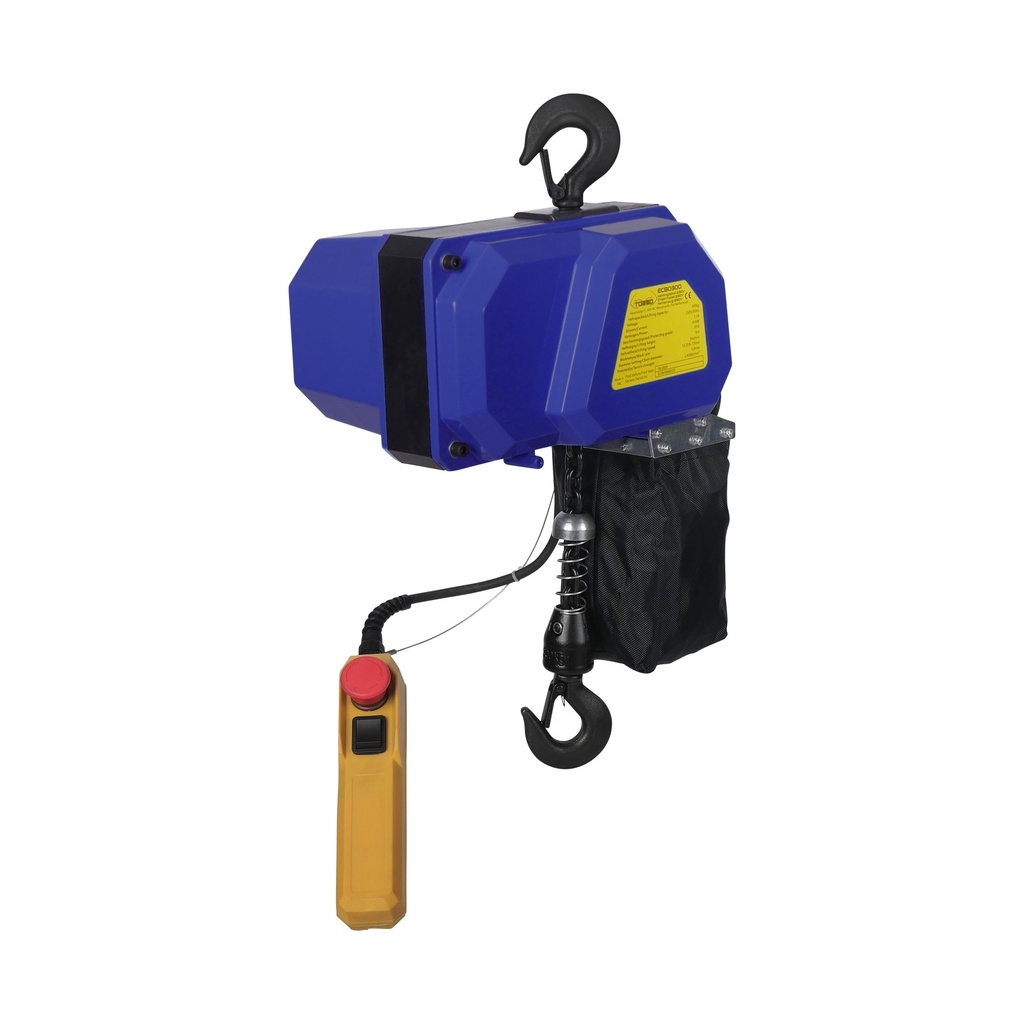

Electric chain hoist
This Torso electric chain hoist is ideal for all kinds of lifting work in workshops, garages and warehouses. With the sturdy hook, the hoist is easy to attach to beam clamps and plain trolleys.
The electrical operation ensures that heavy, manual hoisting is no longer necessary.
Technical specifications:
capacity = 300kg
lifting height = 5,5m
lifting speed = 3m/min
diameter chain = 5mm
control cable length = 1,5m
voltage = 230V / 50Hz
current = 1,7A
power = 410W
tensile strength = ≥900N / mm²
protection class = IP54
insulation class = B
Technical specifications
Dimensions and weights
- Weight =17.0Kg
- Product weight =16.1Kg
- Length =370.0mm
- Width =370.0mm
- Height =300.0mm
- Product Length =280.0mm
- Product Width =230.0mm
- Product Height =360.0mm
