Product Code: ECO2200
EAN: 4052462023024
PRODUCT DESCRIPTION

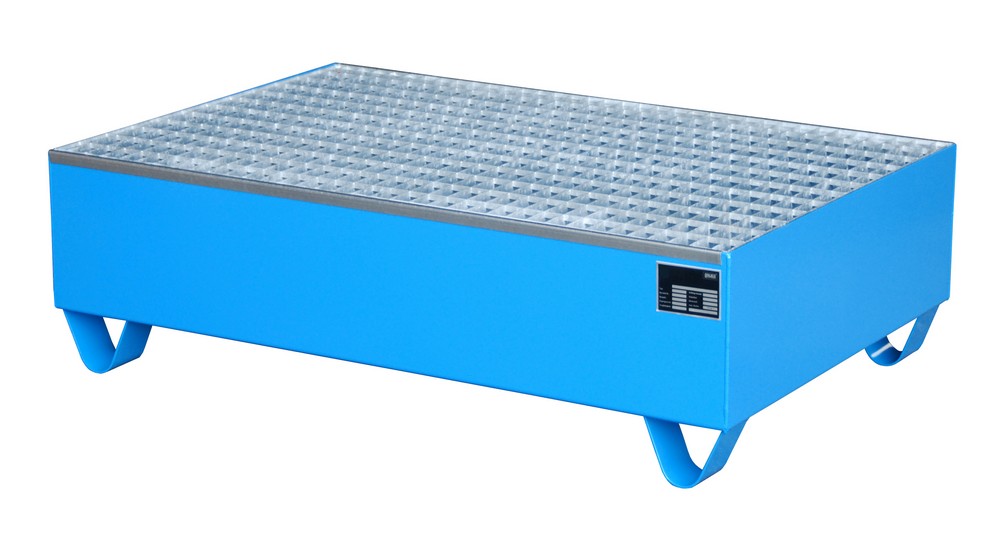

Drip tray / retention basin
This ECO type retention tray is suitable for the storage of max. 2 drums with 200 liters, but is also combinable with 60 liter drums and small tins.
- type = ECO 2/200, without raised platform
- construction made of 2mm steel sheeting
- 100mm ground leeway
- galvanized grid
- load capacity = 1000kg/m³
- retention capacity = 245L
- finish = RAL 5012
The following applies to all ECO drip trays:
- certified manufacturer EN ISO 9001
- manufacturing processes under TÜV surveillance
- every unit is tested for leakage
- flammable liquids of the GHS-categories 1-3
- water pollution liquids of the GHS-categories 1-4
Technical specifications
Dimensions and weights
- Weight =57.0Kg
- Product weight =57.0Kg
- Length =1200.0mm
- Width =800.0mm
- Height =360.0mm
- Product Length =1200.0mm
- Product Width =800.0mm
- Product Height =360.0mm
