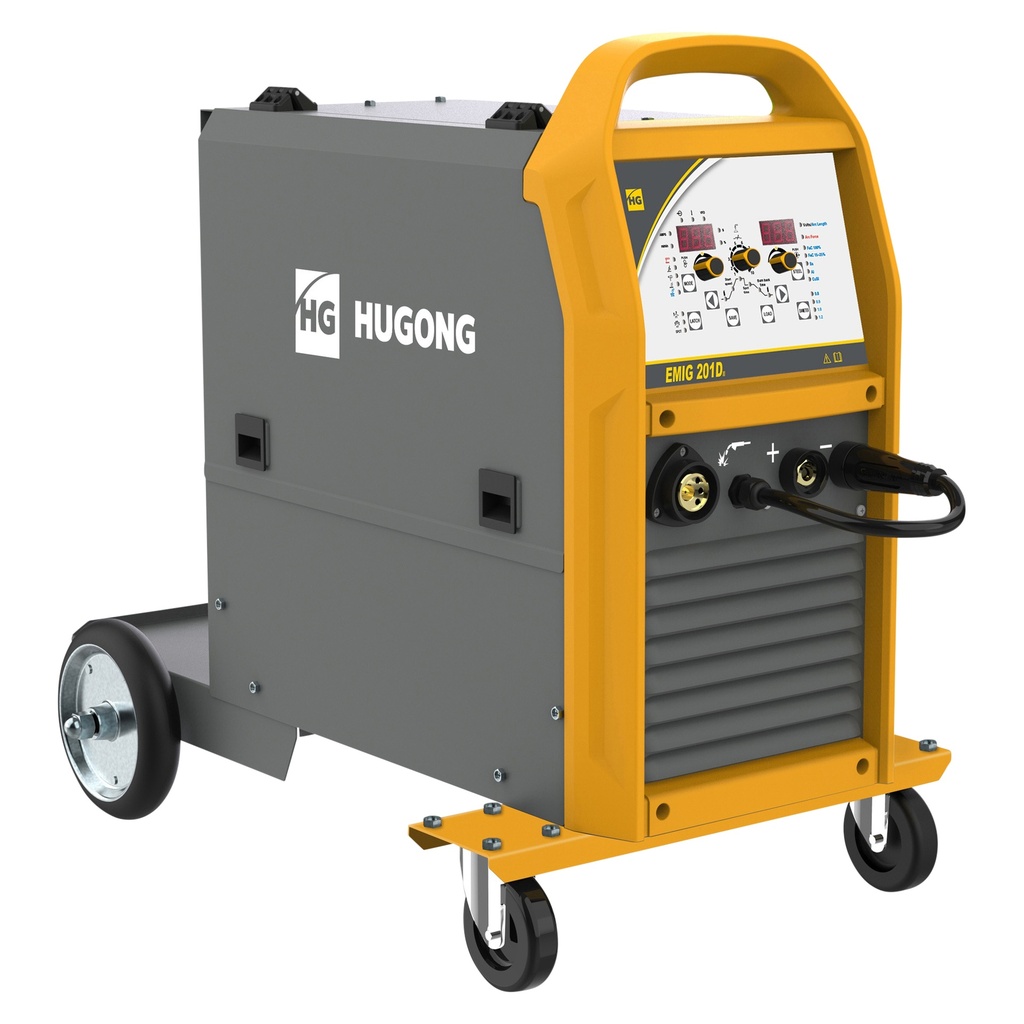

MIG welding machine LCD 200A
Product Code: EMIG201DIII
EAN: 8720028142781
PRODUCT DESCRIPTION
The Hugong EMIG201D is a robust MIG welding station on wheels, built for continuous use in professional workshop environments. This inverter-based machine supports 15 kg wire spools and features an integrated cylinder rack, making it a complete and convenient unit for fixed-location welding setups.
The EMIG201D includes a digital display, stepless adjustment for voltage and wire feed speed, and a 2T/4T mode. Its solid wheeled base and all-in-one design make it ideal for fabrication, metalworking, and production tasks where reliability and practicality are key.
- MIG welding installation with integrated trolley
Sturdy, mobile solution with machine and gas cylinder combined on one wheeled unit.
- Supports 15 kg wire spools
Longer welding tasks without interruption, ideal for professional and industrial use.
- Stepless adjustment
Precise voltage and wire feed control for a consistent arc.
- 4-roll wire feeder
Ensures steady wire feed even with long welds or aluminium.
- Shock-resistant ABS housing & 5-year warranty
Rugged casing for protection against impact, dust, and light moisture. Warranty extends with online registration.
Supplied with:
- MIG torch MLT24M4 – 4 meters
- Ground clamp with 3-meter cable (25 mm²)
- 3-meter Ø 8mm gas hose with NW5 connector
- Contact tips: 0.8mm, 1.0 mm, 1.2 mm
- Solid wire rollers: 0.8/1.0V, 1.0/1.2V
Technical specifications
- Frequency = 50/60 Hz
- Voltage = 230V - 1 Phase
- No load voltage = 74V
- Rated input current = 39A
- Weldable welding wire = MIG wire 0.6 - 1.0 mm / Flux core wire 0.8 - 0.9 mm
- Welding current range = MIG 30-200A / MMA 30-200A
- Duty cycle @40C = 60% - 200A
- Isolation class = IP21S
Dimensions and weights
- Weight =75.0Kg
- Product weight =54.0Kg
- Length =958.0mm
- Width =570.0mm
- Height =820.0mm
- Product Length =960.0mm
- Product Width =460.0mm
- Product Height =870.0mm
