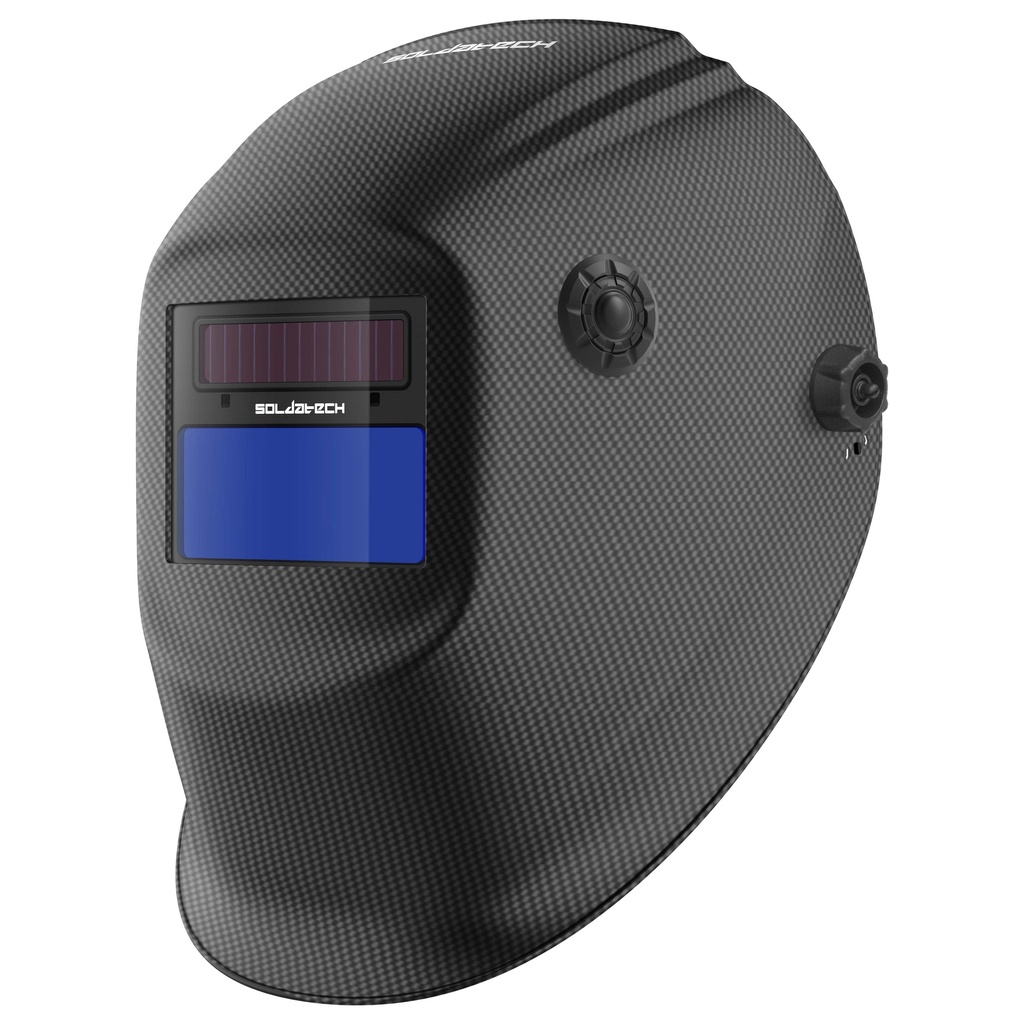

Auto darkening welding helmet SmartClear Carbon

[EWH3C] Auto darkening welding helmet SmartClear Carbon

€ 0.00 € 55.00

  • Optical class
  • Viewing area
  • Cartridge size
  • Arc sensor
  • Light state (DIN)
  • Dark state
  • Shade control
  • Shade control
  • Power on/off
  • Sensitivity setting
  • Permanent UV/IR protection
  • Power supply
  • Switching time (light to dark)
  • Delay time (dark to light)
  • Low amperage TIG rated
  • Grinding
  • Operating temperature
  • Storage temperature
  • Helmet material
  • Print
  • Battery capacity test
  • Low battery indicator
  • MMA welding applications
  • TIG welding applications
  • MIG welding application
  • Cutting welding application
  • Other welding application
  • Packaging
Add to cart
Add to wishlist
Contact Us
  • Lightweight
  • Excellent low amperage TIG response
  • Clear lens technology for ultimate sight and brightness
  • High impact nylon material
  • Carbon design

HELMET

Product Code: EWH3C

EAN: 8720028139095

PRODUCT DESCRIPTION

The SmartCLear EWH3C welding helmet provides reliable protection and clear visibility for various welding tasks, including TIG welding.
The 98x44mm viewing area ensures a wide and sharp field of vision, while the DIN 3 light state improves brightness before welding.

The helmet is powered by a solar cell with a backup battery, ensuring consistent auto-darkening.
An external push button allows easy welding and Grind mode selection, even with gloves.

Designed for comfort, the four-strap headgear distributes weight evenly for a secure fit.

The flexible nylon shell is both lightweight and impact-resistant, featuring a sleek carbon graphic design that makes you look as sharp as your welding skills.


Key features:

  • Lightweight: reduces strain during long use.
  • Suitable for TIG welding: minimum 5A TIG sensitivity.
  • Clear lens technology: sharp vision and brightness.
  • Flexible nylon shell: durable, flexible, and impact-resistant.
  • External push button: easy mode selection with gloves.
  • Sleek carbon graphic design: makes you look as sharp as your welding skills.
  • Certified safety standards – CE, ANSI Z87.1, Z94.3, AS/NZS 1338.1 compliant.

Technical specifications

  • Optical class = 1/1/1/2
  • Viewing area = 98 x 44 mm
  • Cartridge size = 110 x 90 x 9mm
  • Arc sensor = 2
  • Light state (DIN) = DIN 3
  • Dark state = DIN 7 ~ 13
  • Shade control = internal , variable shade
  • Power on/off = automatic on/off
  • Sensitivity setting = low-high by infinitely dial knob
  • Permanent UV/IR protection = DIN 16
  • Power supply = solar cell, 1x CR2450 lithium battery replaceable
  • Switching time (light to dark) = 1/16000 sec.
  • Delay time (dark to light) = 0.1 - 1.0 sec. by infinitely dial knob
  • Low amperage TIG rated = ≥ 5 amps (DC); ≥ 5 amps (AC)
  • Grinding = Yes
  • Operating temperature = -10℃ ~ 55℃
  • Storage temperature = -20°C ~ +70°C
  • Helmet material = High impact resistance nylon
  • Print = Carbon
  • Battery capacity test = Yes
  • Low battery indicator = Yes
  • MMA welding applications = SMAW
  • TIG welding applications = GTAW-DC / GTAW-AC / GTAW-P DC / GTAW-P AC
  • MIG welding application = GMAW (MIG/MAG) / GMAW-P
  • Cutting welding application = PAC / CAC-A
  • Other welding application = PAW

Dimensions and weights

  • Weight =0.97Kg
  • Product weight =0.53Kg
  • Length =300.0mm
  • Width =260.0mm
  • Height =260.0mm
  • Product Length =330.0mm
  • Product Width =240.0mm
  • Product Height =220.0mm
