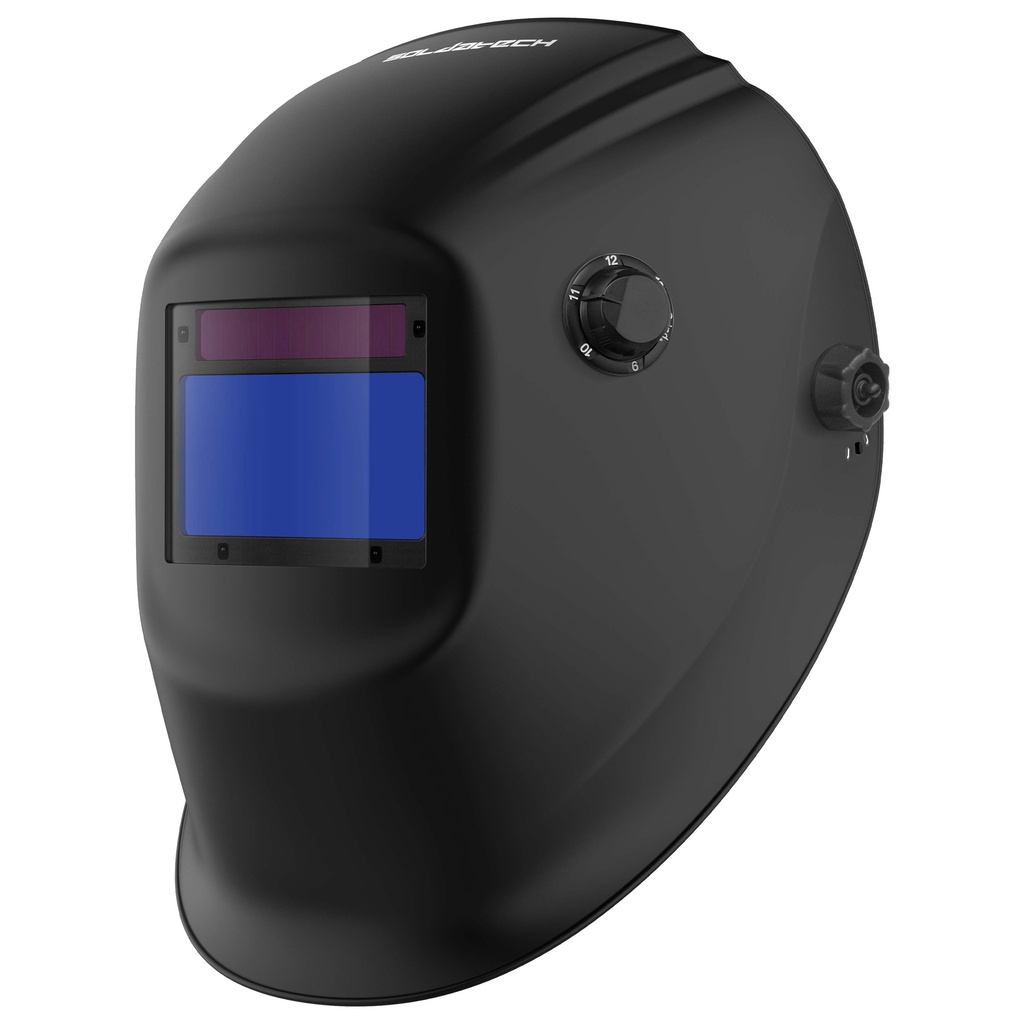

Auto darkening welding helmet TopClear

[EWH4] Auto darkening welding helmet TopClear

€ 0.00 € 65.00

  • Optical class
  • Viewing area
  • Cartridge size
  • Arc sensor
  • Light state (DIN)
  • Dark state
  • Shade control
  • Shade control
  • Power on/off
  • Sensitivity setting
  • Permanent UV/IR protection
  • Power supply
  • Low battery indicator
  • Switching time (light to dark)
  • Delay time (dark to light)
  • Low amperage TIG rated
  • Grinding
  • Battery capacity test
  • Operating temperature
  • Storage temperature
  • Helmet material
  • MMA welding applications
  • TIG welding applications
  • MIG welding application
  • Cutting welding application
  • Other welding application
  • Packaging
Add to cart
Add to wishlist
Contact Us
  • 4 independent arc sensors
  • Excellent low amperage TIG response
  • Clear lens technology for ultimate visibility and brightness
  • High impact nylon material
  • Big viewing area 96x53mm

HELMET

Product Code: EWH4

EAN: 8720028139101

PRODUCT DESCRIPTION

The EWH4 TopClear welding helmet provides reliable protection and clear visibility for various welding applications and is ideal for TIG welding. The 96 x 53mm viewing area ensures a sharp and wide field of vision, while the DIN 3.5 light state offers clear visibility before welding.

Equipped with four independent arc sensors, the helmet provides fast auto-darkening activation, even at low amperages. With a minimum sensitivity of 5A and a switching speed of 1/25,000 sec, it responds instantly to the arc for optimal eye protection. A solar cell with a backup battery ensures reliable performance, while an external adjustment dial allows easy shade control.

The four-strap headgear ensures a secure and comfortable fit. The high-impact nylon shell is lightweight and Flexible, offering long-lasting protection.


Key features:

  • 4 independent arc sensors deliver fast and reliable auto-darkening activation.
  • TIG detection from 5A (AC/DC) – excellent response for low-amperage welding.
  • Clear lens technology – ultimate sight and brightness.
  • High-impact nylon material – strong flexible and durable.
  • Large viewing area (96 x 53mm) – wide field of vision.
  • Fast switching speed (1/25,000 sec) – instant reaction for optimal eye protection.
  • Certified safety standards – CE, ANSI Z87.1, Z94.3, AS/NZS 1338.1 compliant.


Technical specifications

  • Optical class = 1/1/1/2
  • Viewing area = 96 x 53 mm
  • Cartridge size = 110 x 90 x 9mm
  • Arc sensor = 4
  • Light state (DIN) = DIN 3.5
  • Dark state = DIN 9 ~ 13
  • Shade control = external , variable shade
  • Power on/off = automatic on/off
  • Sensitivity setting = low-high by infinitely dial knob
  • Permanent UV/IR protection = DIN 16
  • Power supply = solar cell, 1x CR2450 lithium battery replaceable
  • Low battery indicator = Yes
  • Switching time (light to dark) = 1/25000 sec.
  • Delay time (dark to light) = 0.1 - 1.0 sec. by infinitely dial knob
  • Low amperage TIG rated = ≥ 5 amps (DC); ≥ 5 amps (AC)
  • Grinding = Yes
  • Battery capacity test = Yes
  • Operating temperature = -10℃ ~ 55℃
  • Storage temperature = -20°C ~ +70°C
  • Helmet material = High impact resistance nylon
  • MMA welding applications = SMAW
  • TIG welding applications = GTAW-DC / GTAW-AC / GTAW-P DC / GTAW-P AC
  • MIG welding application = GMAW (MIG/MAG) / GMAW-P
  • Cutting welding application = PAC / CAC-A
  • Other welding application = PAW

Dimensions and weights

  • Weight =0.98Kg
  • Product weight =0.54Kg
  • Length =300.0mm
  • Width =260.0mm
  • Height =250.0mm
  • Product Length =350.0mm
  • Product Width =250.0mm
  • Product Height =220.0mm
