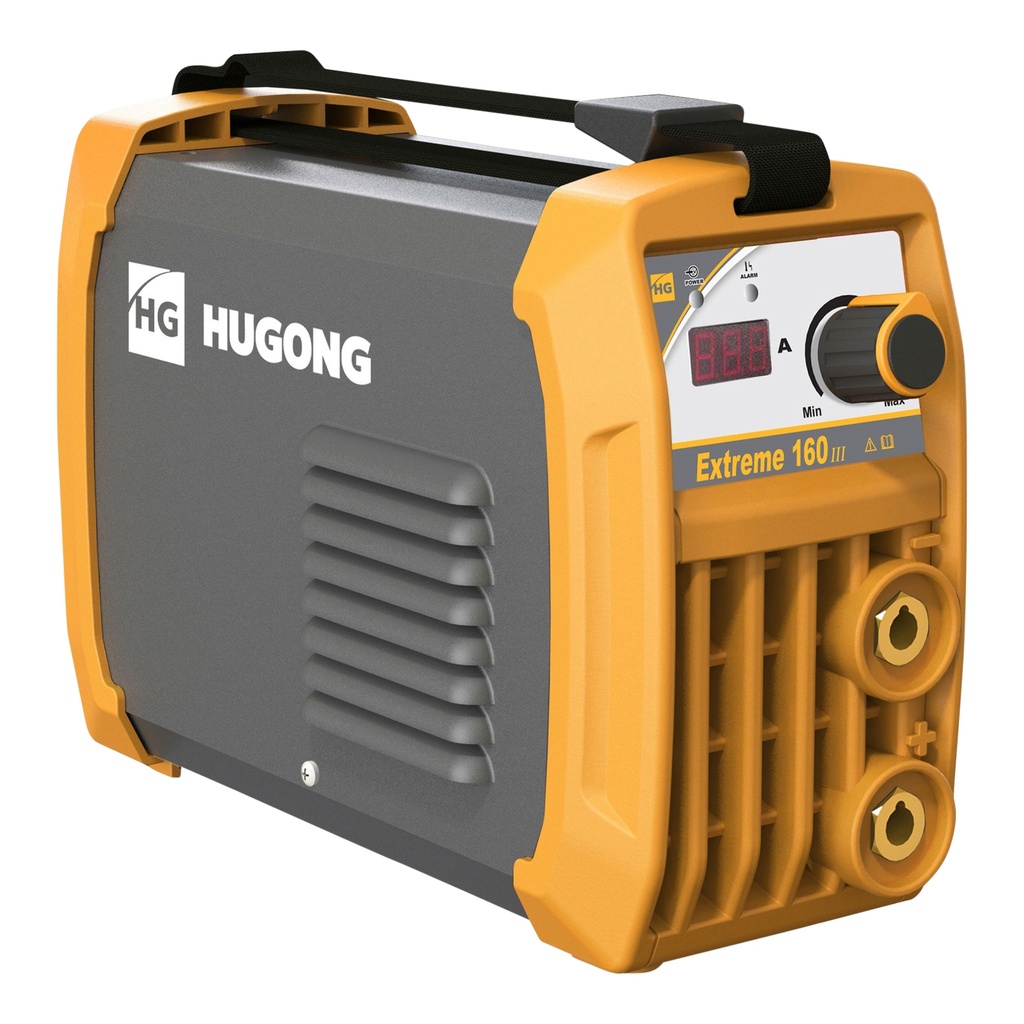

Electrode welding machine 160A

Welding and cutting equipment / Electrode welding machines

Product Code: EXTREME160III

EAN: 8720028142729

https://www.hugongwelds.eu/web/image/product.template/83554/image_1920?unique=922f03b

€ 0.00 0.0 EUR € 0.00

  • Voltage
  • Rated input current
  • Frequency
  • Input power
  • Circuit breaker
  • No load voltage
  • Duty cycle @20C
  • Duty cycle @40C
  • Welding electrodes
  • Welding current range
  • Isolation class

This combination does not exist.

Contact Us
  • Twistlock electrode holder
  • Stepless adjustment
  • Incl. sturdy carrying case
  • ABS shock-resistant housing
  • 5-year warranty upon registration

PRODUCT DESCRIPTION

The Hugong Extreme160 is a powerful and user-friendly electrode welding machine. Its compact size, durable carrying case, and high-quality twistlock electrode holder make it ideal for demanding users who need to weld on-site or in the workshop.

The unit features advanced IGBT inverter technology, providing a stable arc, high efficiency, and low power consumption. The hot-start and anti-stick functions simplify arc ignition and help prevent the electrode from sticking to the workpiece. A powerful fan and integrated thermal protection safeguard the machine from overheating.

The Extreme160 is suitable for welding carbon steel, low-alloy steel, and stainless steel. It works flawlessly with both rutile (E6013) and basic (E7018) electrodes in the 1.6 to 3.2 mm range.

  • Twistlock electrode holder

Comes standard with a robust twistlock electrode holder and thick 16 mm² cable for optimal current flow and reliable welding.

  • Stepless adjustment

The welding current can be adjusted smoothly and precisely via a rotary knob. This ensures accurate matching to material, electrode, and desired weld depth.

  • Incl. sturdy carrying case

The supplied plastic carrying case offers solid protection and makes it easy to transport the machine to any job site.

  • ABS shock-resistant housing

The ABS housing provides protection against impacts, dust, and light moisture.

  • 5-year warranty upon registration

Long-term security thanks to extended factory warranty after online registration.

Supplied with:

  • Twistlock electrode holder with 3-meter cable (16 mm²)
  • Ground clamp with 2-meter cable (16 mm²)
  • Neoprene power cable (2 meters, 3×2.5 mm²)
  • Durable carrying case
  • Shoulder strap

Technical specifications

  • Voltage = 230V - 1 Phase
  • Rated input current = 13.4A
  • Frequency = 50/60 Hz
  • Input power = 6.9kVA
  • Circuit breaker = 16A B-char
  • No load voltage = 68V
  • Duty cycle @20C = 40% - 160A
  • Duty cycle @40C = 20% - 160A
  • Welding electrodes = 1.6 - 3.2mm
  • Welding current range = 20 - 160A
  • Isolation class = IP21S

Dimensions and weights

  • Weight =6.0Kg
  • Product weight =3.0Kg
  • Length =363.0mm
  • Width =185.0mm
  • Height =230.0mm
  • Product Length =315.0mm
  • Product Width =102.0mm
  • Product Height =176.0mm
