- Foot pedal for quick-lift system
- Controlled lowering speed
- Adjustable operating arm
- High load capacity (10 tons)
Product Code: FJ10H
EAN: 8720028063888
PRODUCT DESCRIPTION

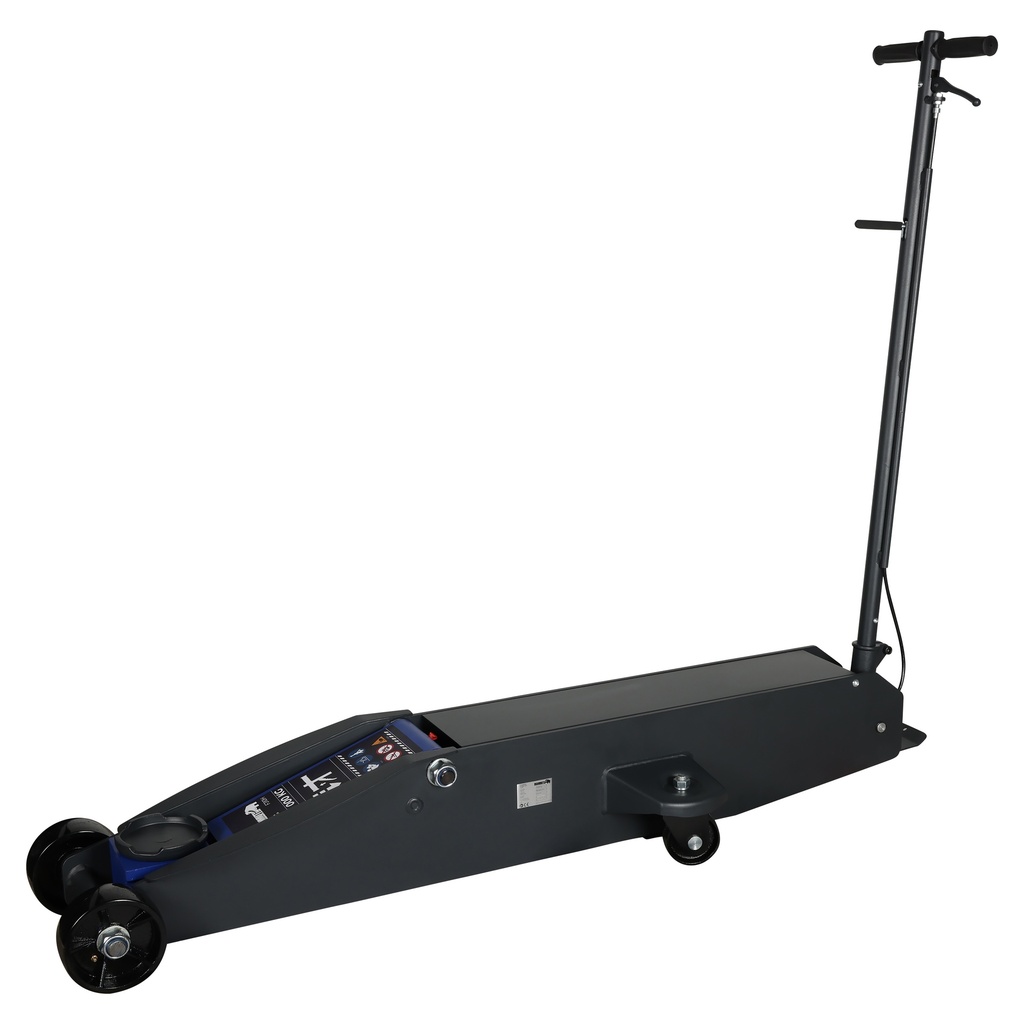

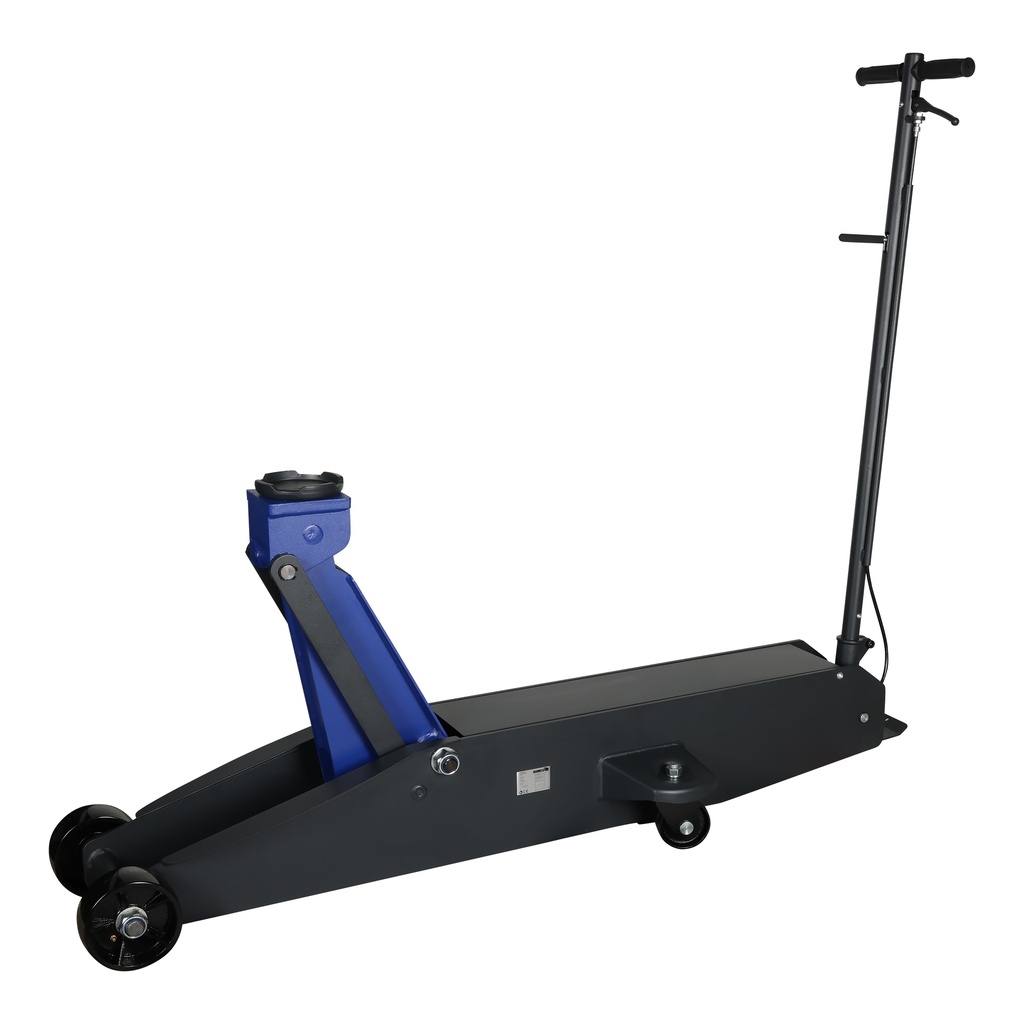

The Mammuth 10-ton industrial workshop jack is ideal for heavy lifting tasks on larger vehicles such as agricultural machinery, trucks, and commercial vehicles. Its robust construction and FTL system ensure fast, powerful, and safe lifting during professional use in workshops or on-site.
Equipped with the Fast to Load (FTL) system, the jack’s saddle reaches maximum height in just three full strokes without load. This saves valuable time when positioning and improves work efficiency, especially in busy service environments.
Controlled lowering ensures that vehicles are safely and evenly lowered, even under load. The adjustable handle provides comfortable and ergonomic operation regardless of the vehicle type.
Key features:
-
FTL system (Fast to Load)
Maximum lifting height in only 3 full strokes without load.
-
Controlled lowering speed
Ensures safe and smooth descent of the vehicle.
-
Adjustable handle
For flexible and ergonomic operation.
-
10-ton lifting capacity
Suitable for lifting heavy vehicles like trucks and agricultural machinery.
Technical specifications
- Lifting capacity = 10000 kg
- Lifting height min. = 160 mm
- Lifting height max. = 650 mm
- Platform dimensions = ø150 mm
- Pump rod length = 1153 mm
- Front wheel diameter = ø141 mm
- Rear wheel diameter = ø91 mm
- Oil capacity = 1.050 L
- Oil type = OKCH68
- Handle length = 1083 mm
- Stroke = 490 mm
Dimensions and weights
- Weight =149.0Kg
- Product weight =133.0Kg
- Length =1670.0mm
- Width =520.0mm
- Height =330.0mm
- Product Length =1637.0mm
- Product Width =494.0mm
- Product Height =249.0mm
