PRODUCT DESCRIPTION
This Mammuth truck jack lifts heavy vehicles quickly and effortlessly. The pneumatic operation enables fast and strain-free use, making it ideal for workshops that service commercial vehicles, trucks, or agricultural machinery.
- Lifting height 771 mm: Suitable for vehicles with high ground clearance.

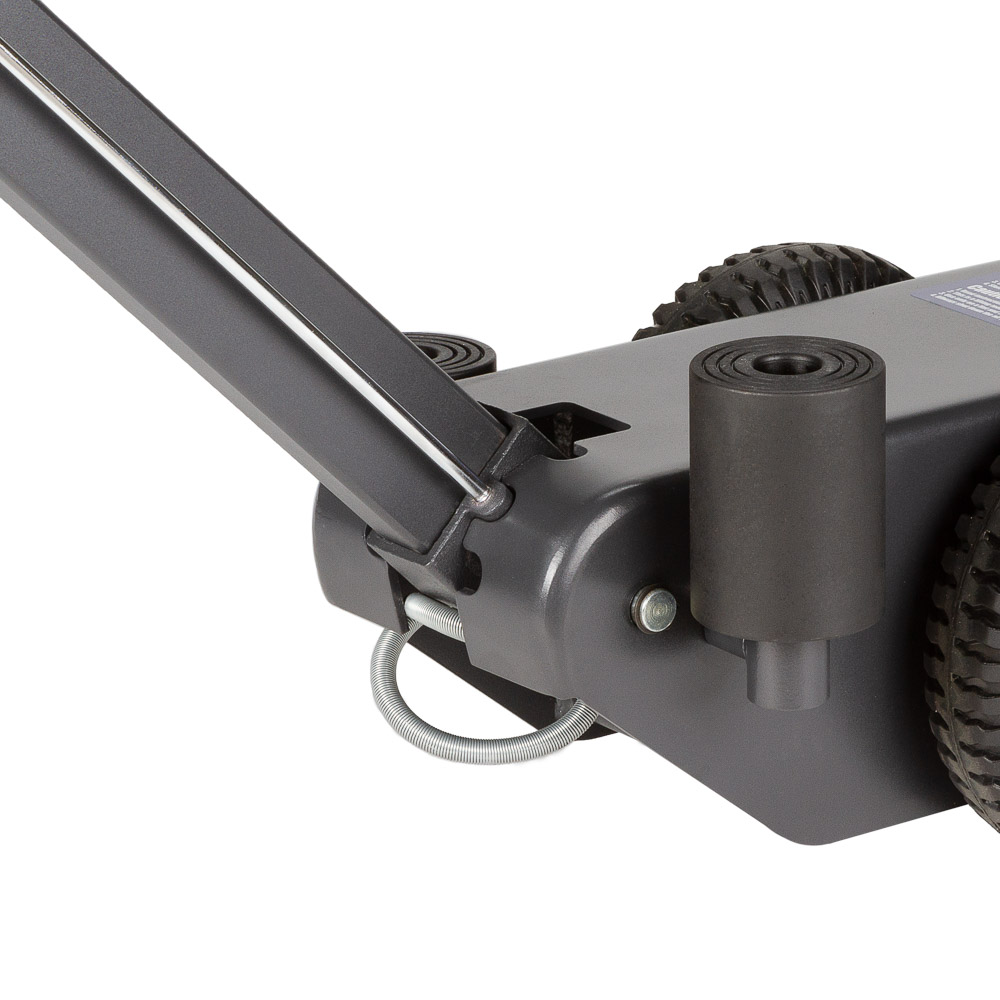

- 3-position handle: Adjust the handle to three different positions.
- Controlled lowering speed: Ensures a safe and controlled descent.
- Dead man’s control: Automatically shuts off when the control is released.
-

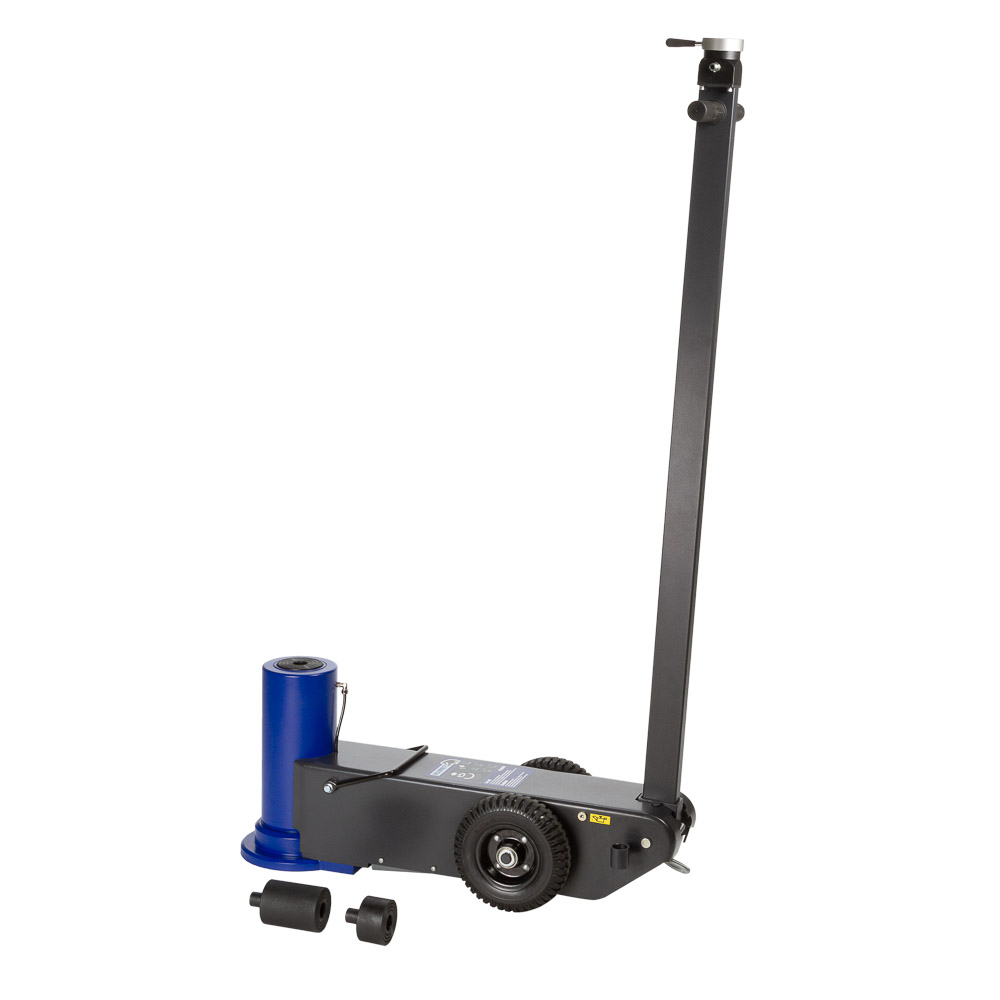

Includes 2 height adapters: Delivered with two adapters of 45 mm and 100 mm.

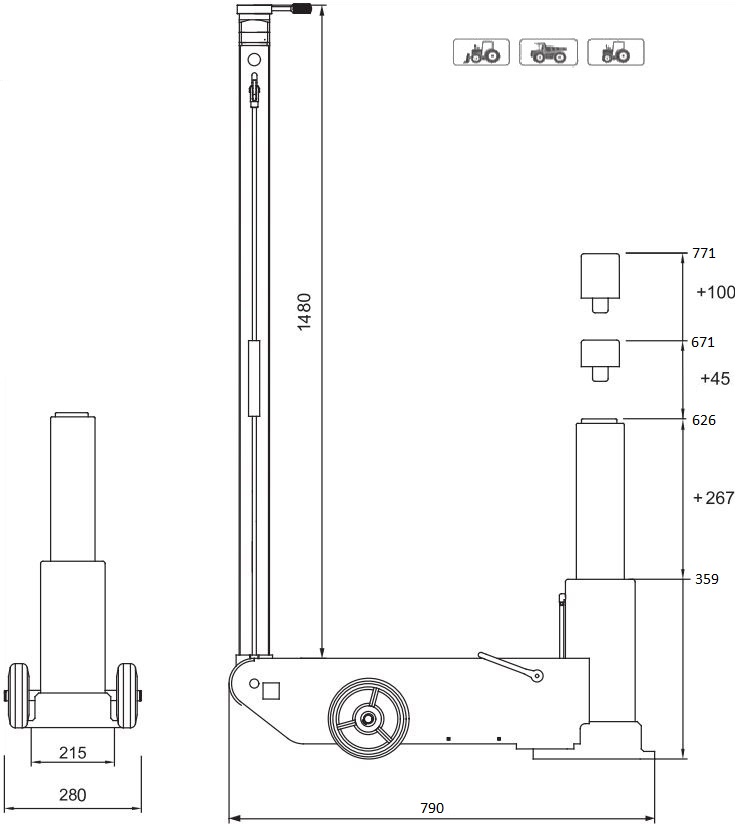

Technical specifications
- Material = Steel
- Lifting capacity = 30 ton
- Lifting height min. = 360 mm
- Lifting height max. = 771 mm
- Platform dimensions = ø84 mm
- Handle length = 1370 mm
- Wheel material = Rubber/steel
- Wheel diameter = ø208 mm
- Working air pressure = 9 - 12 bar
- Air consumption = 300 L/min
- Air connection = 1/4" BSP
- Oil capacity = 3.4 L
- Oil type = OHCH15V
Dimensions and weights
- Weight =112.0Kg
- Product weight =110.0Kg
- Length =370.0mm
- Width =1390.0mm
- Height =610.0mm
- Product Length =840.0mm
- Product Width =294.0mm
- Product Height =360.0mm
