PRODUCT DESCRIPTION

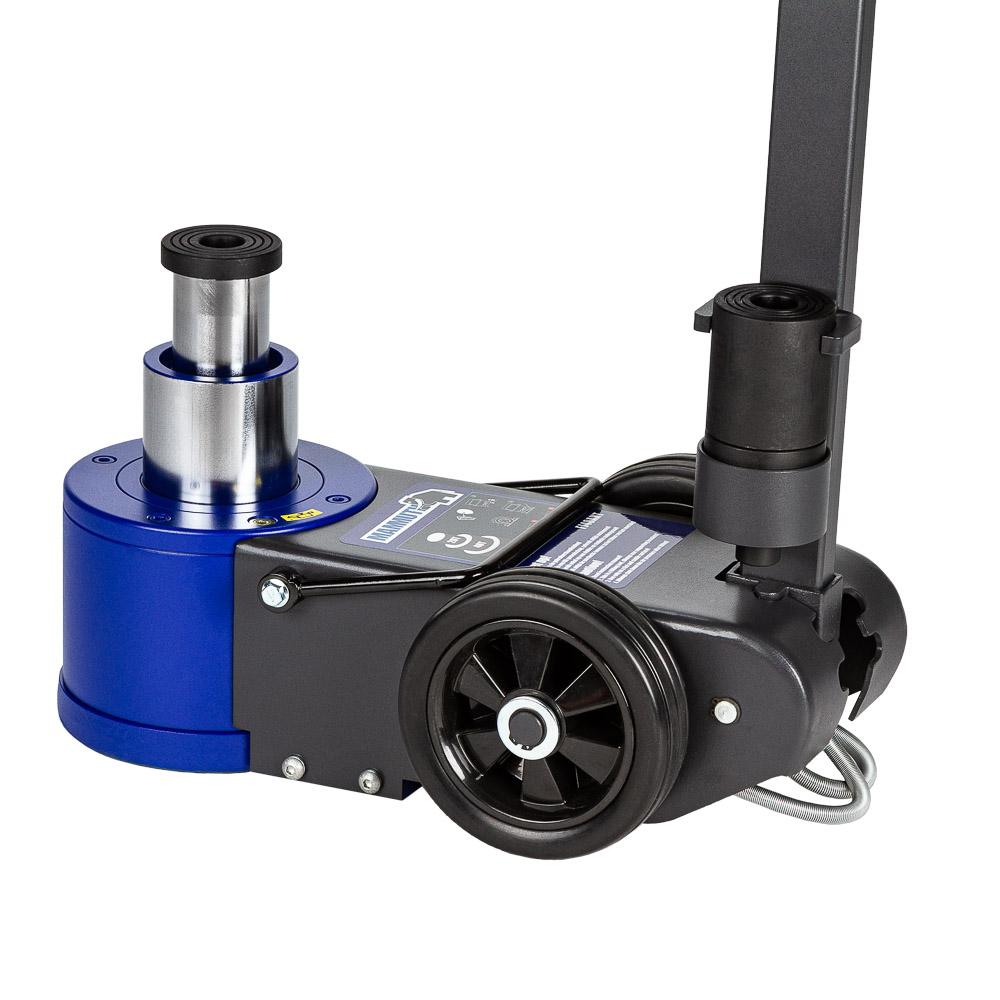

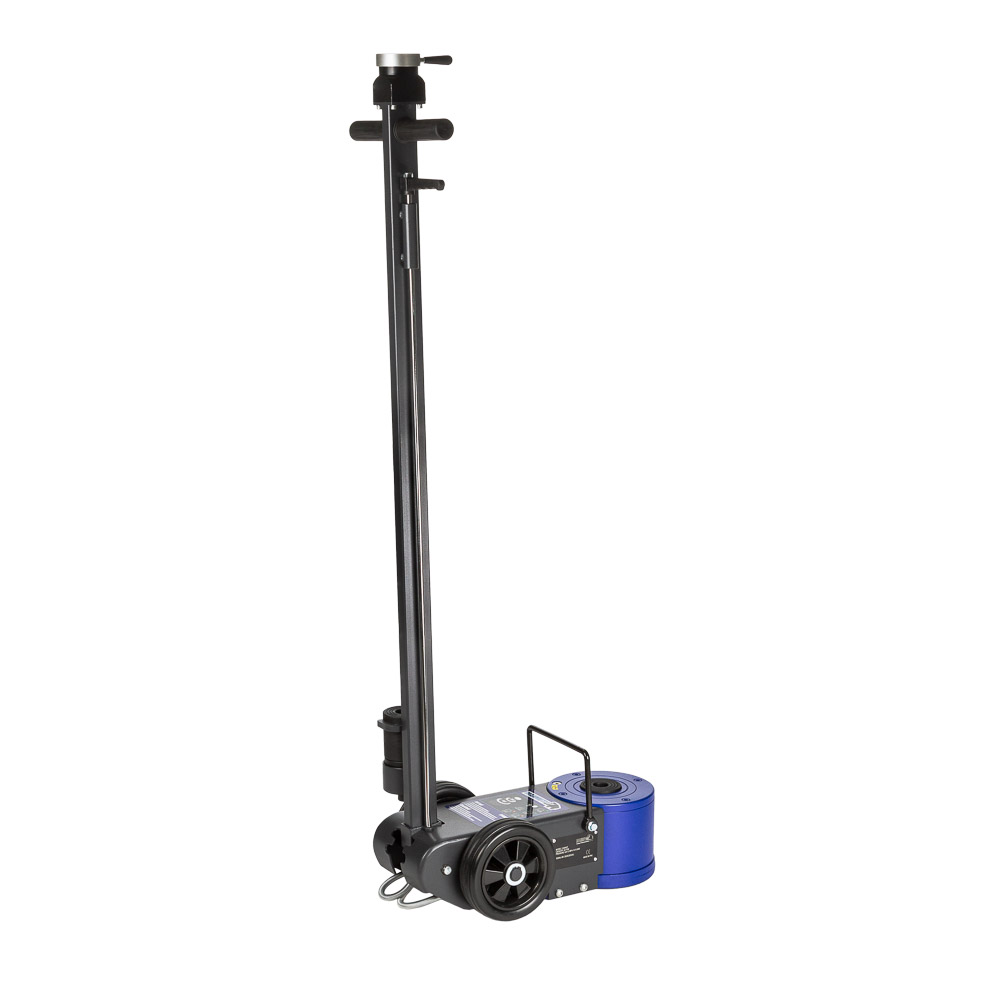

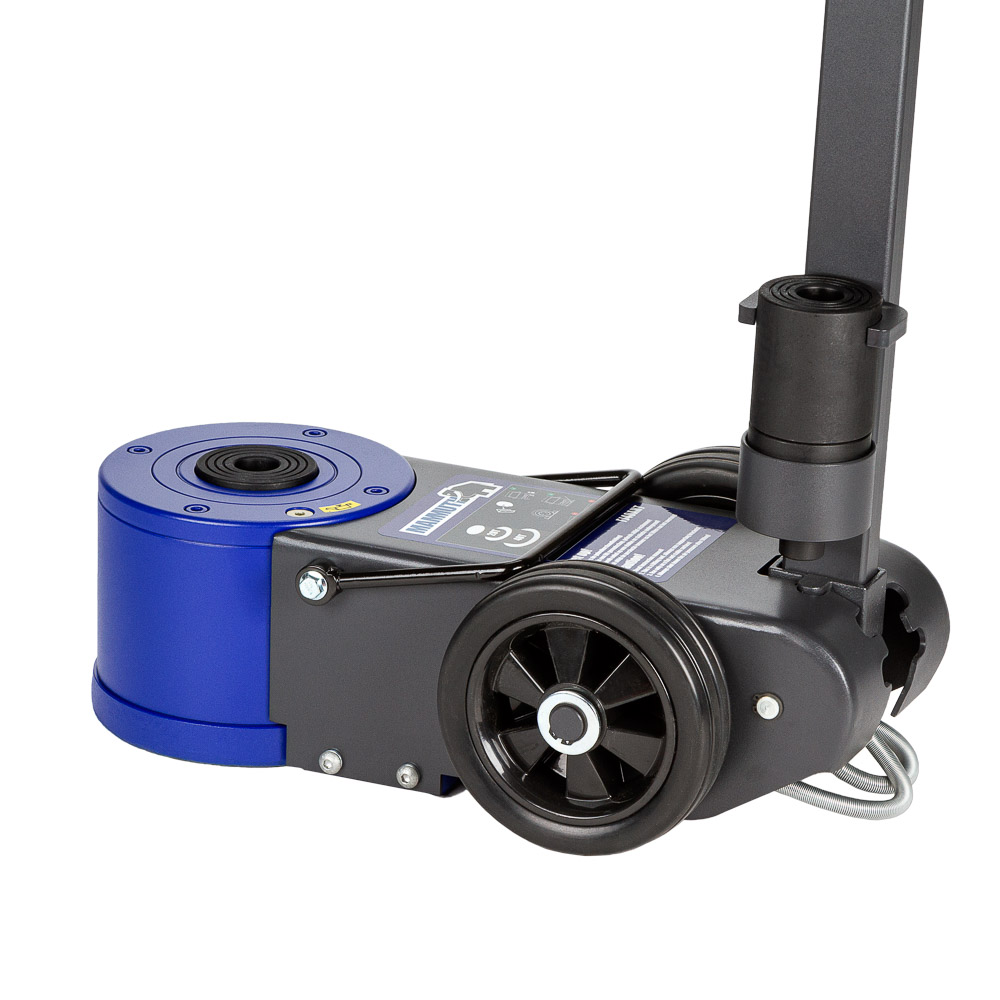

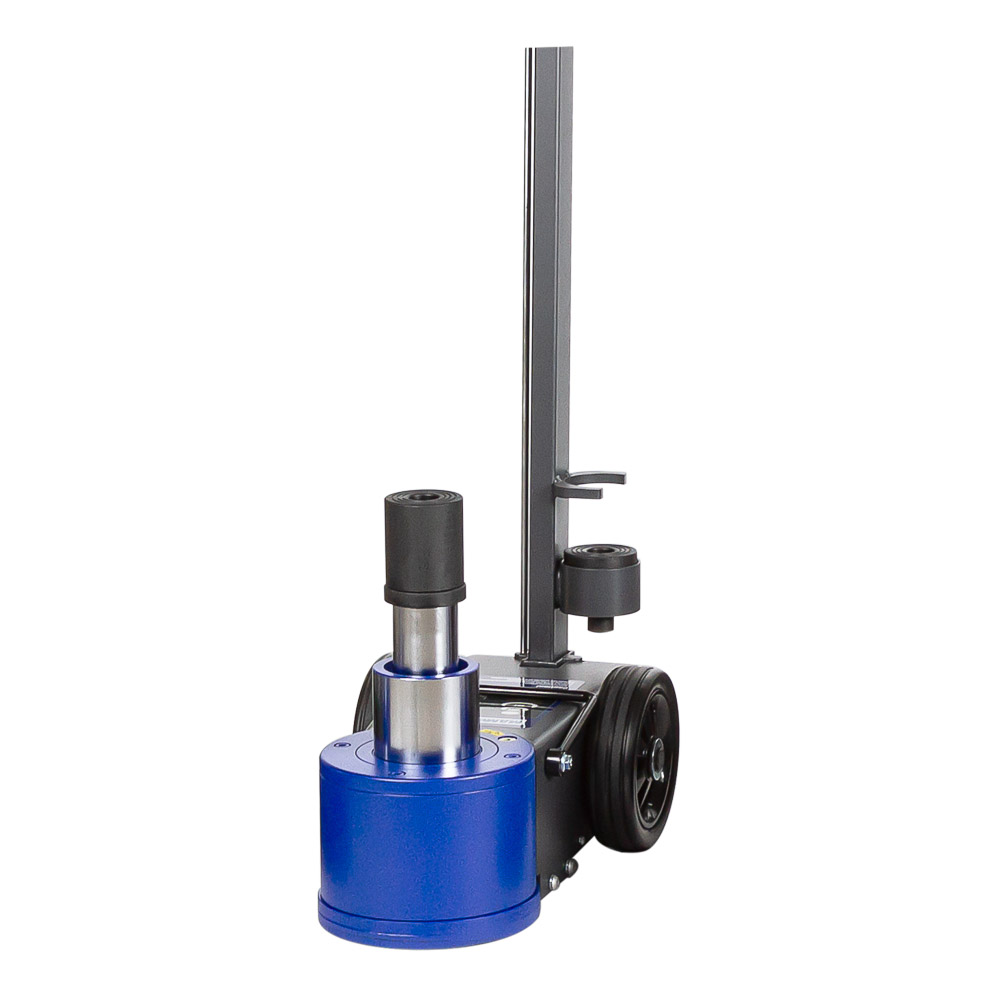

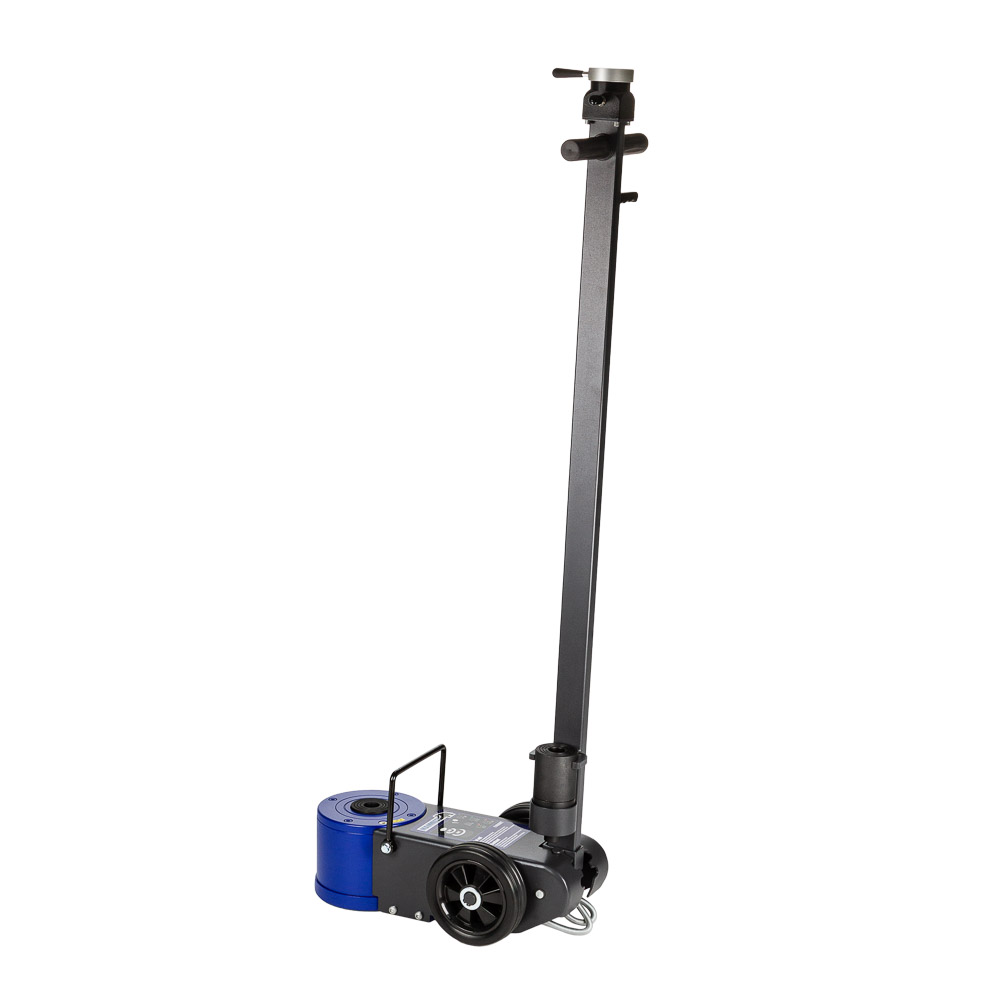

This Mammuth truck jack lifts heavy vehicles quickly and effortlessly. Suitable for workshops that work with commercial vehicles, trucks, or agricultural machinery.
- Pneumatic: For fast and strain-free operation.

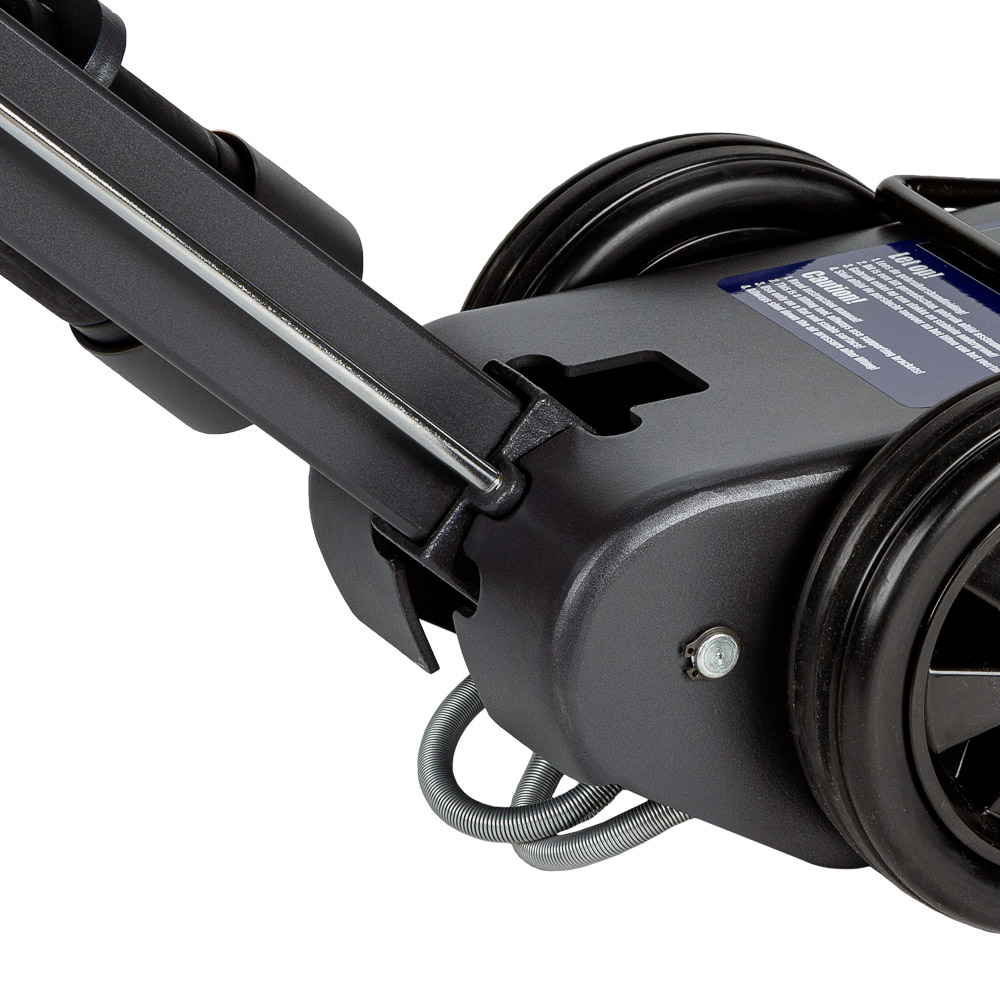

- 3-position handle: Set the handle in three different positions.
- Controlled lowering speed: Ensures a safe and controlled descent.

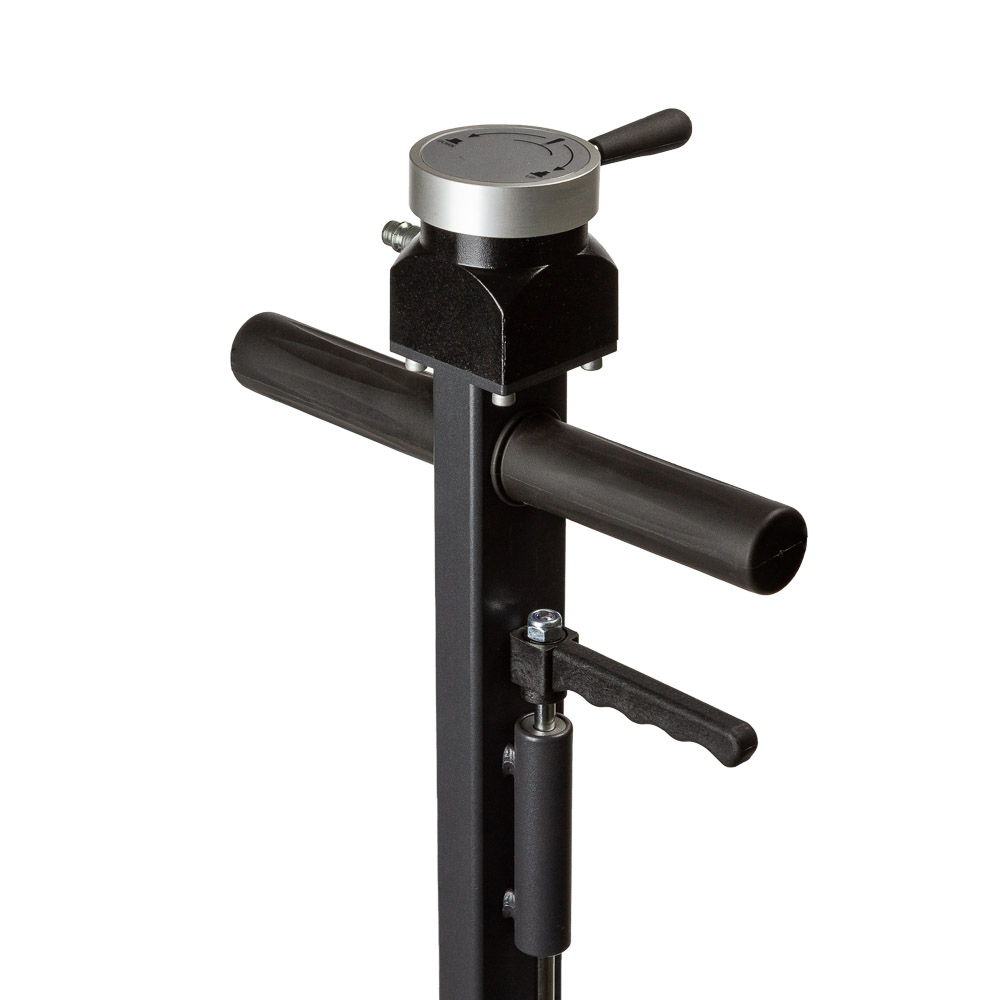

- Dead man’s control: Automatically shuts off when the control is released.
-

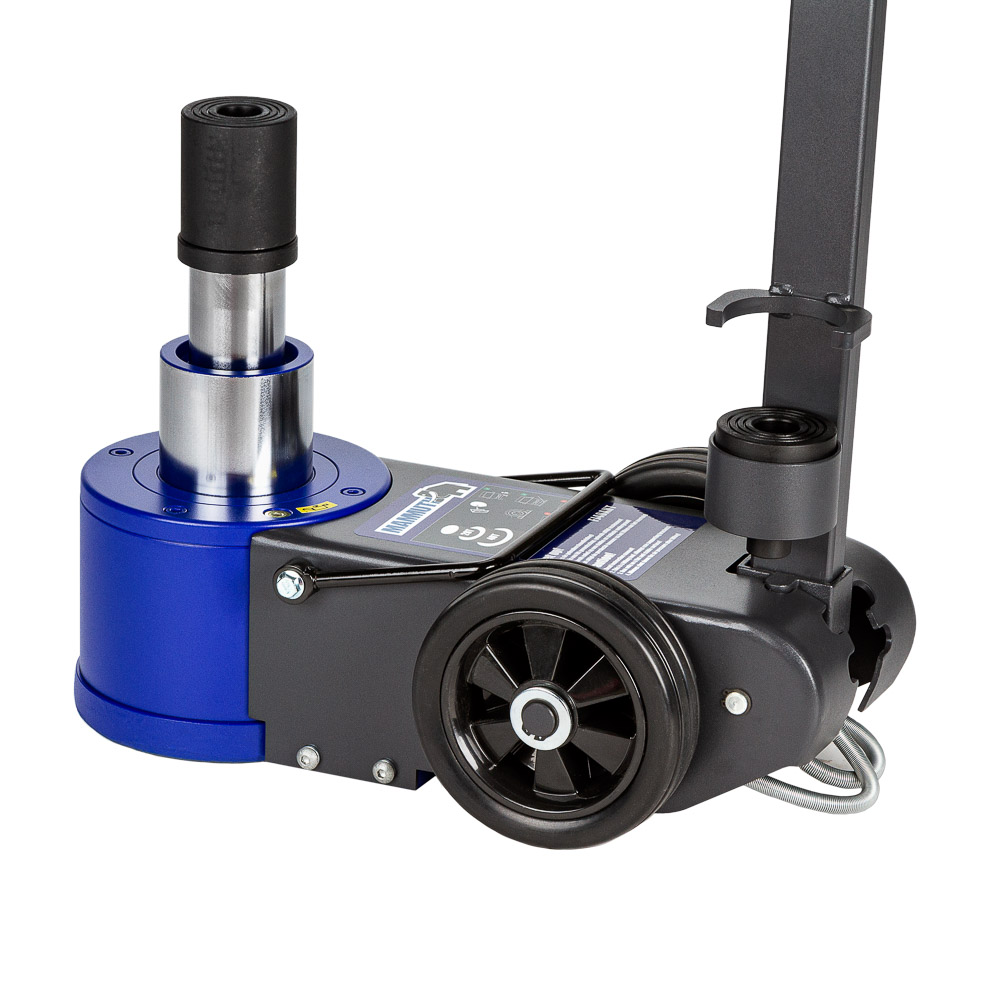

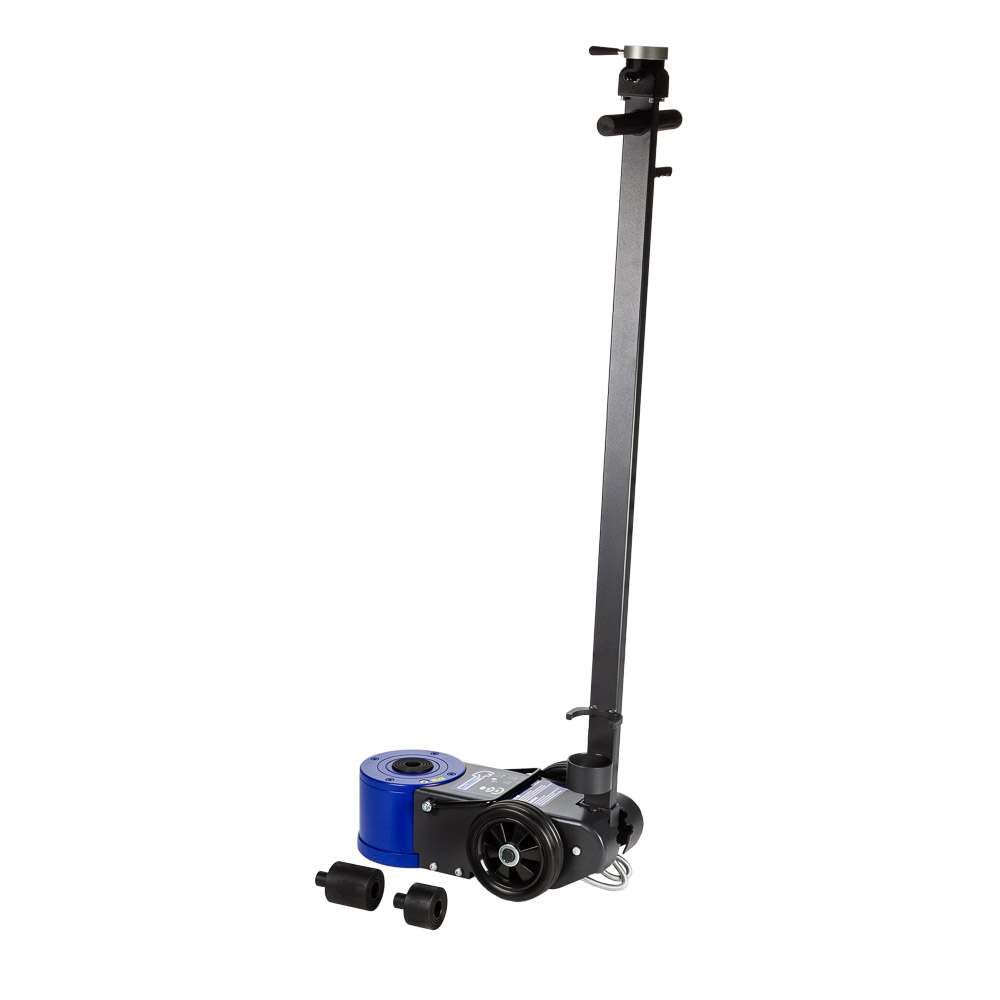

Includes 2 height adapters: Supplied with two adapters of 45 mm and 70 mm height.
Technical specifications
- Material = Steel
- Lifting capacity = 40 ton / 20 ton
- Lifting height min. = 150 mm
- Lifting height max. = 409 mm
- Platform dimensions = ø70 mm
- Handle length = 1300 mm
- Wheel material = Rubber/polypropylene
- Wheel diameter = ø165 mm
- Working air pressure = 9 - 12 bar
- Air consumption = 300 L/min
- Air connection = 1/4" BSP
- Oil capacity = 1 L
- Oil type = OHCH15V

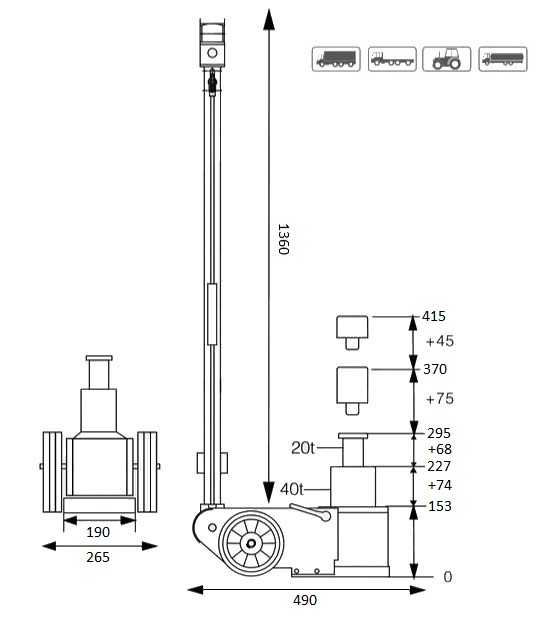

Dimensions and weights
- Weight =48.0Kg
- Product weight =44.0Kg
- Length =1390.0mm
- Width =280.0mm
- Height =320.0mm
- Product Length =494.0mm
- Product Width =268.0mm
- Product Height =150.0mm
