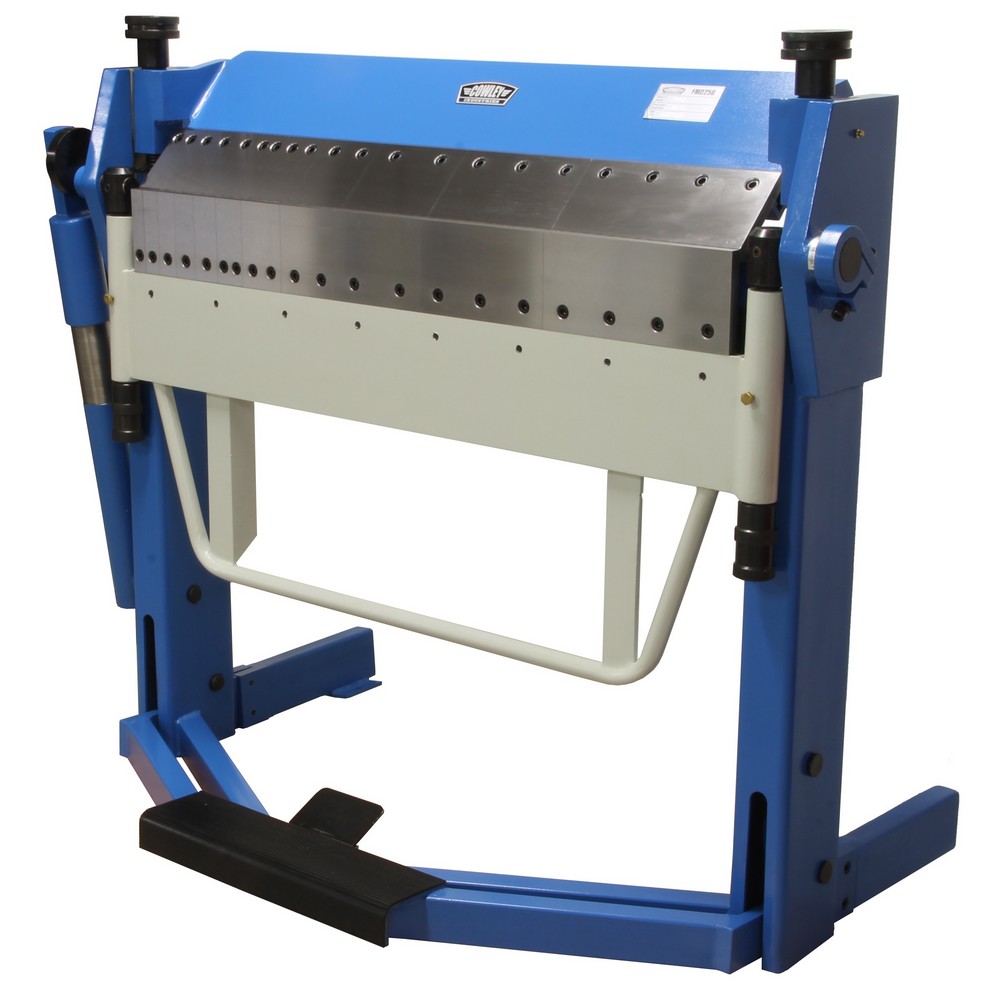

Folding machine 2mm 1020mm
Product Code: FM025D
EAN: 8720028044849
PRODUCT DESCRIPTION
Pan & box brake segments with footpedal
- max. working length = 1020mm
- sigment size left to right:
25mm 30mm 35mm 40mm 45mm 50mm 75mm 100mm 150mm 270mm
- sigment height = 120mm
- max. thickness = 2mm
- folding angle = 0 - 135 degrees
- max. clamping bar lift = 47mm
- double folders
- nice backgauge
- clamp by foot control
Technical specifications
Dimensions and weights
- Weight =350.0Kg
- Product weight =320.0Kg
- Length =1460.0mm
- Width =620.0mm
- Height =1310.0mm
- Product Length =1350.0mm
- Product Width =850.0mm
- Product Height =1280.0mm
