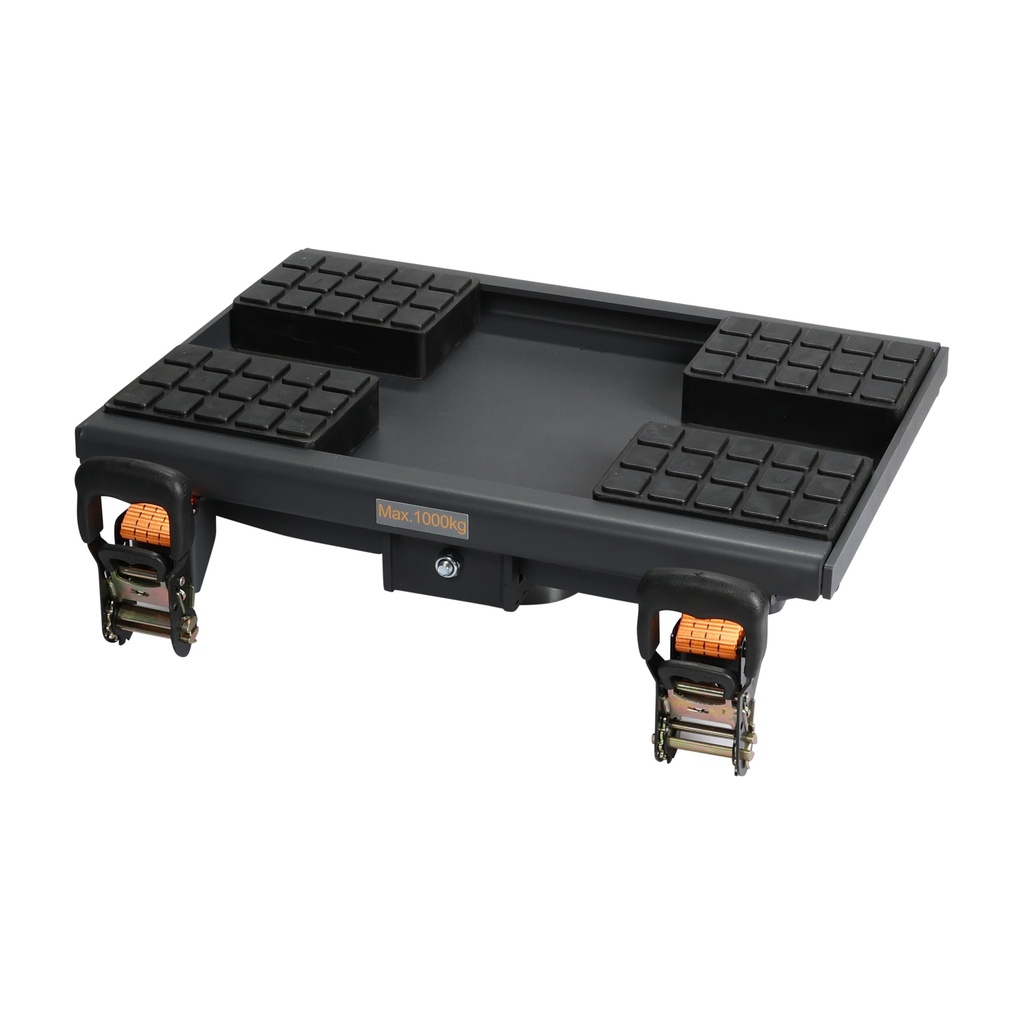

[GBSF15M] Falco gearbox support for pit jacks (PK15 / PK15L / PK15M)

€ 0.00 € 125.00

  • Load capacity
  • Axle size
  • Tiltable mounting plate (10°)
  • Magnetic rubber pads
  • Includes ratchet straps
  • Compatible with Falco PK15, PK15L and PK15M

Lifts / Pit jacks

Product Code: GBSF15M

EAN: 8720028141302

PRODUCT DESCRIPTION

This robust Falco gearbox support is designed as an attachment for various pit jacks, including models PK15, PK15L, and PK15M. With a load capacity of up to 1000 kg, it provides safe support during the mounting or removal of gearboxes in professional workshops.

Thanks to the 10° tilt adjustment in all directions, the gearbox position can be aligned with precision, simplifying installation and removal. Four magnetic rubber pads protect both the support surface and the gearbox from damage. The included ratchet straps ensure the gearbox is securely held in place.

Key features:

  • Tiltable mounting plate (10°)

For precise multi directional alignment.

  • Magnetic rubber pads

Prevent damage to components.

  • Includes ratchet straps

For safe and stable securing of the gearbox.

  • Compatible with Falco PK15, PK15L and PK15M

Mounts easily onto the cylinder of these pit jack models.

Technical specifications

  • Load capacity = 1000 kg
  • Axle size = 60 mm

Dimensions and weights

  • Weight =29.6Kg
  • Product weight =28.0Kg
  • Length =556.0mm
  • Width =453.0mm
  • Height =207.0mm
  • Product Length =535.0mm
  • Product Width =380.0mm
  • Product Height =170.0mm
