Product Code: HA1
EAN: 8720028063413
PRODUCT DESCRIPTION

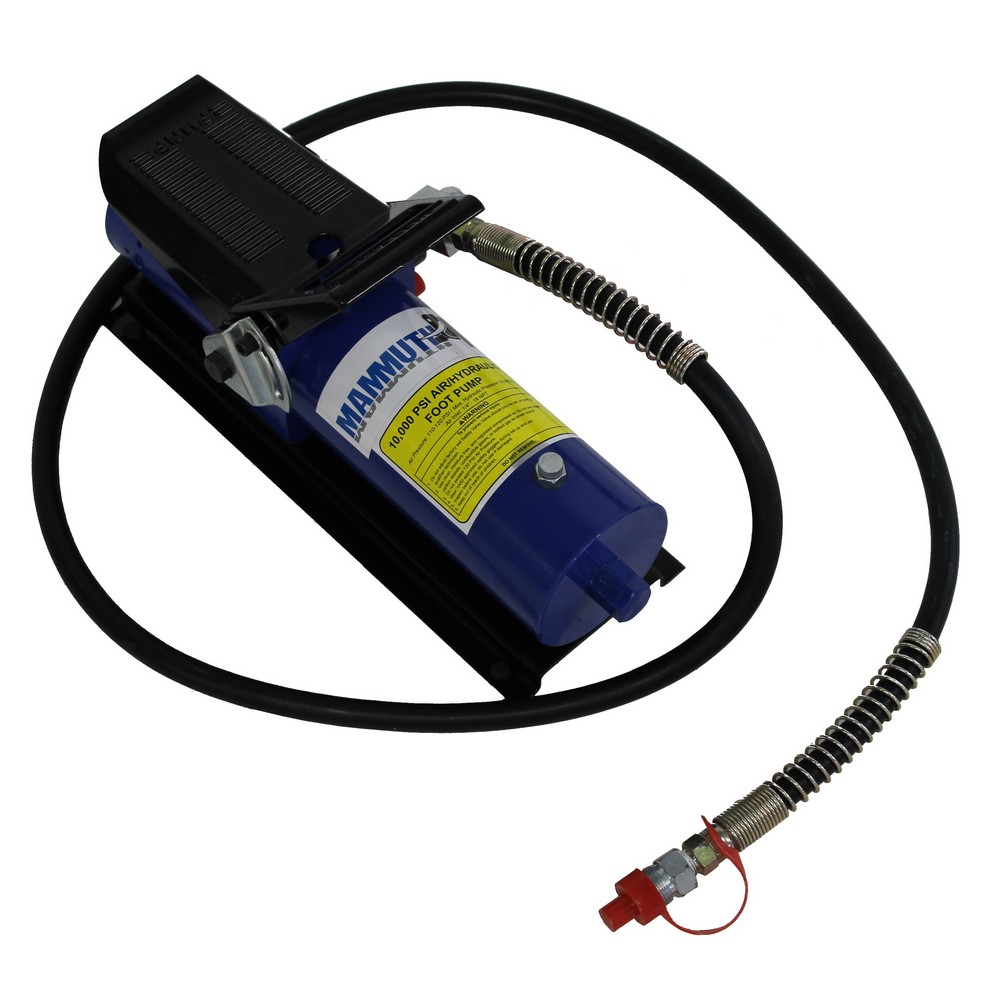

Hydraulic air pump
- capacity = 680ml
- pressure = 700 bar
- inlet port thread = 1/4"-18NPT
- outlet port thread = 1/4"-18NPT
- input air pressure = 7 - 8,3 bar
- output flow rate no load = 0,4L/min
- output flow rate with load = 0,12L/min
Technical specifications
Dimensions and weights
- Weight =8.92Kg
- Product weight =8.0Kg
- Length =380.0mm
- Width =175.0mm
- Height =195.0mm
- Product Length =370.0mm
- Product Width =170.0mm
- Product Height =185.0mm
