- User friendly
- Compact & sturdy
- Small design, big pressure
Product Code: HA3
EAN: 8720028076208
PRODUCT DESCRIPTION

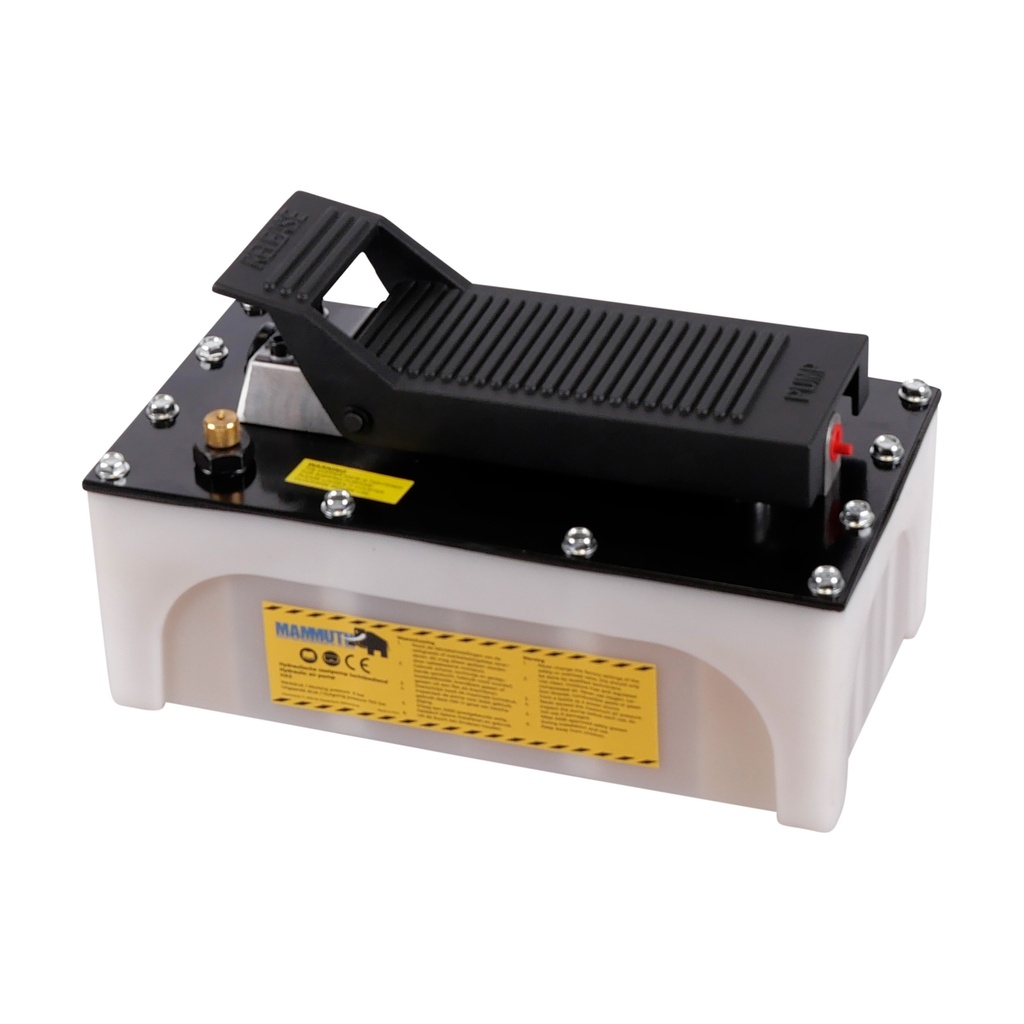

Hydraulic foot pump air operated
This hydraulic foot pump from Mammuth delivers a pressure of 690 bar. The sturdy compact foot-operated design ensures that the operator has his hands free while pumping and unloading the load.
Technical specifications:
- working pressure = 6-12 bar
- outgoing pressure = 690 bar
- air inlet connection = 1/4"-18NPT
- outlet connection = 3/8"-18NPT
- oil capacity = 3.2 liter
Technical specifications
Dimensions and weights
- Weight =9.0Kg
- Product weight =8.3Kg
- Length =375.0mm
- Width =225.0mm
- Height =205.0mm
- Product Length =315.0mm
- Product Width =173.0mm
- Product Height =190.0mm
