8 meter steel cable
Roll-off safety
Automatic brake
Including pulley
Product Code: HC0100E
EAN: 8720028076185
PRODUCT DESCRIPTION

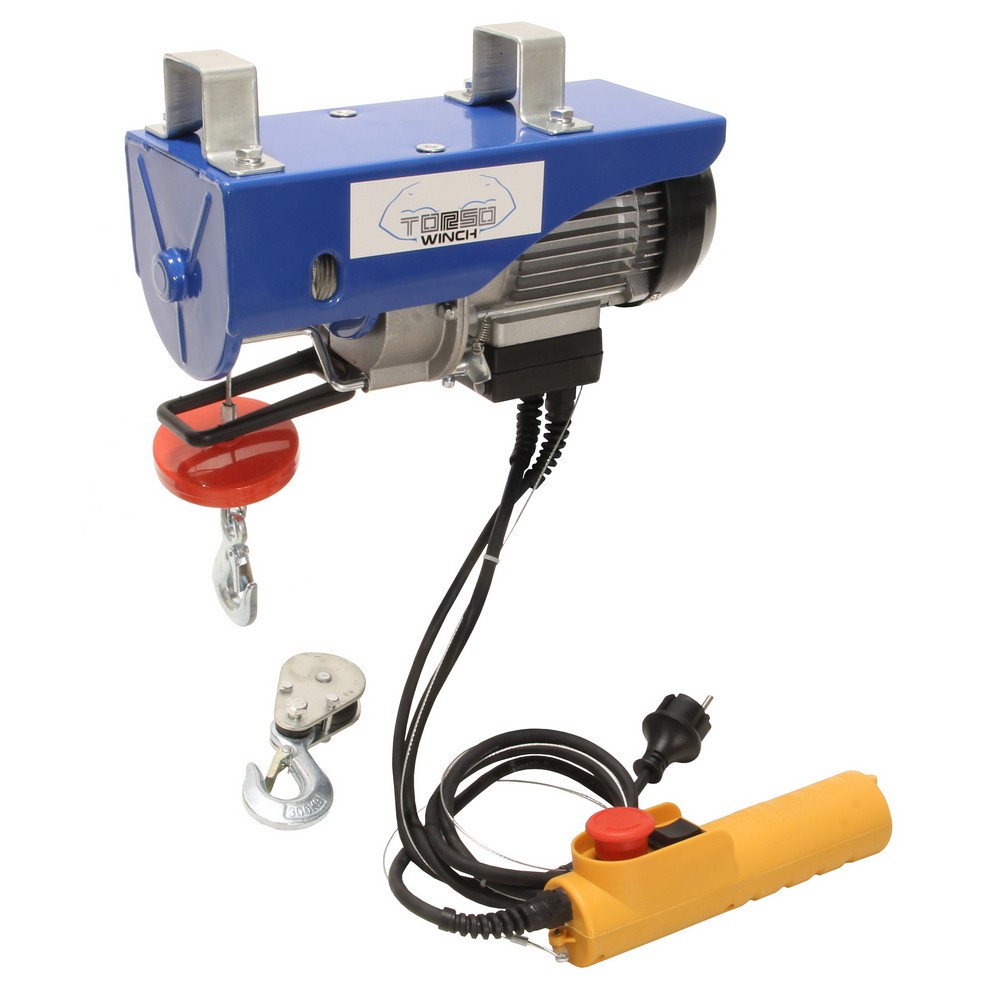

Electric hoist / hoisting winch / electric winch
This lightweight electric hoist is ideal for all kinds of lifting work in workshops, garages and warehouses. With the brackets the winch can easily be attached to a swivel arm for example.
load capacity = 50kg / 100kg
lifting height = 8m / 4m
lifting speed = 8mpm / 4mpm
cable length = 8m
cable diameter = 2,5mm
length control cable = 1,5m
cable break resistance = 300kg
service = S3 20%-10min
voltage = 230V - 50Hz
power = 200W
bolt to bolt length = 145mm
bolt to bolt width = 60mm
Technical specifications
Dimensions and weights
- Weight =5.63Kg
- Product weight =4.9Kg
- Length =320.0mm
- Width =150.0mm
- Height =240.0mm
- Product Length =250.0mm
- Product Width =95.0mm
- Product Height =190.0mm
