18 meter steel cable
Roll-off safety
Automatic brake
Including pulley
Product Code: HC0200E
EAN: 8720028063338
PRODUCT DESCRIPTION

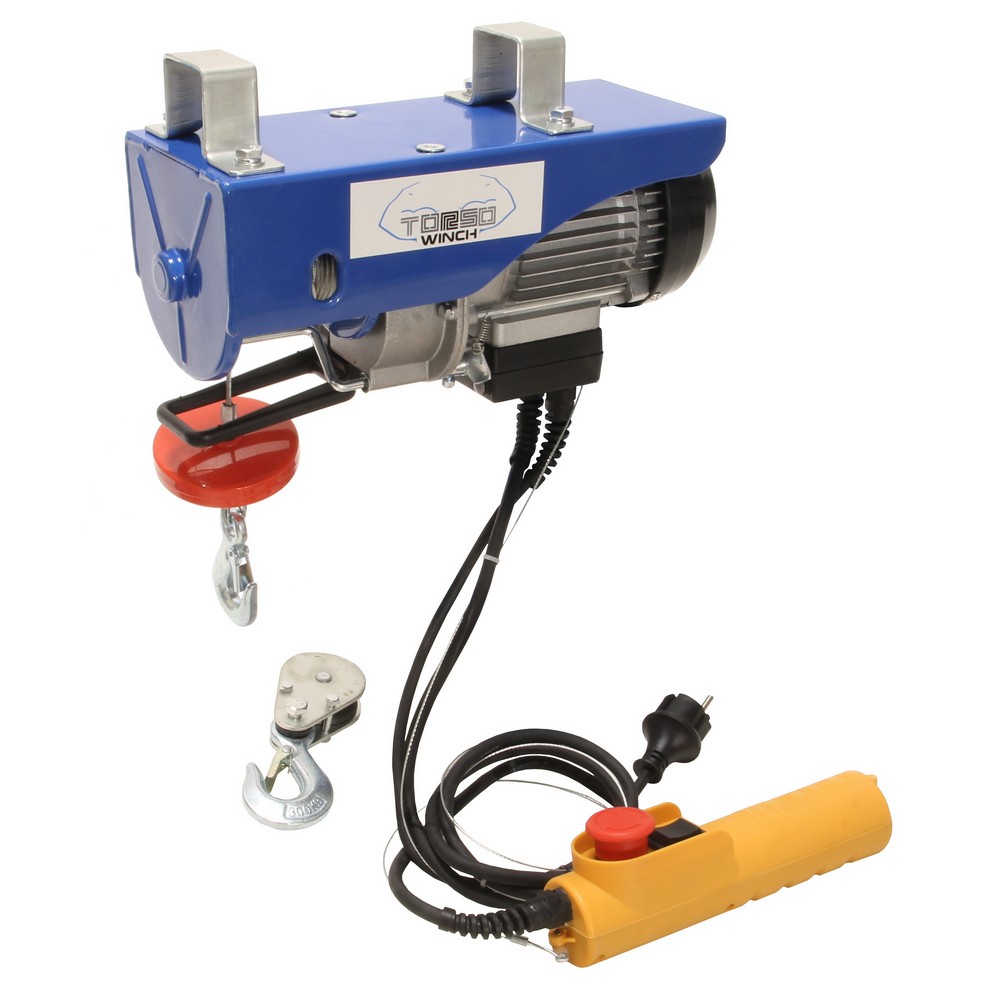

Electric hoist / hoisting winch / electric winch
This lightweight electric hoist is ideal for all kinds of lifting work in workshops, garages and warehouses. With the brackets the winch can easily be attached to a swivel arm for example.
load capacity = 100kg / 200kg
lifting height = 18m / 9m
lifting speed = 8mpm / 4mpm
cable length = 18m
cable diameter = 3mm
length control cable = 1,5m
cable break resistance = 750kg
service = S3 20%-10min
voltage = 230V - 50Hz
power = 450W
bolt to bolt length = 190mm
bolt to bolt width = 90mm
Technical specifications
Dimensions and weights
- Weight =13.0Kg
- Product weight =10.0Kg
- Length =350.0mm
- Width =145.0mm
- Height =240.0mm
- Product Length =320.0mm
- Product Width =135.0mm
- Product Height =230.0mm
