Wireless control up to +/- 35 meters
18 meter steel cable
Roll-off safety
Automatic brake
Comes with a pulley
Product Code: HC0200W
EAN: 8720028093823
PRODUCT DESCRIPTION

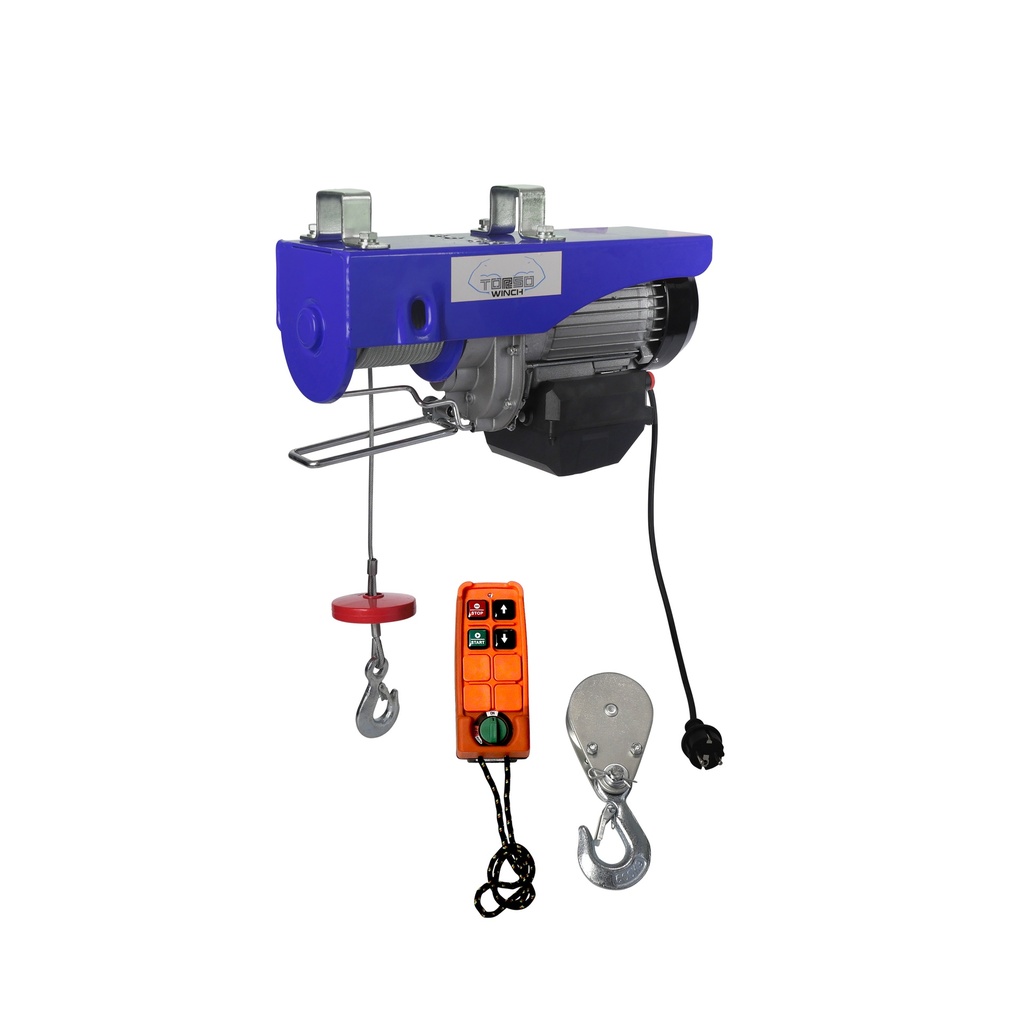

Electric hoist / hoisting winch / electric winch
This Torso lightweight electric hoist is ideal for all kinds of lifting work in workshops, garages and warehouses. With the brackets the winch can easily be attached to a swivel arm for example.
Using the wireless control, all the problems which usually occur due to the short operating cable, are history.
Technical specifications:
load capacity = 100kg / 200kg
lifting height = 18m / 9m
lifting speed = 8m/min / 4m/min
cable length = 18m
cable diameter = 3mm
cable break resistance = 500kg
motor power = 450W
voltage = 230V - 50Hz
mounting size center to center length = 190mm
mounting size center to center width = 90mm
Technical specifications
- Lifting capacity = 100 kg / 200 kg
- Voltage = 230V / 50 Hz
- Lifting height max. = 18 m / 9m
- Lifting speed loaded = 8m/min. / 4m/min
- Rope diameter = 3 mm
- Cable length = 18 m
- Mounting size center to center width / length = 90 mm / 190 mm
- Cable break resistance = 500 kg
- Motor power = 450 W
Dimensions and weights
- Weight =11.0Kg
- Product weight =10.0Kg
- Length =405.0mm
- Width =205.0mm
- Height =275.0mm
- Product Length =315.0mm
- Product Width =130.0mm
- Product Height =210.0mm
